Thermal Dynamics ULTRA-CUT 100 User Manual

Manual No. 0-4819 3-39 INSTALLATION

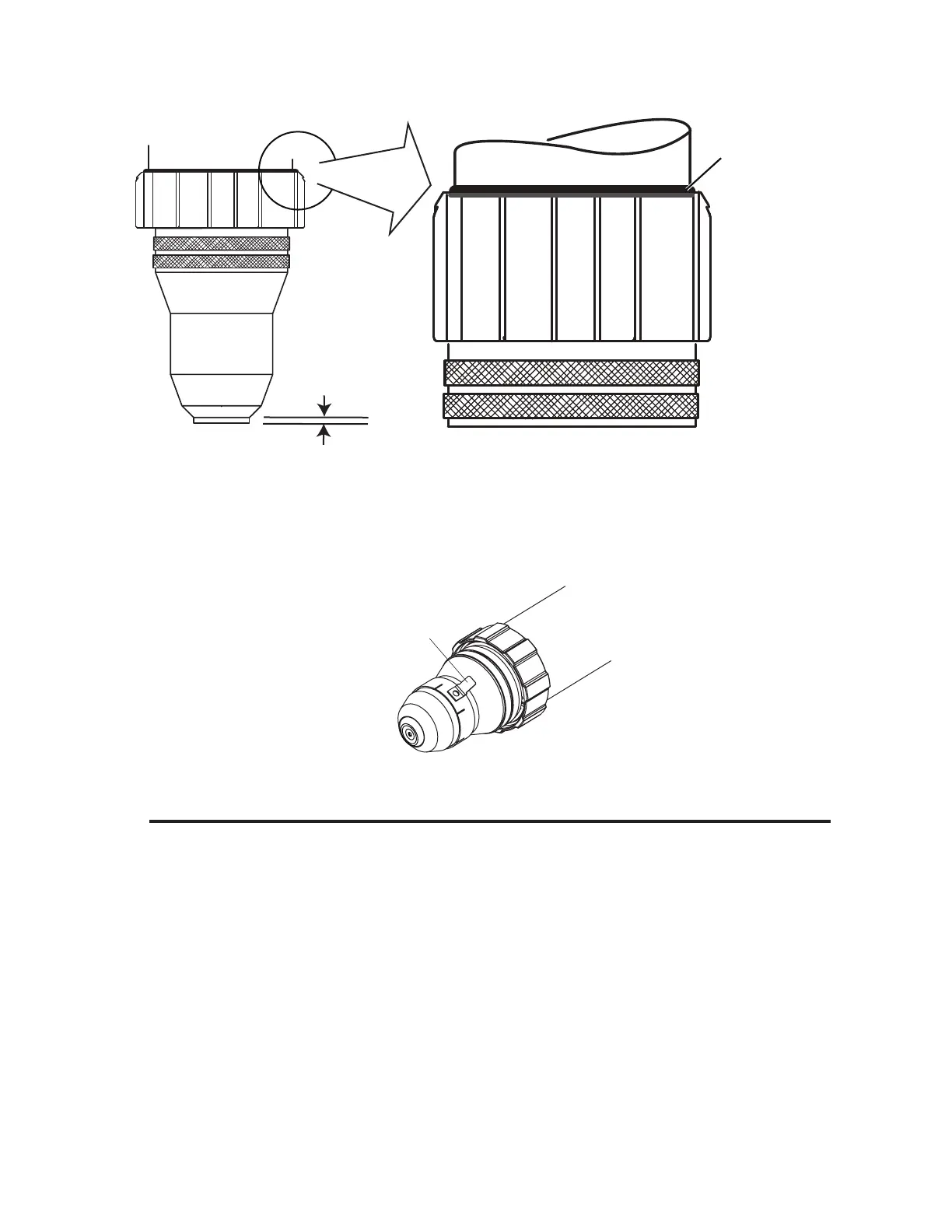

Torch Head O-Ring
Torch Head
Art # A-07202
0.063 - 0.083"
(1.6 - 2.1 mm)
Protrusion
Installing Assembled Cartridge Onto Torch Head
6. Slide the ohmic clip over the shield cup if using ohmic torch height sensing.
A-03393
Ohmic Clip
7. Connect the wire lead from the height finder to the ohmic clip if using ohmic torch height sensing.
NOTE
Ohmic height sensing is not recommended with water shield. Water on the plate interferes electrically with ohmic
sensing circuits.
