3-12
AXLE ASSEMBLY 3.5
C3813
C3814
C3671
C3815

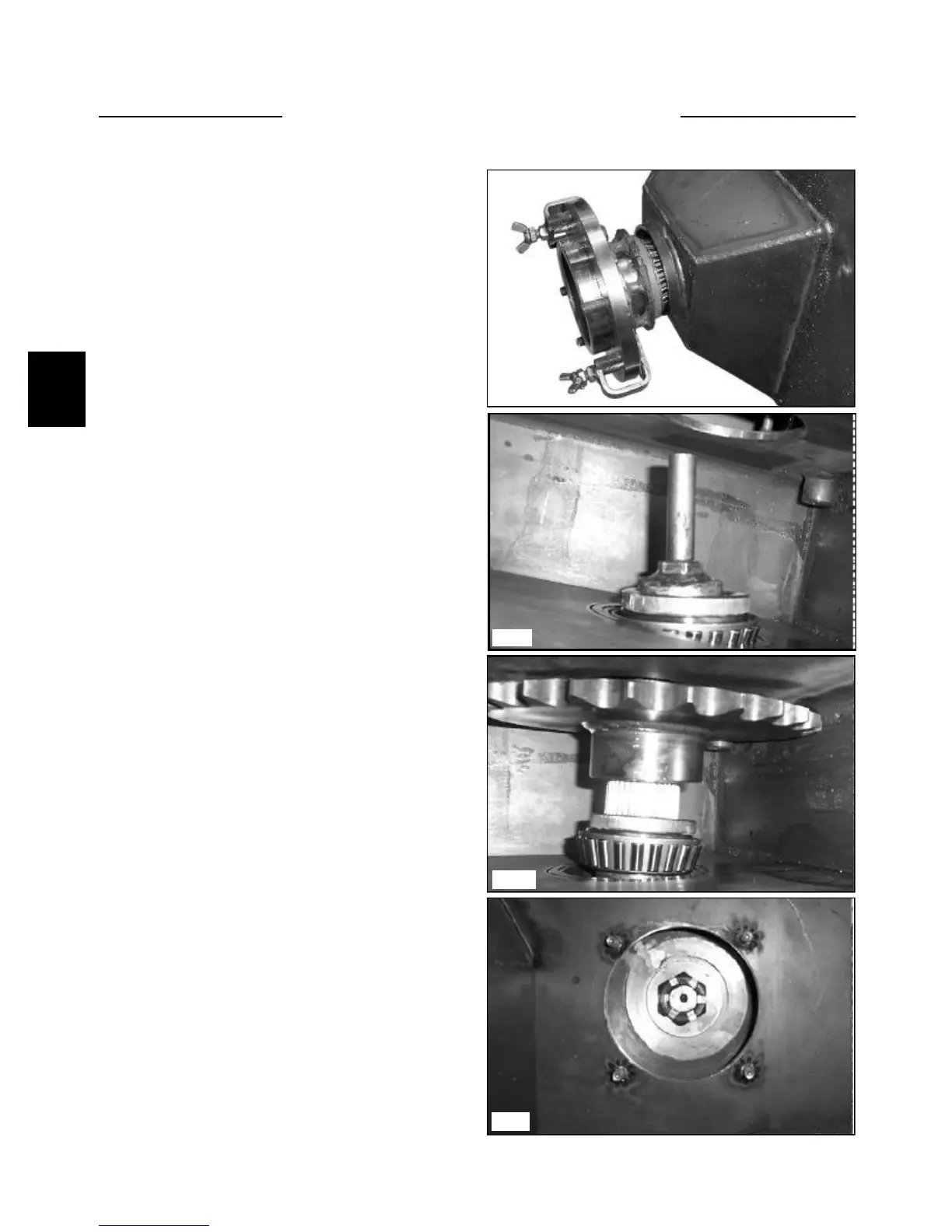

13 Start the axle into the drive sprocket. Place the small
axle washer and castle nut onto the threaded end of the
axle. (fig. C3815)
12 Place the rear (inside) axle bearing onto the axle.
(fig. C3813 & fig. C3814)
10 Guide the axle into the final drive housing.
11 Place 2 seal installation tools, Thomas P/N 958674,
equally spaced around the axle flange, behind the seal.
(fig. C3671). This special tool must be used to properly
locate the seal into the final drive housing.
