Lubrication System
Engine Oil and Filter:
Engine oil and filter changes should be made with the
engine warm. Change the engine oil every 75 hours and
the oil filter every 150 hours of operation.
Park the loader on a level surface, lower the boom arms,
engage the parking brake and shut off the engine.
1 Access the engine compartment by opening the rear
door and lifting the engine cover. (fig. C3610)
7-2
C3610
C3612
C3611

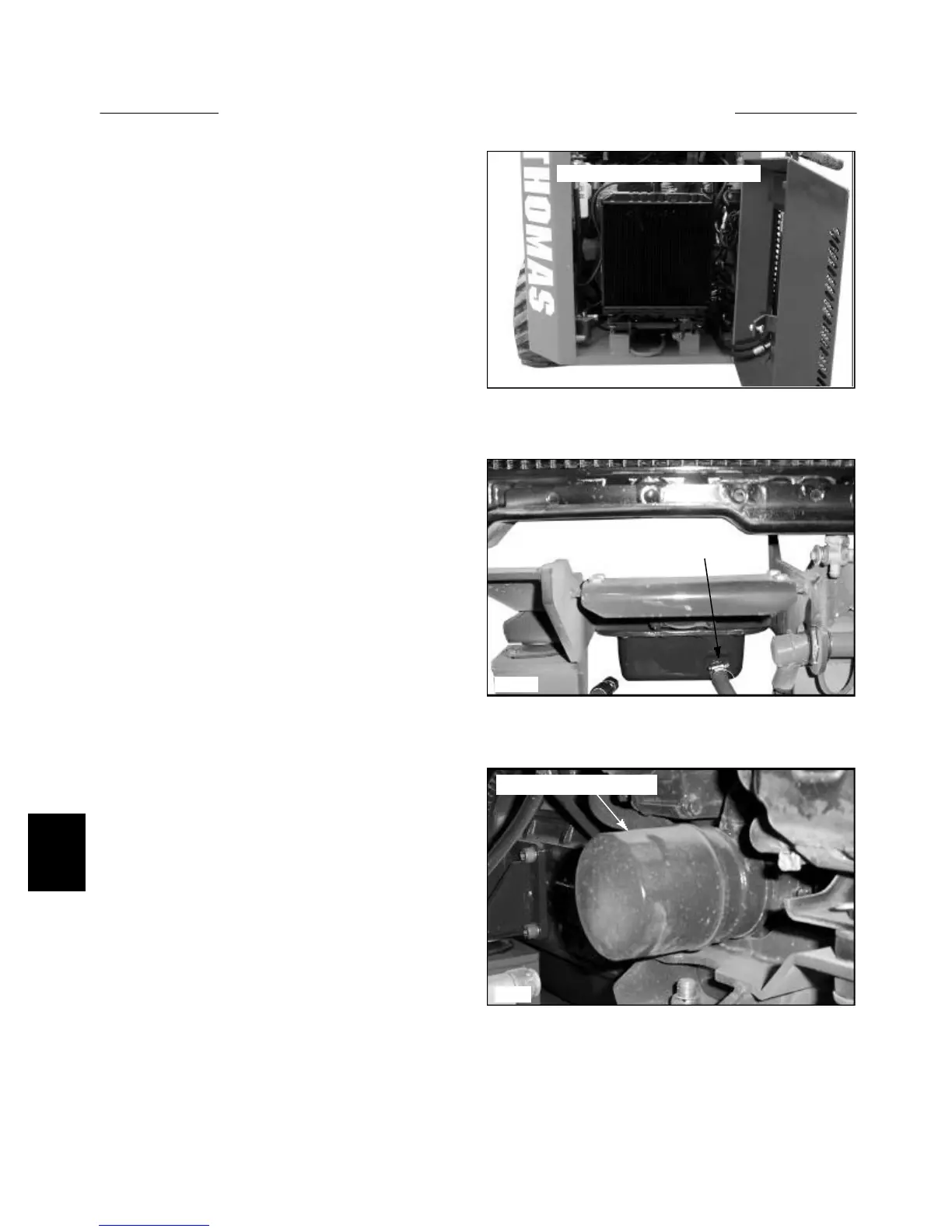

ENGINE MAINTENANCE 7.1
Oil pan drain
Engine oil filter location
Access the engine compartment
5 Lubricate the new oil filter O-ring seal with engine
oil and install to the engine hand tightened.
6 Replace the oil pan drain plug. Make sure the seal is
still in place and in good condition. Tighten the oil pan
drain plug not exceeding 25 ft/lbs (34 Nm.)
3 Remove the oil filter using an appropriate filter
wrench. If the oil filter area is excessively dirty, clean
around the filter area before removing the oil filter to
prevent contaminant’s reaching the engine lubricating
system. (fig. C3612)
4 Check the oil filter mounting adapter area after
removing the oil filter and check for dirt on the sealing
surface and to make sure the oil filter O-ring seal has not
stuck to the oil filter adapter.
2 Remove the oil pan drain plug located at the bottom
of the engine oil pan to drain the oil. Have a catch con-
tainer ready to contain approximately 8 liters ( 8.5 qts) of
fluid. (fig. C3611)
