Fuel System
Fuel Filter:
The fuel filter is a spin on type on the inner side of the
oil tank attached to a bracket and is located in the engine
compartment on the engine mounting bracket. Change
the fuel filter every 400 operating hours.
Loader S / N’s LE008500 ~ 8799 have the filter mounted
to the left hand side of the engine. S / N’s LE008800
onward are mounted to the right hand side of the engine.
To change the fuel filter: Park the loader on a level sur-
face, lower the boom arms, engage the parking brake
and shut off the engine.

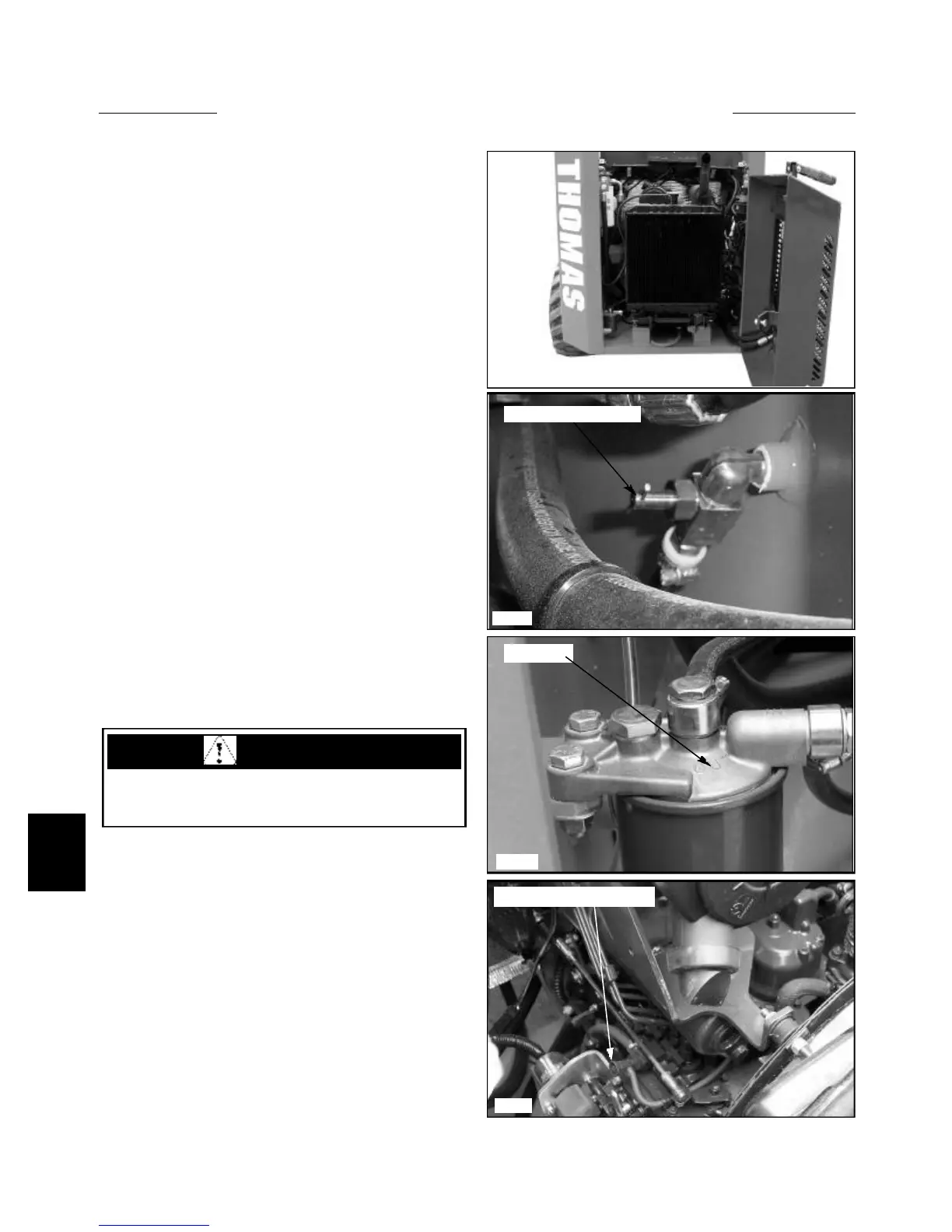

1 Access the engine compartment by opening the rear
door and lifting the engine cover. (fig. C3610)
2 Close the fuel line shut off petcock located on the
lower right hand side of the fuel tank. (fig. C3615) This
will prevent fuel loss due to siphoning.
3 Remove the fuel filter using a filter wrench. (fig.
C3616) Check to make sure the fuel filter O-ring seal
has not stuck to the filter adapter mount.
4 Lubricate the new fuel filter O-ring seal with light
oil. Tighten the filter to the adapter mount hand tight.
5 Open the fuel line shut off petcock.
7-4
C3610
C3617
C3616
C3615
Engine air bleed petcock
Fuel filter
6 Open the engine fuel line / air bleed petcock located
just to the left of the fuel injection pump. (fig. C3617)
Start the engine and allow to idle for 5 minutes. Close
the fuel line / air bleed petcock.
If the engine fails to continue operating, it may be neces-
sary to bleed the fuel system of air after changing the
fuel filter or running out of fuel. See Bleeding the Fuel
System, next page.
Fuel shut off petcock
ENGINE MAINTENANCE 7.1
When servicing the fuel system, stay away from
open flame and sparks. No smoking
WARNING
