Preventative Maintenance
To keep the quick - tach locking pins and mechanism
working freely, and to prevent pin and bushing wear, the
quick tack must be lubricated every 8 hours of operations.
More often in dirty applications.
Lubricate the quick - tach as follows:
1 Remove any attachment from the loader, raise the
boom arms, engage the boom supports, engage the park-
ing brake and shut off the engine.
2 Clean any dirt build up around the linkages.
3 Lubricate the grease fittings on each of the lock pin
bushings with a good quality multi purpose lithium based
grease until excess shows. (fig. C3590)
4 Lubricate the tilt cylinder pivot pins. (fig. C3591)
6-3

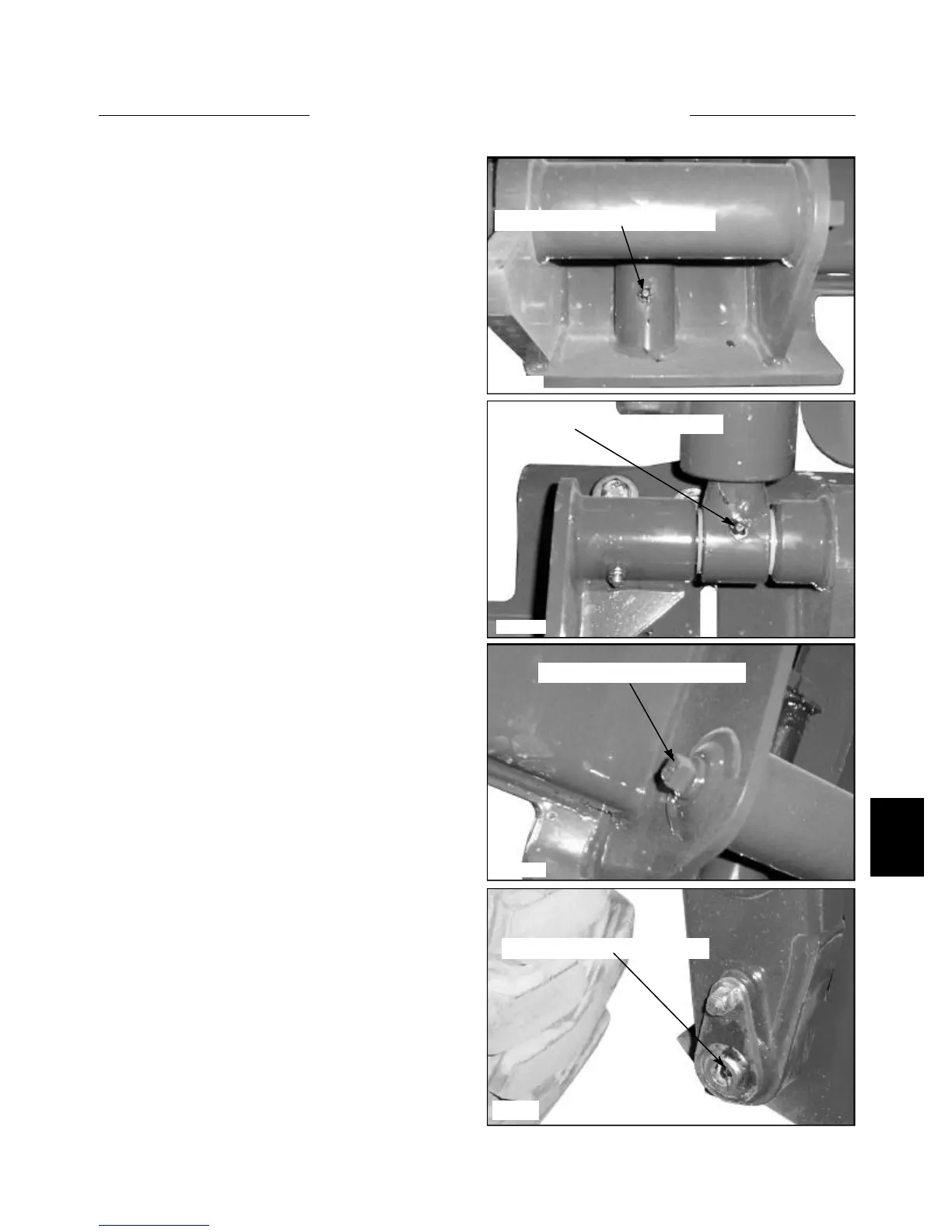

C3590
C3593
C3592
C3591
Grease lock pin assembly (L & R)
Grease tilt cylinder pivot (L & R)
Grease boom pivot pins (L & R)
Grease boom pivot pins (L & R)
5 Lubricate the lower boom pivot pins. (fig. C3592 and
C3593)
QUICK - TACH 6.1
