4-14

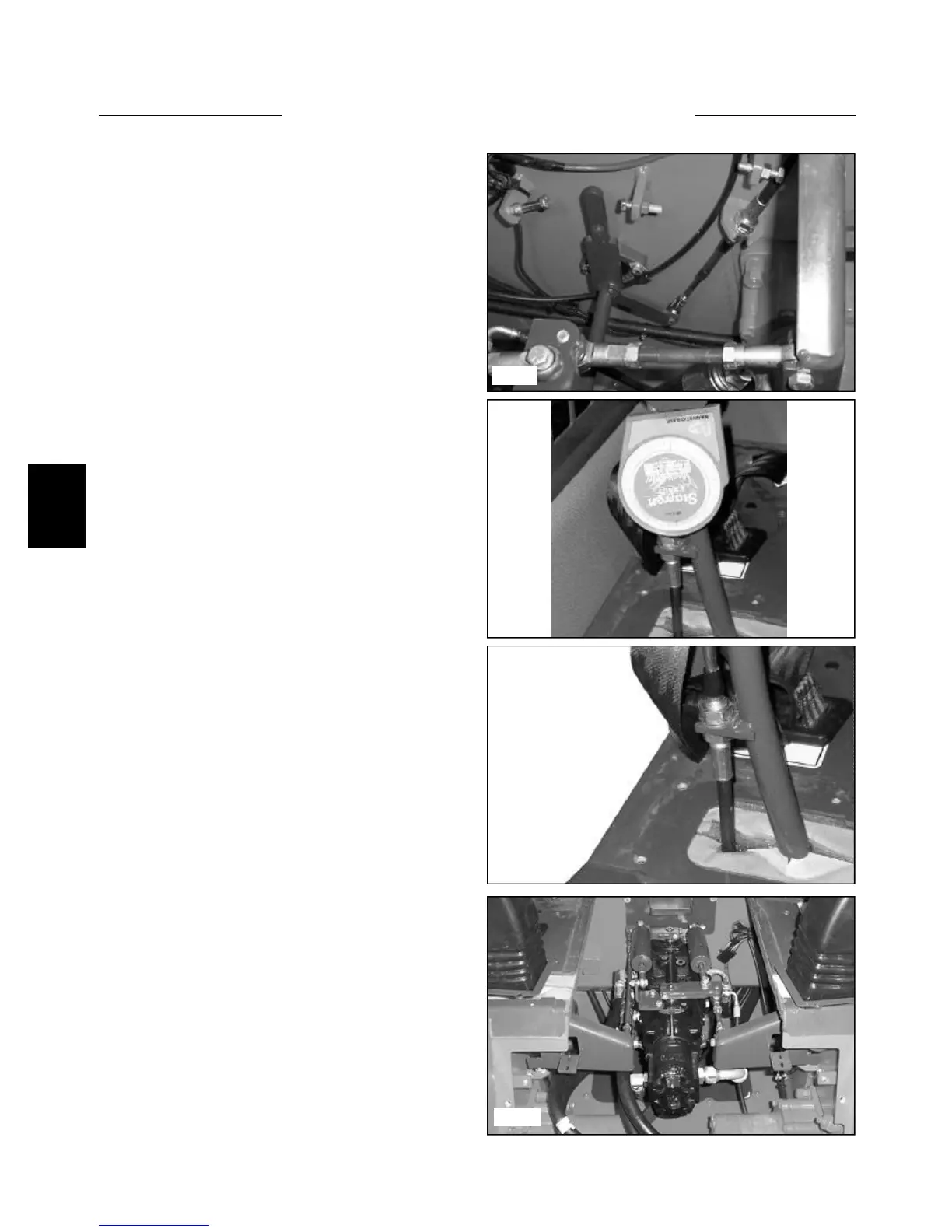

Angle Adjustment
After changing the control cable the control lever angle
will need to be verified and / or adjusted to provide oper-
ator comfort and proper pedal travel clearance.Ensure the
loader is parked on a level surface.
1 Make sure the cable ends are screwed onto the cable
threads a minimum of 3/8’’ (6mm).
2 Place an angle finder on the top of the main tubing to
find the base measurment. Take note of the reading.
3 Place the angle finder on the control lever as shown
(fig. C3877). Note the reading. The correct angle is 8º + /
- 1º.
4 Adjust the angle by moving the cable nuts up or
down on their mount. Adjustment may be made at the
front and / or the rear of the cable. (fig. C3848 and fig.
C3877)
5 Tighten all cable nuts and jam nuts on the cable ends.
(fig. C3833 and fig. C3848)
6 Cycle the control levers to check for travel clearance.
7 Reconect the throttle to the control lever plate. Fasten
the control lever boots to the cab. Replace seat and hydro-
static shield. (fig. C3876)
C3847
C3877
HAND CONTROLS 4.3
C3848
C3876
