Thomas 1700 - Hydrostatic Circuit

2-2
HYDROSTATIC CIRCUIT 2.1
2
C4165
High Pressure Relieved at 345 Bar (5000PSI)
Aux. Press. Relief Set at 2400 PSI (207 Bar)
System Charge Pressure 200 PSI Minimum (13.8 Bar)
Return Pressure
Suction Line (Vacuum) 4 - 6 Hg @ 160ºF (71ºC)
C
C
C
C
C
C
B
B
B
C
D
D
D
D
D
D
D
E
E
A
A

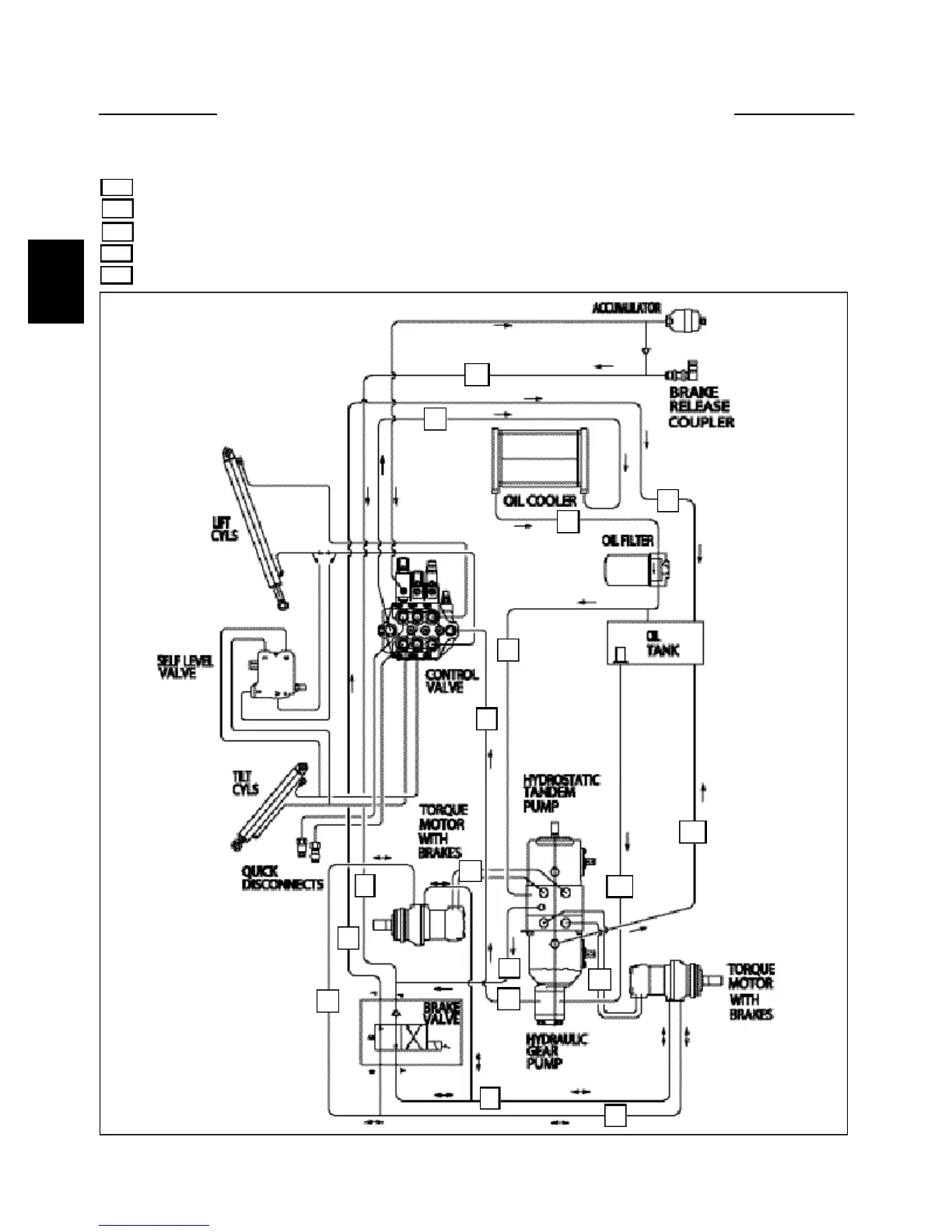

Hydrostatic Circuit and System Pressure Schematic
A
