Thomas 1700 - Hand Controls 4.3

4
HAND CONTROLS 4.3

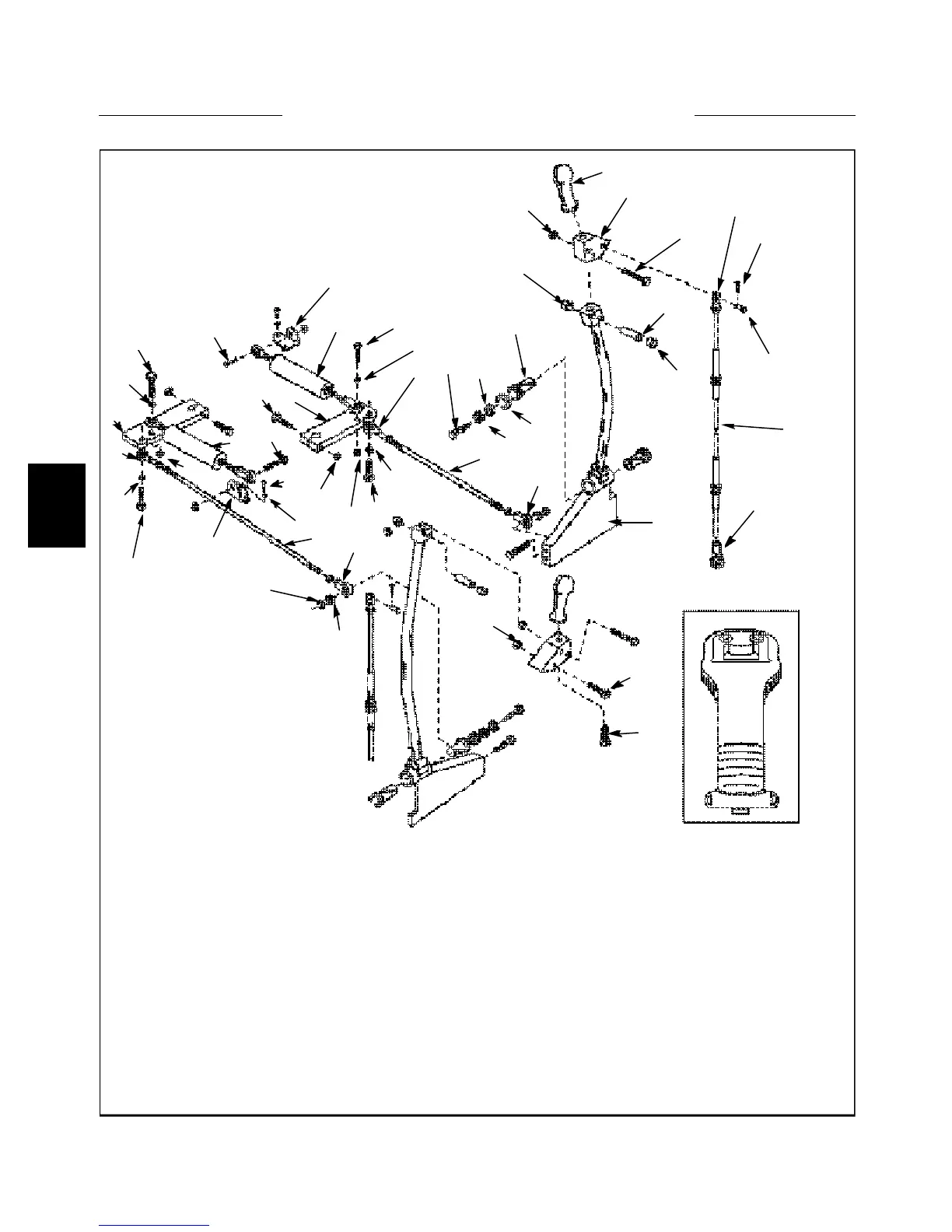

1. Ergonomic Handle
2. Lever Base
3. Hex Bolt
4. Locking Jam Nut
5. Clevis (Hand Control
Loaders Only)
6. Cotter Pin (Hand
Control Loaders Only)
7. Clevis Pin (Hand
Control Loaders Only)
8. Flange Bushing
9. Handle Spacer Tube
10. Control Lever
11. Push-Pull Cable (Hand
Control Loaders Only)
12. Rod End (Hand Control
Loaders Only)
13. Hex Bolt
14. Bolt
15. Lock Washer
16. Flat Washer
17. Fender Washer
18. Flange Bushing
19. Hydroback
20. Pintle Linkage Bar, LH
21. Pintle Linkage Bar, RH
22. Hex Bolt
23. Nylok Hex Nut
24. Hydroback Mount
25. Bolt
26. Washer
27. Pintle Lever Ass’y
28. Bolt
29. Nut
30. Lock Washer
31. Nylok Nut
32. Female Rod End
33. Female Rod End
34. Nylok Nut
35. Ergonomic Handle Bolt
36. Hex Bolt
37. Washer
