4-11

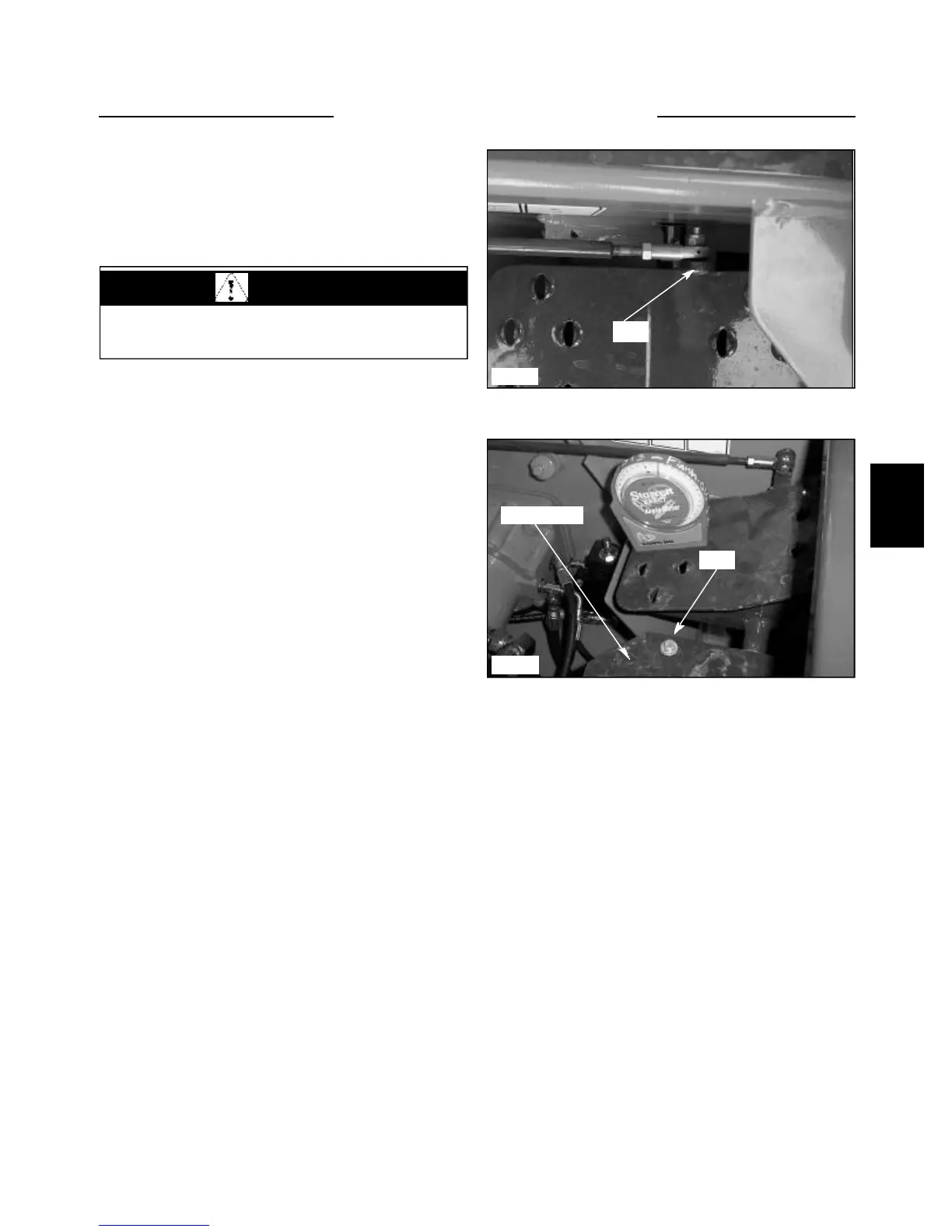

Foot Pedal Replacement
If the foot pedals or shaft need replacement due to dam-
age or wear. Each pedal has it’s own shaft.
1 Raise the boom arms, engage the boom supports and
shut off the engine.
2 Remove the seat and hydrostatic shield.
3 Remove the bolt holding the linkage rod end to the
pedal. (fig. C3563)
4 Remove bolts holding the center plate in place and
remove the plate. (fig. C3565)
5 Remove the cap screw bolt retaining the foot pedal
shaft to the side mount.
6 Remove and save any spacer washer if present.
7 Tip the inside end of the shaft up and remove the
complete pedal and shaft assembly together. Keep count
of the spacer washer used if present.
8 Replace worn parts as required. The foot pedals are
equipped with bronze oillite bushings that are pressed
into place and machined to size afterward. They are not
serviceable separately. The complete pedal must be
replaced.
9 Reinstall pedals in the reverse order. Total pedal
movement side to side, end play, should not exceed 1/8”.
C3563
Center Plate
C3565
FOOT PEDALS 4.2
WARNING
Never work under the boom arms without the boom
supports engaged.
Bolt
Bolt
