WIRING SCHEMATIC 5.2
PIN WIRE COLOR FUNCTION
1 Purple Eng. oil press. indicator
2 White Ignition (30)
3 Red / Wht Ignition (19)
4 Blk / Wht Ignition (acc)
5 Tan Ignition (50)
6 Grey Seat belt indicator
7 Grey / Wht Charge (L) indicator
8 Blue / Wht Hyd. temp. indicator
9 Org / Blue Fuel level (+) gauge
10 Red / Org Headlight
11 Brn / Wht Brake light
12 Wht / Brn Horn
13 Pple / Wht Coolant temp. indicator
14 Pink Air filter indicator

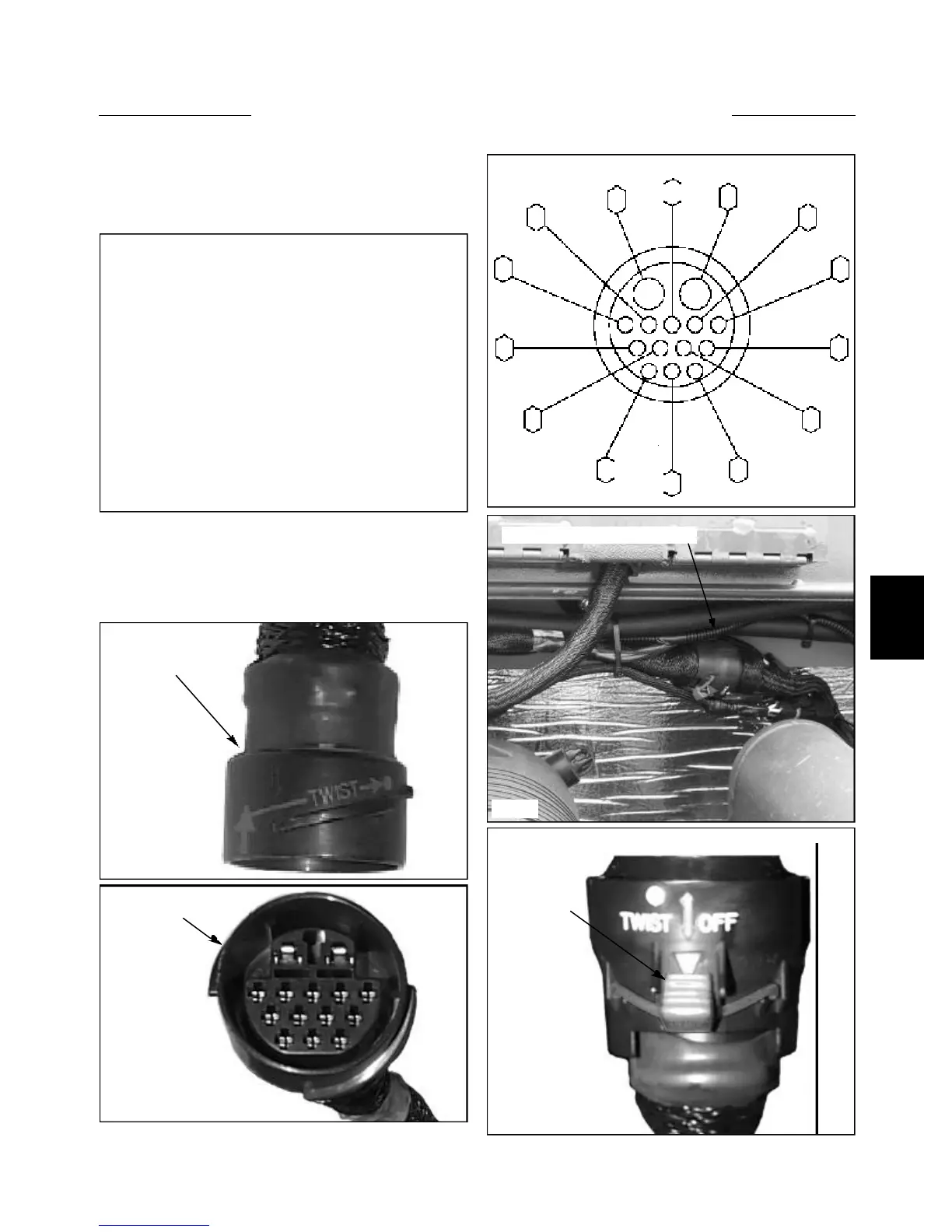

ROPS Harness Connector
Diagram C1741 Legend. Shown is the wire color and
function of each pin terminal in the connector plug.
Main harness plug connection
C1741
1
2
3
6
5
4
7
8
9
10
11
12
13
14
C3576
The photographs below and at right show the actual
ROPS harness plug connection.
To separate the main electrical harness connection, push
the locking tab in the direction of the arrow (fig. C2066)
and twist the collar clockwise to release.
Engine harness connector
C2066
Push
C2084
C2083
ROPS harness
connector
ROPS harness
connector
5-3
