Thomas 1700 - Foot Pedals 4.2

4-9
4

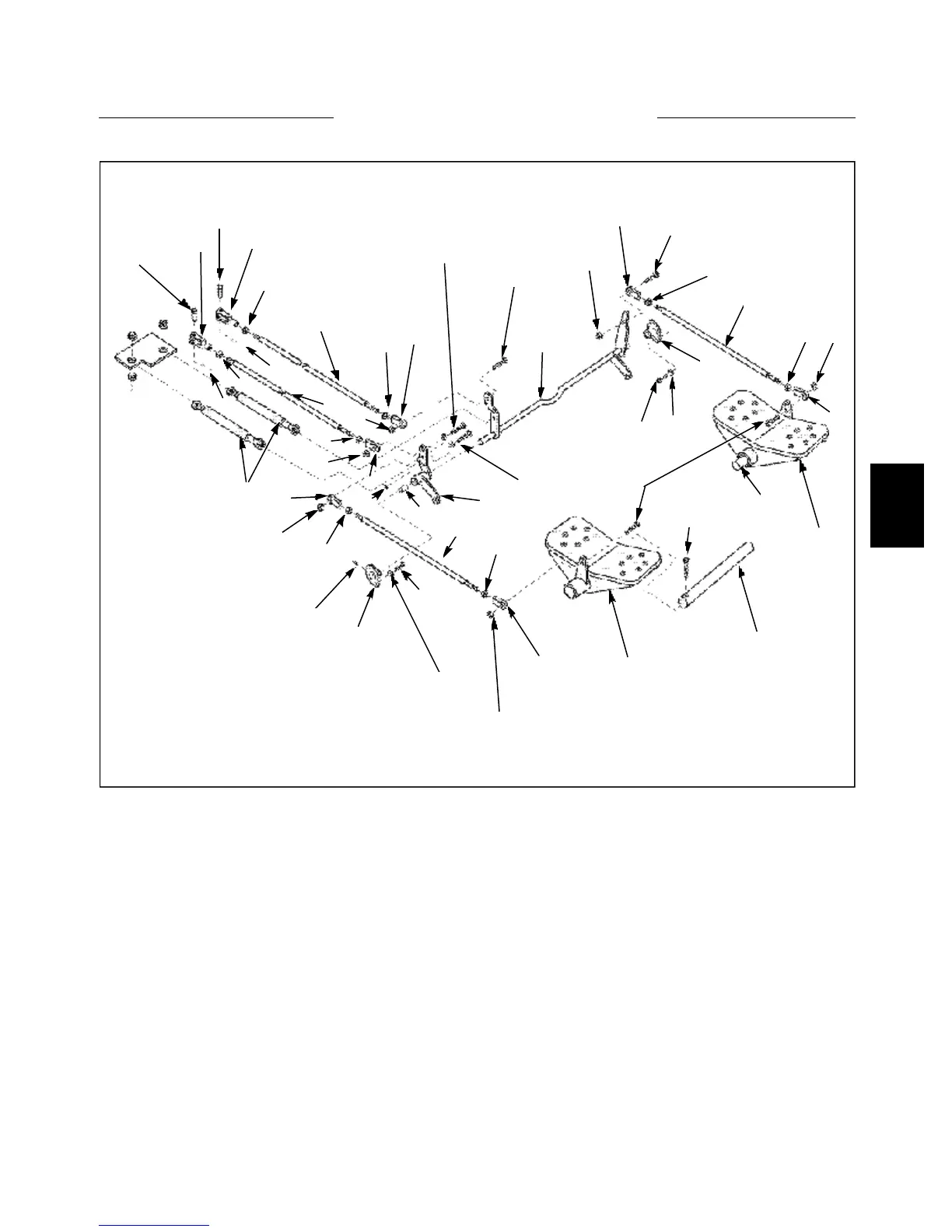

FOOT PEDALS 4.2
1
1
2
3
4
5
6
7
6
6
6
7
7
7
8
8
8
8
8
8
9
7
9
7
9
9
9
9
10
10
11
11
12
12
13
13
14
14
15
16
17
18
19
19
20
20
21
21
22
22
23
23
C3228
1. Bar, Foot Pedal Shaft
2. Screw, Cap, Hex Socket head, Stainless
3. Dampener, Self-Centering, 9 lbs.
4. Pedal, Lift Ass’y (L.H.)
5. Pedal, Lift Ass’y (R.H.)
6. Bolt, Hex
7. Nut, Nylok, Hex
8. Rod End Ass’y
9. Nut, Hex
10. Bar, Valve Control Front
11. Bearing, Flanged, 2-Bolt
12. Grease Fitting
13. Bolt, Hex
14. Washer, Lock
15. Activator, R.H. Ass’y
16. Bearing
17. Bolt, Carriage
18. Control Cross Shaft Ass’y
19. Bar, Valve Control, Rear
20. Nut, Hex
21. Clevis
22. Clevis Pin
23. Cotter Pin
