Throttle Cable Replacement

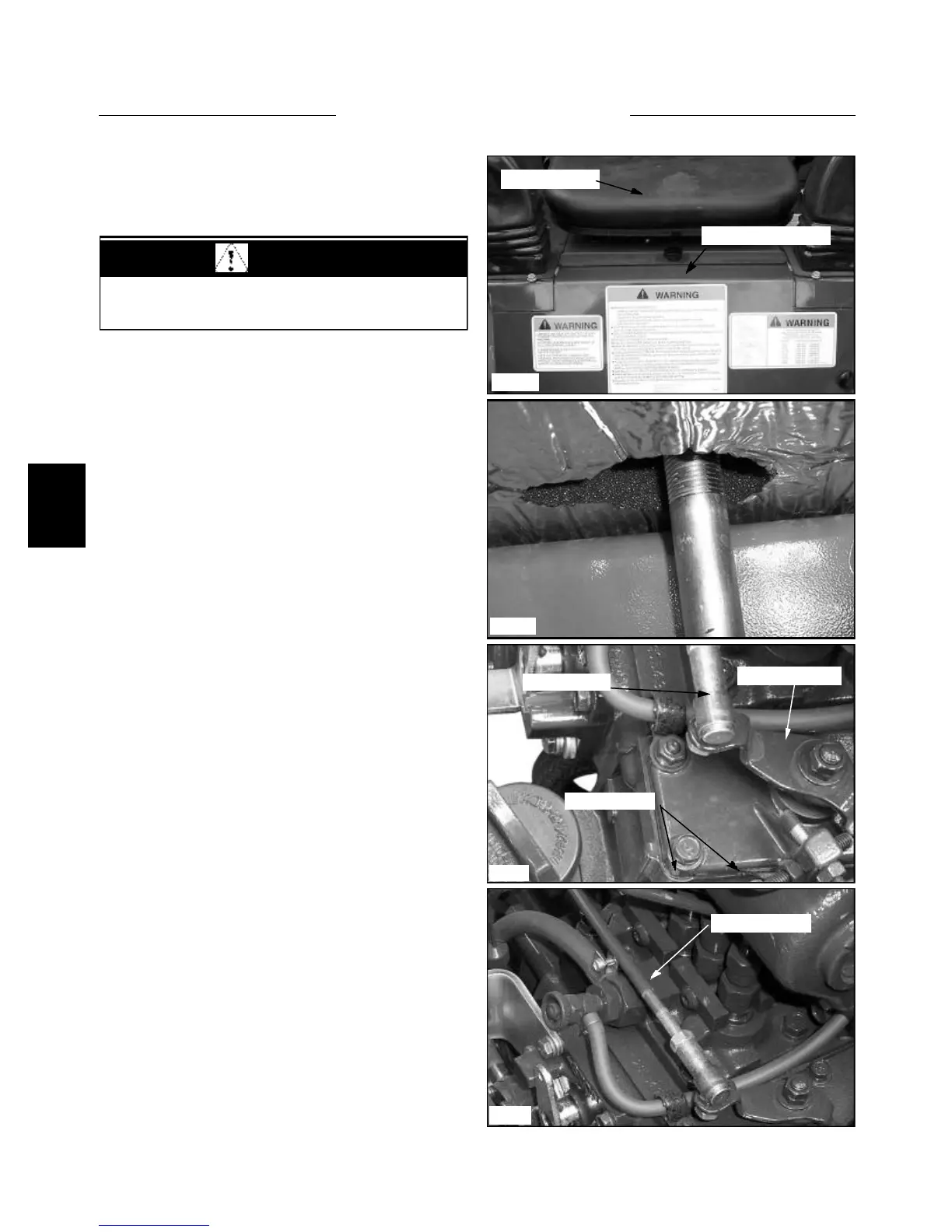

1 Raise the boom arms, engage the boom supports and
shut off the engine.
2 Remove the seat and hydrostatic shield.(fig. C3557)
3 Remove the tee handle, nut and washer holding the
assembly in place.
4 Open the rear door and unhook the throttle rod end
from the throttle pivot assembly.(fig. C3567)
5 Pull the throttle cable out toward the front of the
loader. (fig. C3570)
6 Remove the rod end left on the old throttle control
cable and transfer it to the new control cable.
7 Replace the throttle control cable in the reverse order
of above. Adjust the lock nut and tighten against the L.H.
seat support on the underside of the deck.
8 Adjust the rod end on the throttle cable to obtain full
travel.(fig. C3570)
NOTE: The throttle rod may need to be adjusted to
ensure contact of the engine lever and the limiter bolts for
highflow speed settings (up and down). (fig. C3567)
C3567
Pivot Assembly
C3557
Seat assembly
C3878
Hydrostatic Shield
Throttle End
Throttle Cable
C3570
THROTTLE 4.4
Limiter Stops
WARNING
Never work under the boom arms without the boom
supports engaged.
