5-6
PIN WIRE COLOR FUNCTION
1 Tan Starter relay
2 Blk / Wht Fuse block
3 Red / Wht Glow plug relay
4 White Circuit breaker
5 Purple Engine oil pressure
6 Pink Air filter
7 Pple / Wht Coolant temperature
8 Wht / Brn Horn button
9 Brn / Wht Brake light switch
10 Red / Org Rear light
11 Org / Blue Fuel level (+)
12 Blue / Wht Hydraulic temperature
13 Grey / Wht Alternator (L)
14 Grey Seat Belt

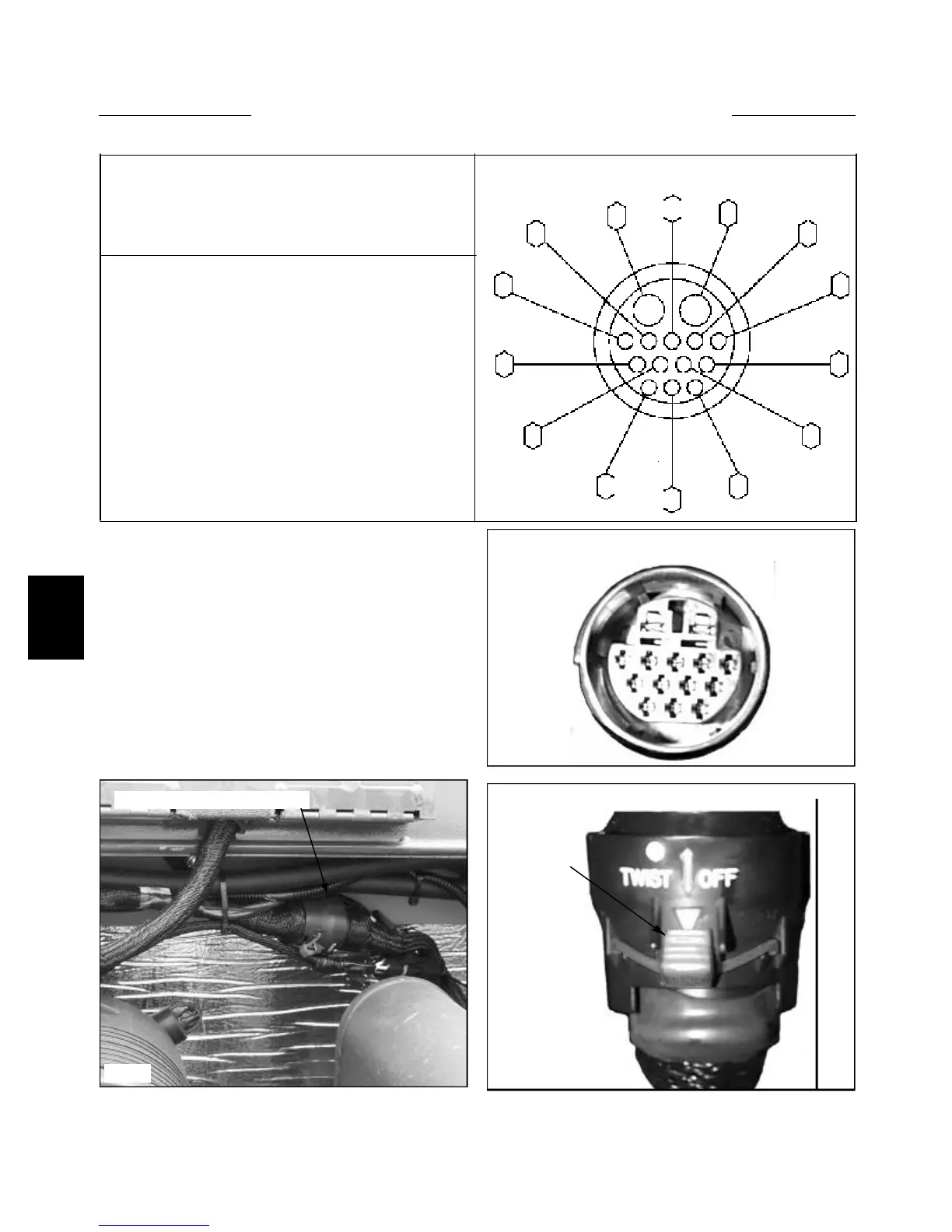

Engine Harness Connector
Diagram C1741a Legend. Shown is the wire color and
function of each pin terminal in the connector plug.
C1741a
Engine plug
Engine plug
1
2
3
4
5
6
7
8
9
10
11
12
13
14
C2065
C2066
The photographs below and at right show the actual
Engine harness plug connection.
To separate the main electrical harness connection, push
the locking tab in the direction of the arrow (fig. C2066)
and twist the collar clockwise to release.
Push
Main harness plug connection
C3576
WIRING SCHEMATIC 5.2
