Air Filter (cont’d)
3 If required, remove the safety air filter element by
pulling straight out of the air cleaner housing. (fig.
C3621)
4 After removing the air filter elements, carefully wipe
out any excess dirt from the air cleaner housing. (fig.
C3622)
5 Check the air filter element seal before installing to
the air cleaner housing. (fig. C2201) Be sure the seal is
not damaged, torn or gouged. Do not use a filter with a
damaged seal.
6 When installing the air filter elements to the air
cleaner housing. support the back of housing with one
hand and push the air filter element into position as gen-
tly as possible. (fig. C3623)
7 Install the air cleaner cover onto the housing. Be sure
to align the latch hooks with the notches in the air cleaner
housing.
Do not use the latches to push the air filter elements
into position.
7-7

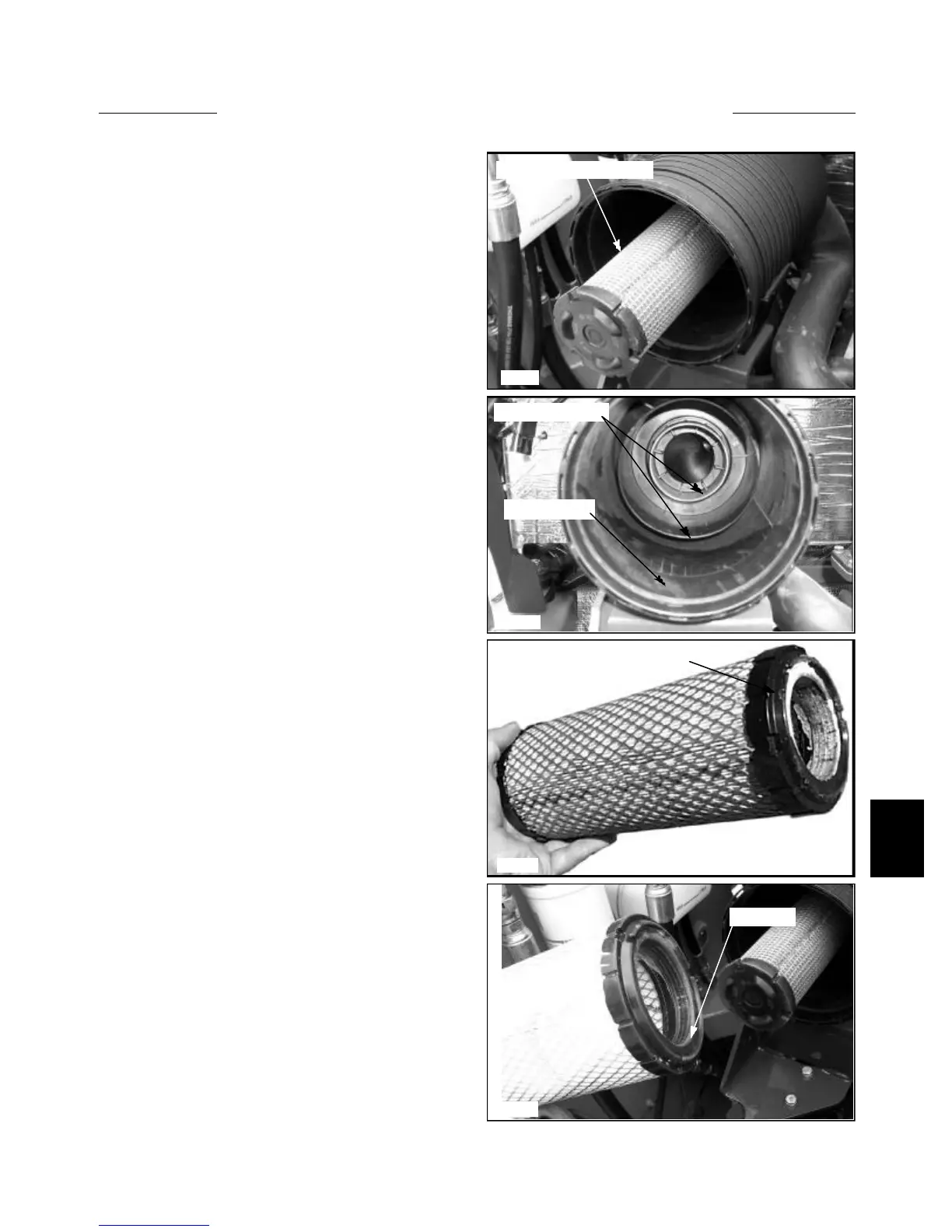

C3621
C3622
C2201
C3623
Safety air filter element
Clean out dirt
Filter sealing area
Filter seal
Air filter element radial seal
ENGINE MAINTENANCE 7.1
