DRIVE MOTOR 2.12

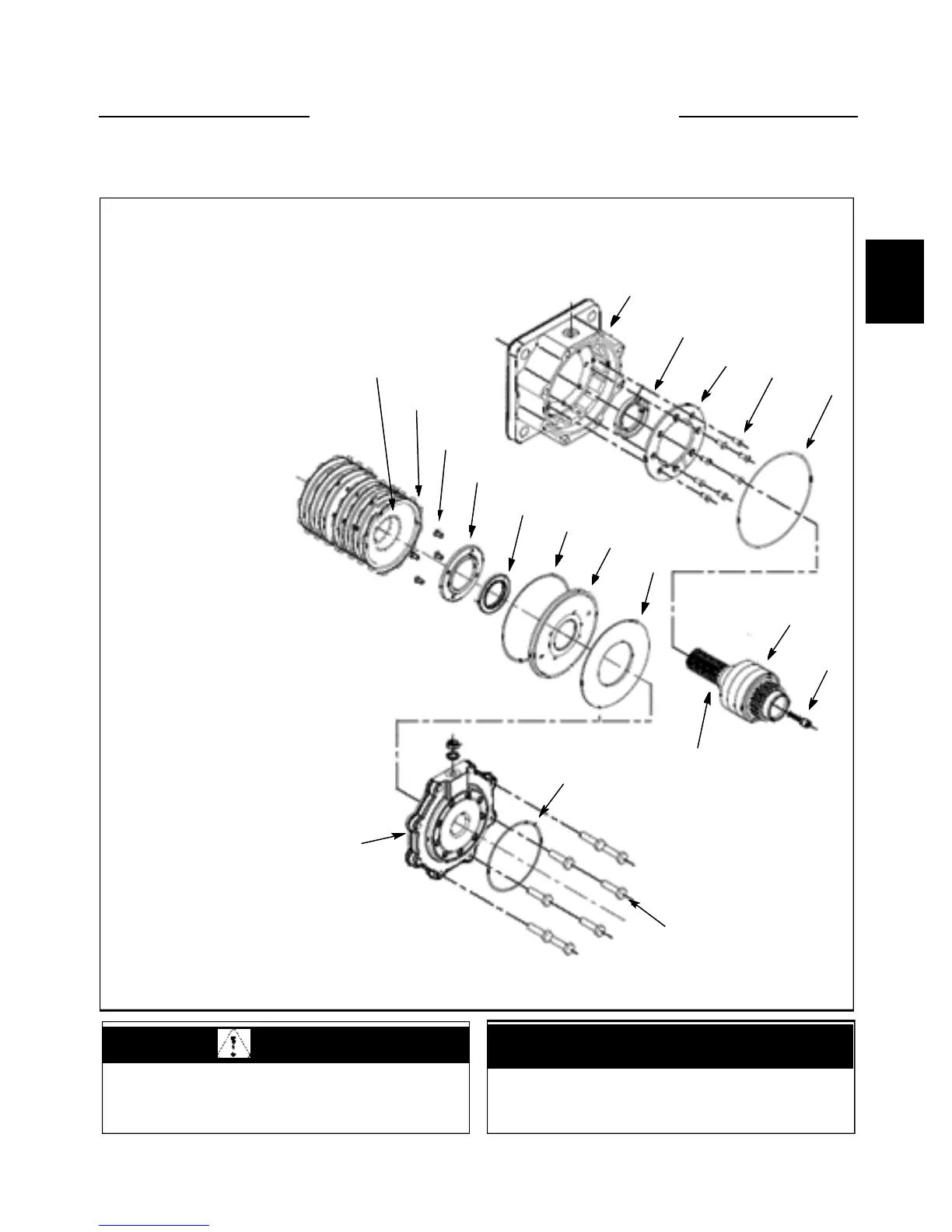

Parts Illustration
IMPORTANT
When making repairs to the hydraulic system, keep
the work area and parts clean. Use caps and plugs
on all open line and ports.
TMT 500 FLV
1. Screws
2. O Ring
3. Bearing Housing
4. Spring Plate
5. Piston
6. O Ring
7. Spacer Disc
8. Shaft Bearing Retainer
9. Screws
10. Outer Brake Disc
11. Inner Brake Disc
12. Screw
13. Bearing
14. Splined shaft
15. O ring
16. Screws
17. Retaining ring
18. Shaft Seal
19. Bearing Housing
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
C4169
17
18
19
WARNING
To avoid eye injury, use safety goggles when
cleaning with compressed air.
