2-36
DRIVE MOTOR 2.11
C3515
C3513
C3514
C3516

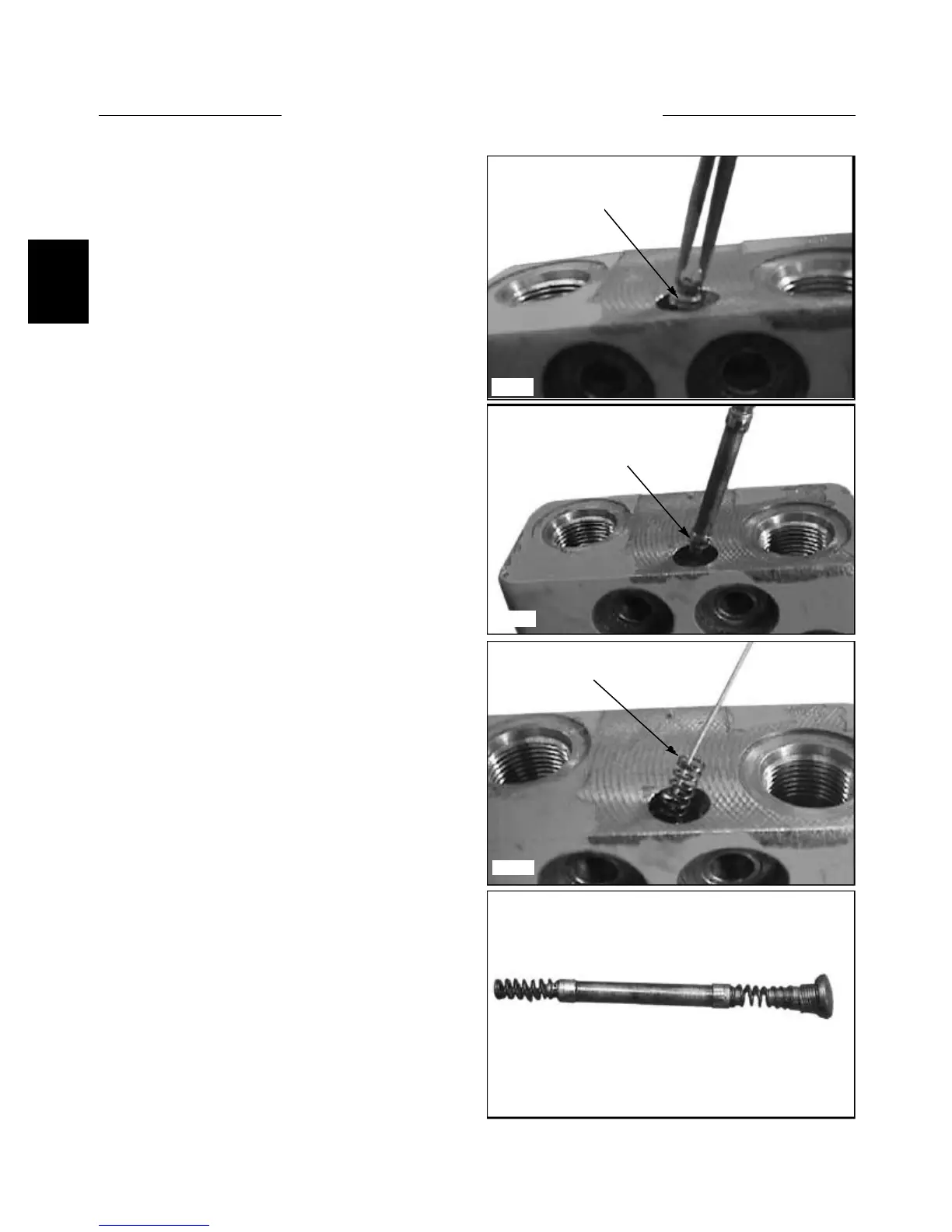

8 Carefully remove spool from the housing to avoid
scoring. (fig. C3513)
Disassembly (cont’d)
Second Spring
Flushing Valve Assembly
10 The second spring is deep within the housing. It is
not necessary to remove this spring unless it is suspected
of failure. (fig. C3515)
9 Remember that the spool is set at an angel within the
housing. (fig. C3514)
Spool
Spool
11 The complete flushing valve assembly. Carefully
examine prior to reinstalling into housing. (fig. C3516)
