DRIVE MOTOR 2.11
C3528
C3527
C3529
C3530

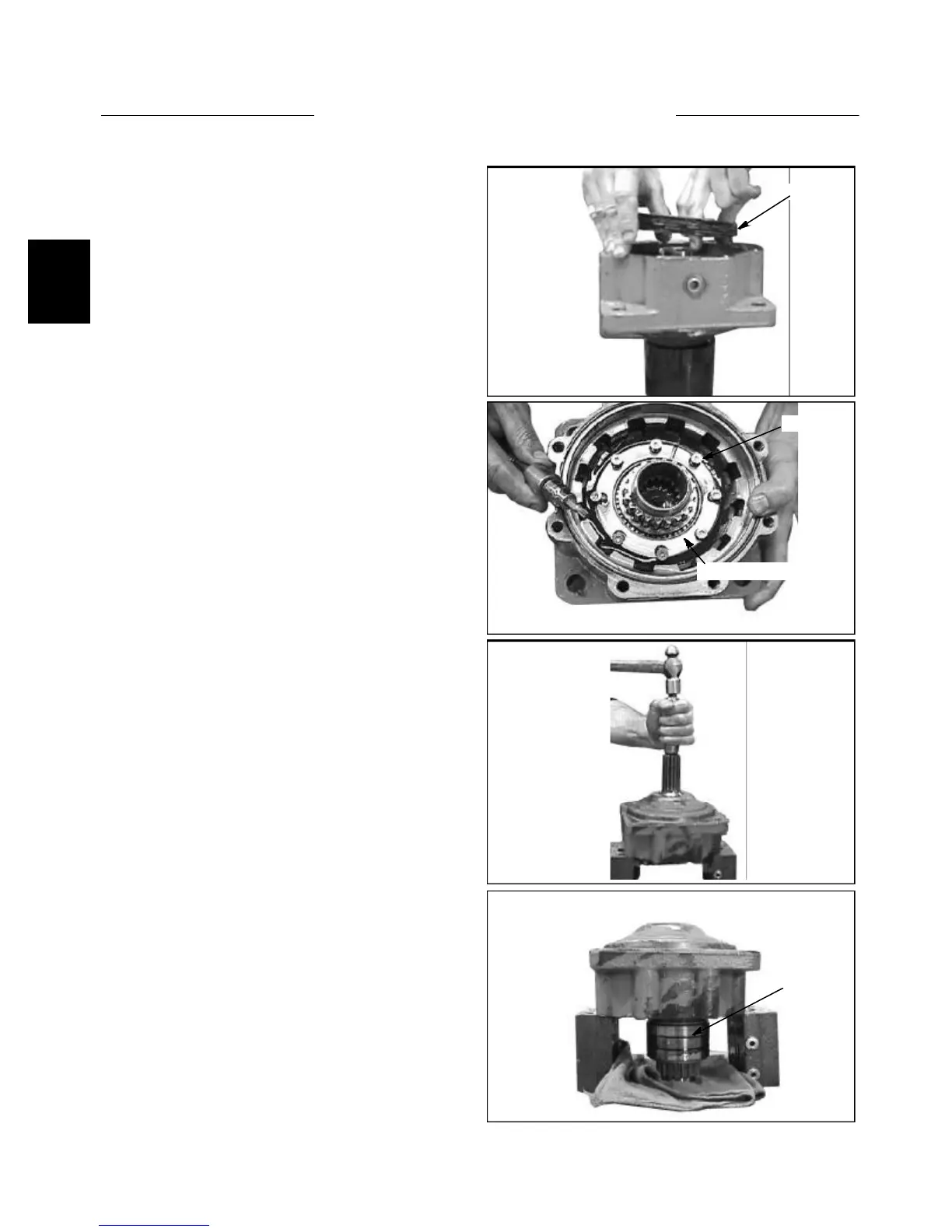

14 With the piston removed, the unit can be turned
upside-down to remove the excess oil and the brake disks
(inner and outer). (fig. C3527)
15 With the brake disks removed it exposes the shaft
bearing retainer. Remove the eight (8) screws with a Torx
driver. (fig. C3528)
Disassembly (cont’d)
Brake Disks
Shaft Bearing Retainer
Shaft
16 Turn the bearing housing and shaft upside-down and
hammer out the output shaft. (fig. C3529)
Screws
17 At this point the shaft should drop straight down-
wards. The shaft seal can now be removed and replaced.
It can not be removed in any other way. (fig. C3530)
