To dump the bucket (Fig. 3. 3C) push down on the heel of the
lift arm pedal to raise the lift arms. Push down on the toe of
the bucket pedal small amounts as the lift arms are raising to
stop material from falling off the back of the bucket. When
the bucket is at the correct height for dumping, push on the toe
of the bucket pedal to empty the bucket.
For hand control units, move the L.H. control lever away
from you (Fig. 3. 3C) to raise the lift arms. Move the R.H.
control lever away from you in small amounts as the lift arms
are raising to stop material from falling from the back of the
bucket. When the bucket is at the correct height for dumping,
move the R.H. lever away from you to empty the bucket.
3. 4 DIGGING WITH A BUCKET
Push on the toe of the lift arm pedal and lower the lift arms
completely down. Push on the toe of the bucket pedal and
place the cutting edge of the bucket on the ground (Fig. 3.
4D). Drive the loader forward at a slow rate and continue to
tilt the bucket down until it enters the ground.
Push down on the heel of the bucket pedal (Fig. 3.4E) to
increase traction and keep an even digging depth.
Continue to drive forward until the bucket is full. When
digging in hard ground, it is easier to raise and lower the
bucket cutting edge with the tilt pedal while slowly driving
forward.
When the bucket is full push down on the heel of the bucket
pedal (Fig. 3. 4F) to raise the tip of the bucket.
For hand control units, move the L.H. control lever towards
you to lower the lift arms completely down. Move the R.H.
control lever away from you and place the cutting edge of the
bucket on the ground (Fig. 3. 4D). Drive the loader forward
at a slow rate and continue to tilt the bucket down until it
enters the ground. Move the R.H. control lever towards you
(Fig. 3. 4E) to increase traction and keep an even digging
depth. Continue to drive forward until the bucket is full.
When the bucket is full, move the R.H. control lever towards
you (Fig. 3. 4F) to raise the tip of the bucket.
21
C711

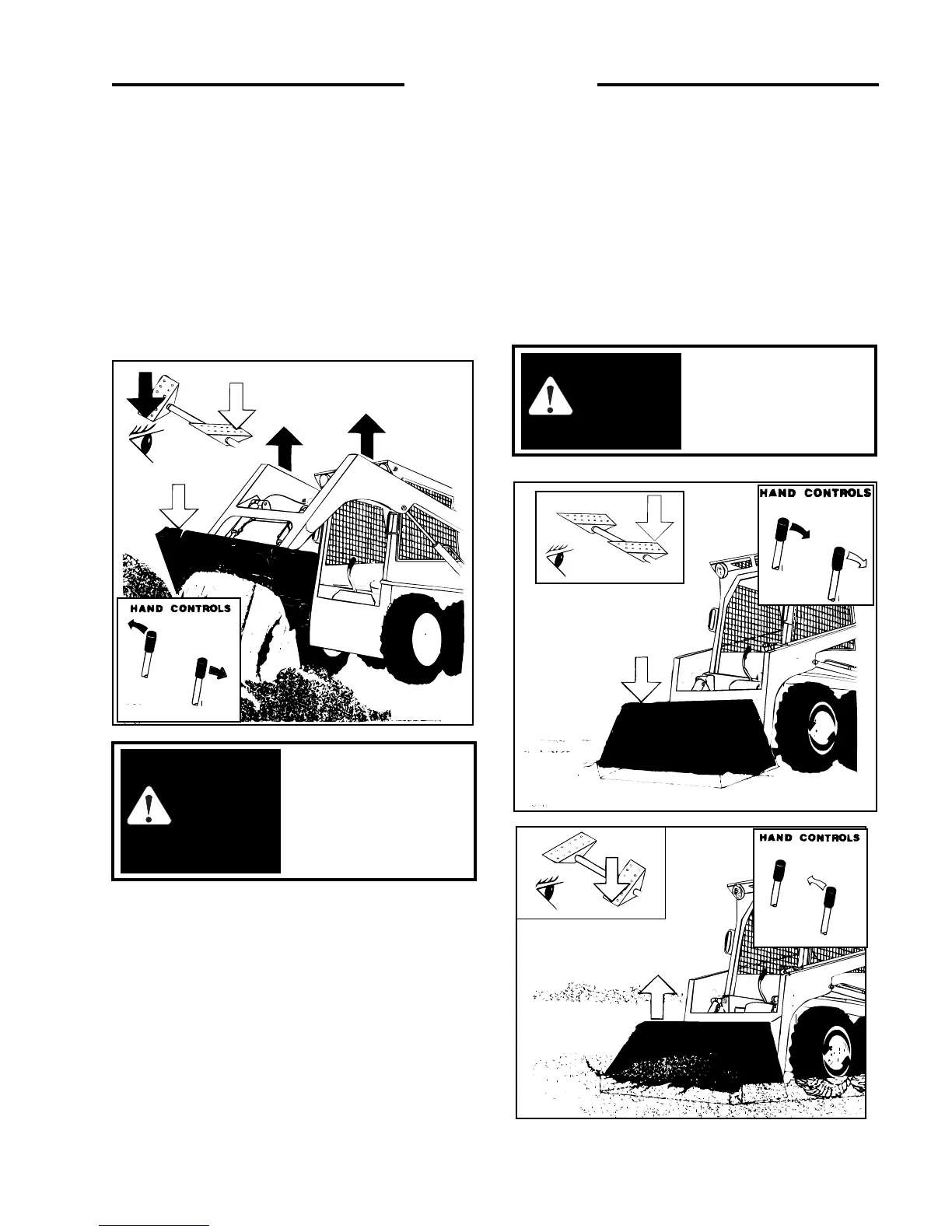

fig. 3.4D
3...OPERATION
To avoid personal injury:
When starting or
operating loader in an
enclosed area make sure
there is enough
ventilation. Exhaust
fumes can kill.
WARNING
To avoid personal injury
always carry the load
low.
WARNING
fig. 3.3C
1055
LH
LH
LH
RH
RH
RH
fig. 3. 4E
C-710
C - 712
C - 714
