8
2...CONTROLS
1. Lift Arm Supports:
For safety while performing service or maintenance,
the loader is equipped with a lift arm support device.
Refer to section 2.6 for details.
2. Left Signal Indicator Light:
This light will illuminate when the operator uses the
optional left signal (if equipped).
3. Auxiliary Front Indicator Light:
This light will illuminate when the loader auxiliary
hydraulic front switch (if equipped) is turned on.
4. Brake Indicator Light:
The brake light will illuminate when the parking
brake is engaged.
5. Work Light Indicator:
This light will illuminated when the loader
headlights are turned on. This will serve as a
reminder to turn them OFF when the loader is not in
use.
6. Right Signal Indicator Light:
This light will illuminate when the operator uses the
optional right signal (if equipped).
7. Hydraulic Oil Temperature Indicator:
This light will illuminate when the oil temperature
has exceeded recommended levels. Shut off the
engine immediately and determine the cause.
8. Hydraulic Oil Pressure Indicator Light:
This light will illuminate when there is low hydraulic
oil pressure. If this light illuminates, shut off the
engine and determine the cause.
9. Coolant Temperature Indicator Light:
This light will illuminate if there is a rise in engine
temperature. If this occurs, shut off the engine
immediately and determine the cause.
10. Seat Belt Indicator Light:
This light will illuminate when the seat belt is
unfastened.
11. Alternator Indicator Light:
This light will illuminate when the alternator is not
producing sufficient current.
12. Engine Oil Pressure Indicator:
This light will illuminate when the engine loses
lubrication pressure. Shut off the engine immediately
and determine the cause.
13. Pre-heat Indicator Light:
This light will illuminate when the ignition key is
turned counter clockwise to activate the engine glow
plugs.
14. Rotary Beacon Indicator:
This light will illuminate when the optional rotary
beacon (if equipped) is turned on.
15. Hazard Light Switch:
This switch is a toggle switch. Push up to turn the
optional hazard light (if equipped) on.
16. Rotary Beacon Light Switch:
This switch is a toggle switch. Push up to turn the
optional rotary beacon light (if equipped) on.
17. Dipped Beam Light Switch:
This switch is a toggle switch. Push up to turn the
work lights on. The light is located on the front of
the loader.
18. Auxiliary Hydraulics Front Switch:
This switch is a toggle switch. Push up to provide a
continuous flow of hydraulic oil to the quick
couplers when using an attachment.

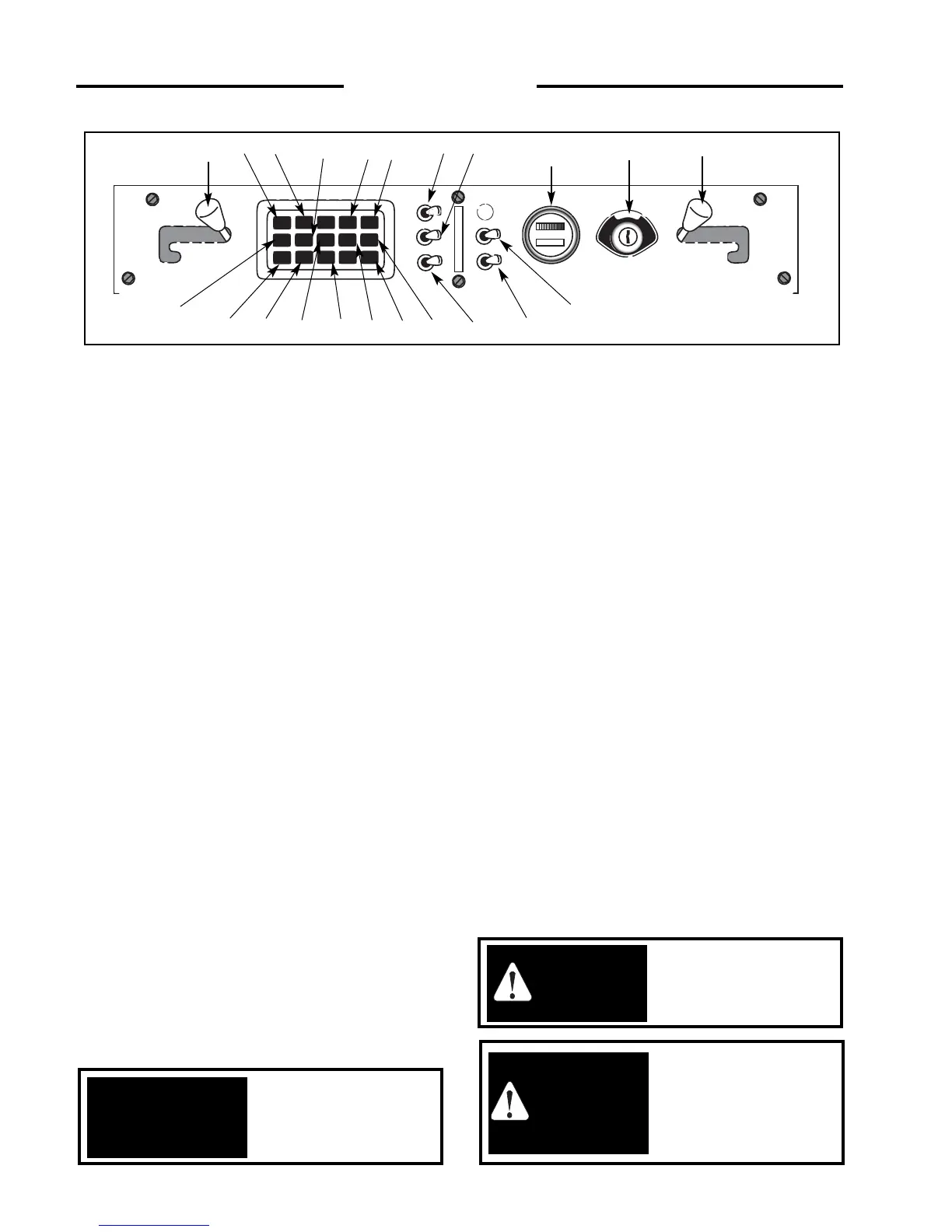

2.1 INSTRUMENT PANEL
C3066
fig. 2.1
20
3
21
1
15
5
4
2
1
10
9
8
7
18
To prevent personal
injury never add fuel to
the loader when the
engine is running or is
hot. NO SMOKING!
WARNING
This engine is equipped
with glow plugs. Do not
use ether or any high
energy fuels to assist
starting.
IMPORTANT
To prevent personal
injury do not start the
engine unless you are in
the seat with the seat belt
fastened around you.
WARNING
19
16
17
12
6
13
14
11
