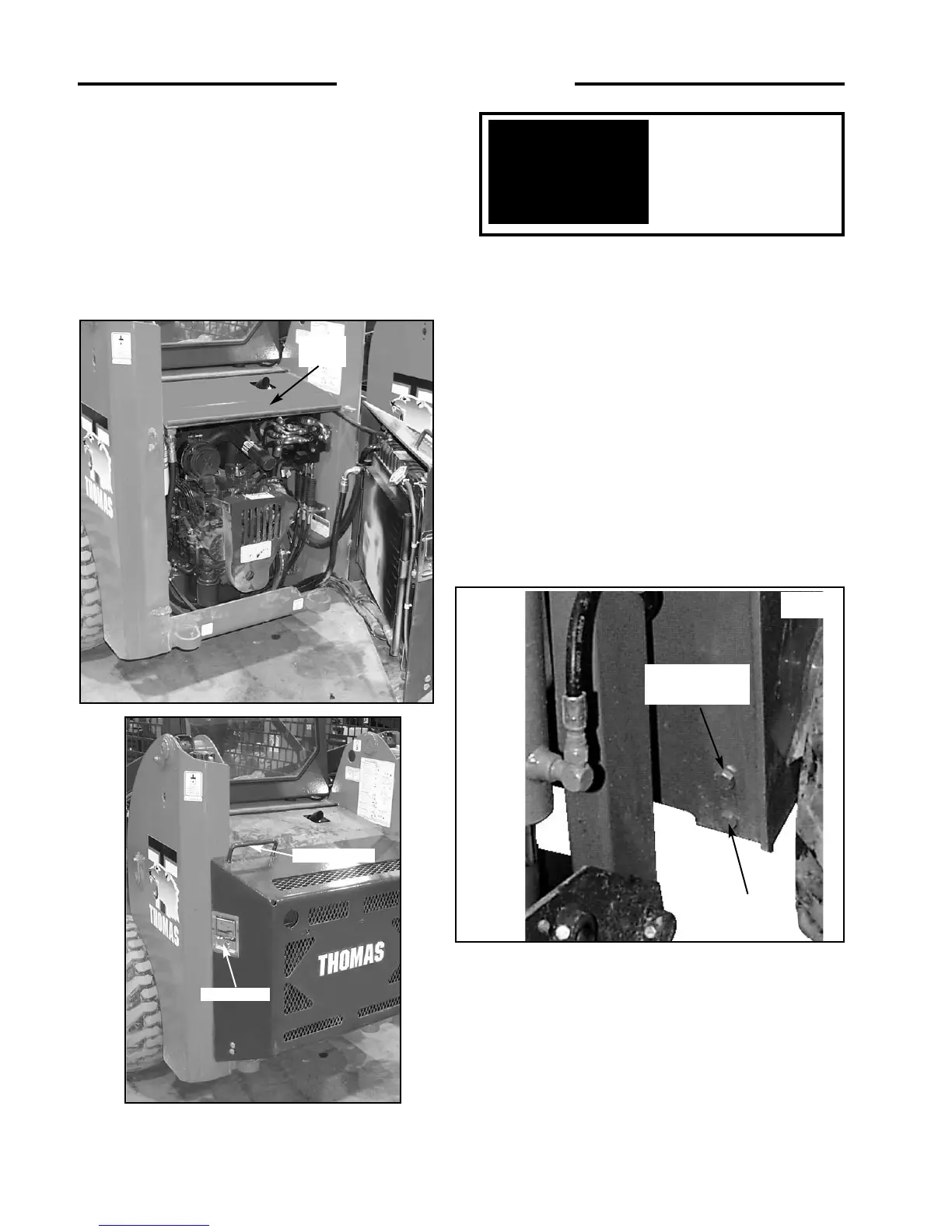

4. 5 FINAL DRIVE MAINTENANCE
1. Oil Level Check
The loader has two independent final drive housings. Check
the lubricating oil level with the loader on a level surface.
Remove the check plug (Fig. 4. 5A) located on the front of
the frame to determine the oil level. The oil level should be
checked after 50 operating hours and every 150 hours
thereafter. It is recommended the oil be changed after 1000
operating hours of if it shows signs of contamination.
4...MAINTENANCE
Keep the rear door
closed except for
servicing. Make sure the
door is closed and
latched before operating
the loader.
IMPORTANT
Oil Drain
Plug
Oil Level
Check Plug
C-893 FIG 4.5A
C3072 4.4C2
3. Engine Compartment
The engine compartment is completely enclosed for
component protection and lockable to discourage
vandalism. For servicing, the rear door swings open and
the engine cover hinges up. To open; pull door latch
upward, releasing the door catch, grasp the door handle
and swing the door open. (See Fig. 4. 4C1). Lower the
engine cover before closing the rear door. (See Fig. 4. 4C2)
C3071
4.4C1
Door Handle
Door Latch
Engine
Cover
