7. Adding Fuel
Use appropriate fuel only (See Section 5 for specification).
Total tank capacity 14.6 gal. (55 L).
Before adding fuel to the loader the key switch must be off
and the engine must be cool. Remove the fuel cap (Fig. 4.
7G). Use a clean approved safety container to add fuel.
Add fuel only in an area that is well ventilated and away
from open flames or sparks – NO SMOKING.
4. 8 AIR CLEANER MAINTENANCE
1. Daily Maintenance
Inspect the air precleaner canister for holes or dents, or
missing or mis-aligned gaskets. Check all hose clamps for
tightness and inspect the hoses for damage. Check the
vacuator for damage.
2. Servicing Cleaner Element
To replace the air filter element carry out the following:
1. Empty the dust cap as required.Dust should not
be allowed to build up closer than 1 in.
from the baffle.
2. Remove the primary element as gently as
possible. Before installing the new element
inspect the element and gasket for shipping or
storage damage.
3. Always clean the inside of the housing and
gasket seating surface making sure no
dust is allowed into the intake duct.
4. Check for uneven dirt patterns on the old
filter. Make sure the new gasket is seating
evenly. Reinstall dust cap, making sure it
seals 360 degrees around the cleaner body.
Reset the restriction indicator.
5. Check all connections between the air
cleaner and the engine to be certain they
are tight and leak - free.
4...MAINTENANCE

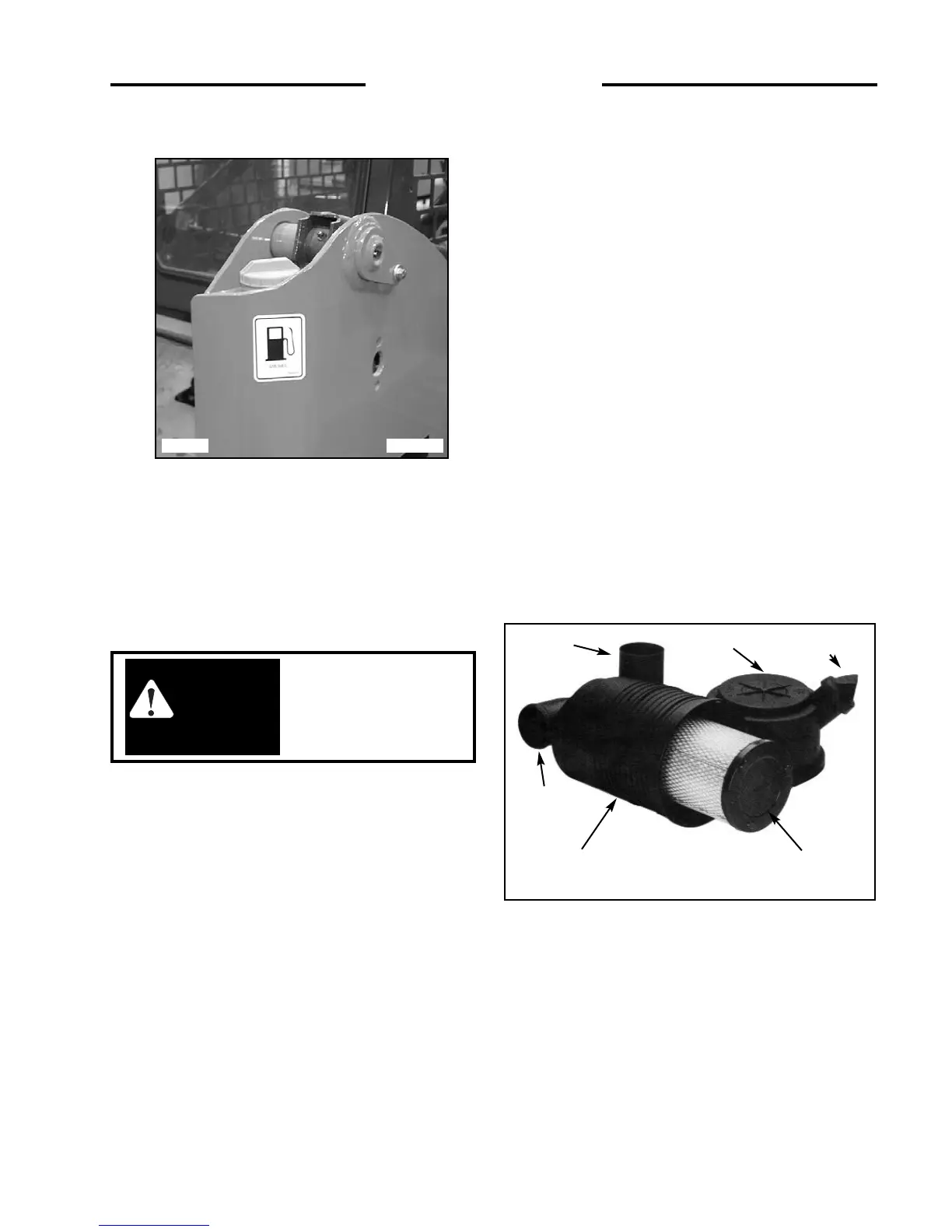

Fig. 4.7GC3074
VACUATOR
COVER
ASSEMBLY
INLET
PRIMARY FILTER
MAIN BODY
C - 891
OUTLET
To avoid personal injury
never add fuel to the loader
when the engine is running
or is hot. NO SMOKING.
WARNING
