3. 5 LEVELING AND BACKFILLING
Spread dirt on uneven ground by pushing on the heel of the lift
arm pedal (Fig. 3.5G) to raise the lift arms and push on the toe
of the bucket pedal to tilt the bucket down as you drive
forward.
For hand control units, spread dirt on uneven ground by
moving the L.H. control lever away from you (Fig. 3. 5G). To
raise the lift arms and move the right hand control lever away
from you to tilt the bucket down as you drive forward.
To level the ground; raise the lift arms and tilt the bucket down
by pressing on the toe of the bucket pedal (Fig. 3.5H). Push
firmly on the toe of the lift arm pedal to lock the lift arms in
float position. The weight of the lift arms and bucket will hold
the bucket on the ground. Drive backward to level material.
To level the ground with a hand control unit, raise the lift arms
and tilt the bucket down by moving the R.H. control lever
away from you. Move the L.H. control lever all of the way
towards you (Fig. 3. 5H) to place the lift arms in the float
position. The weight of the lift arms and the bucket will hold
the bucket on the ground. Drive backwards to level material.
To fill a hole (Fig. 3. 5I) drive the loader slowly with the
bucket low, up to the hole. As the bucket passes the edge of the
hole, push on the toe of the bucket pedal to dump the bucket.
When necessary raise the lift arms to empty the bucket.
On hand control units, as the bucket passes the edge of the
hole, move the R.H. control lever away from you to dump the
bucket. When necessary, raise the lift arms to empty the
bucket.
3...OPERATION
C- 718
C - 716
LH
LH
LH
LH
RH
RH
RH
RH
1059

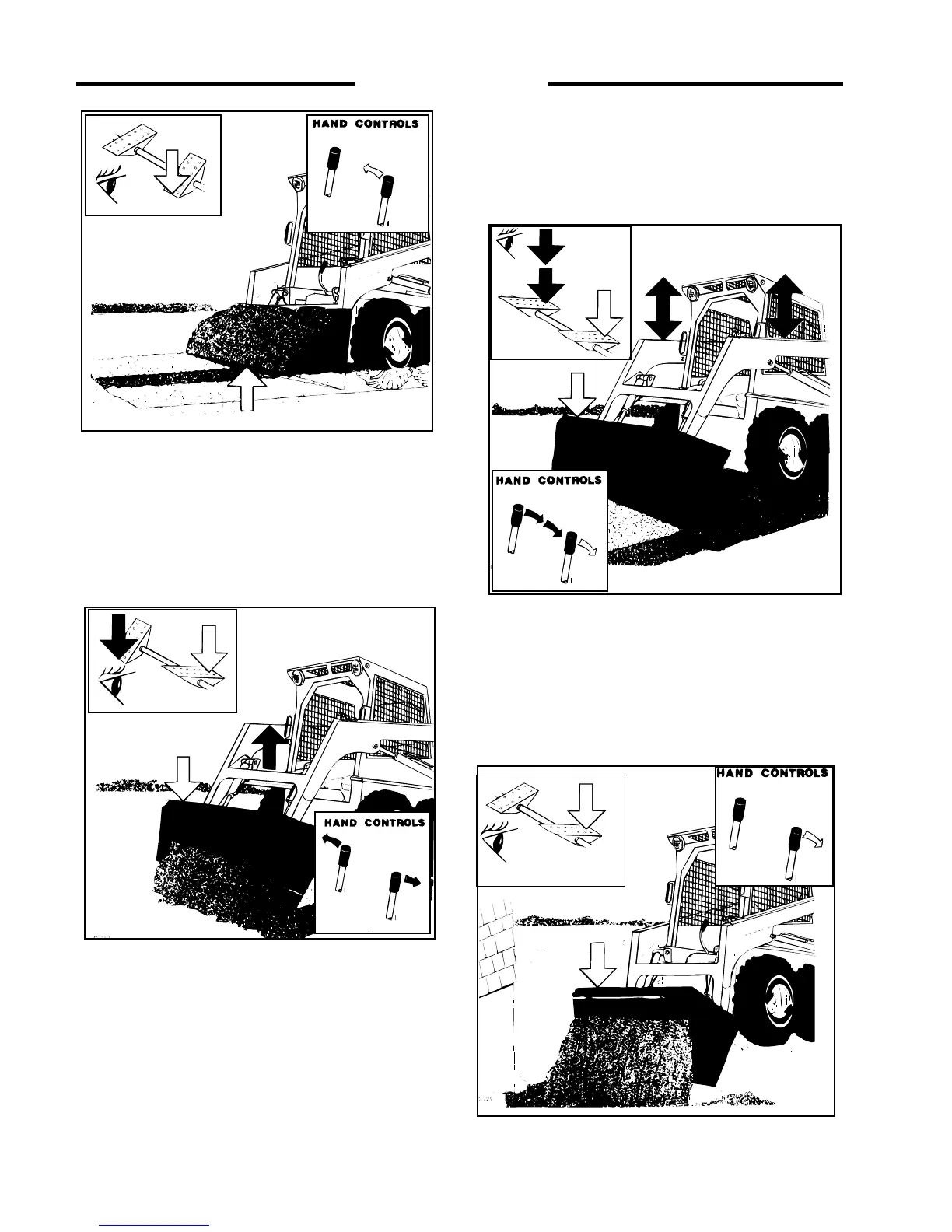

FIG 3.5G
