19. Work Light Switch:
This switch is a toggle switch. Push up to turn the
optional work light (if equipped) on. The light is
located on the back of the loader.
20. Fuel Gauge/Hour Meter:
The fuel gauge indicates the quantity of fuel
remaining in the fuel tank. The hour meter records
the number of engine operating hours and has a
total of 9999.9 hours.
21. Ignition Switch:
The ignition switch is a four (4) position switch:
‘OFF’, ‘PRE-HEAT’, ‘RUN’ and ‘START’. Turn
the key counter clockwise to engage engine ‘PRE-
HEAT’. Turn the key clockwise to the ‘START’
position, this engages the starter. The key will be in
the ‘RUN’ position when released. Turn the key to
‘OFF’ to shut off the engine and remove the key.
2. 2 SEAT AND SEAT BELT
The loader is equipped with a deluxe seat. The seat can
be adjusted forward or back for operator comfort. (Fig.
2.2A).
For your safety the loader is equipped with a seat belt.
Before starting the loader adjust and fasten the beat belt
(Fig. 2.2B) around you. The seat and seat belt also have
integrated safety lock switches whereby the operator
must be seated in the seat with the belt securely fastened
before the loader can be operated.
9
2...CONTROLS

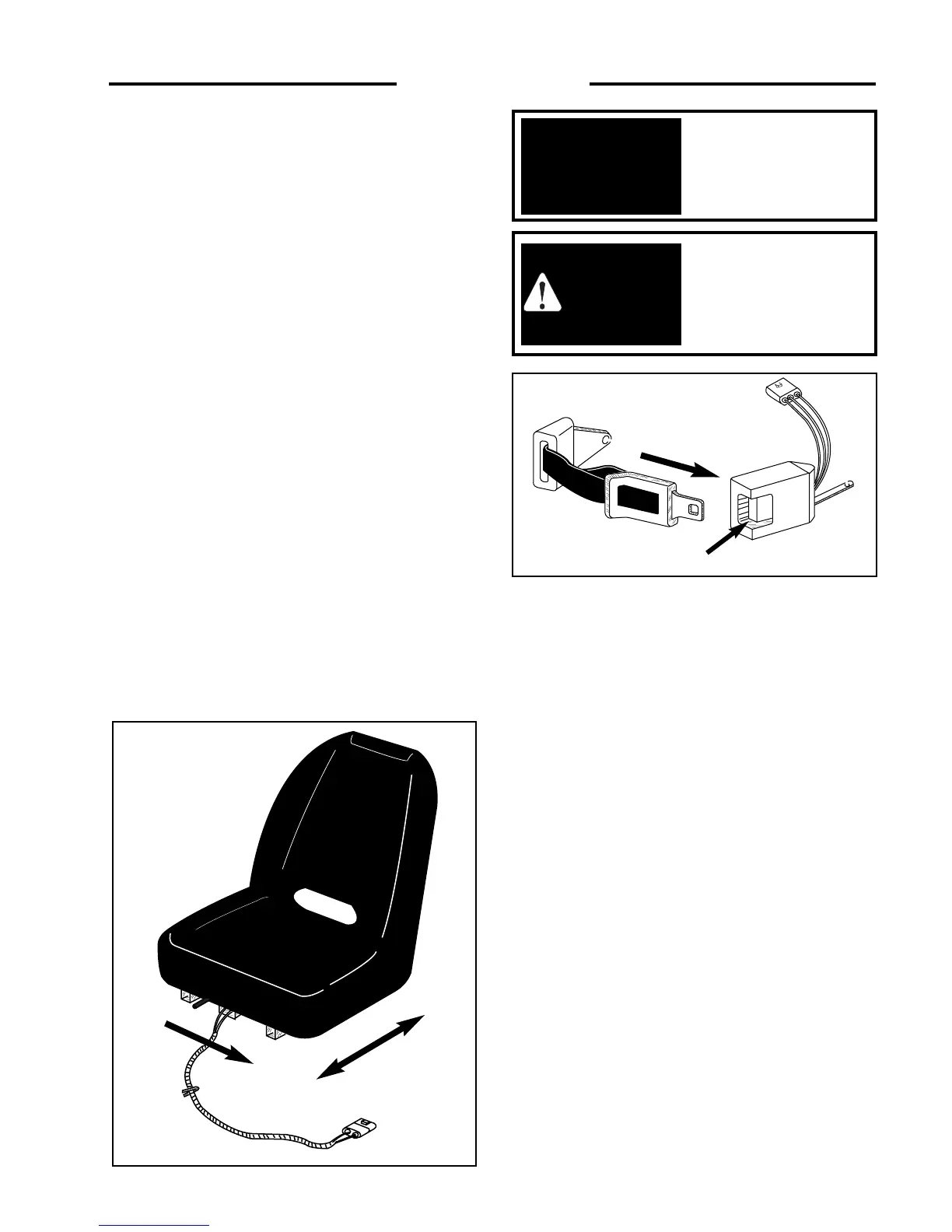

fig. 2.2B
C2698
fig. 2.2A
C2699
Fully retract the lift arm
supports before raising
or lowering lift arms.
IMPORTANT
To prevent personal
injury do not start the
engine unless you are in
the seat with the seat belt
fastened around you.
WARNING
Seat Adjust
Seat Belt Mechanism
Release
To Next Page
