Thomas T105 User Manual

17

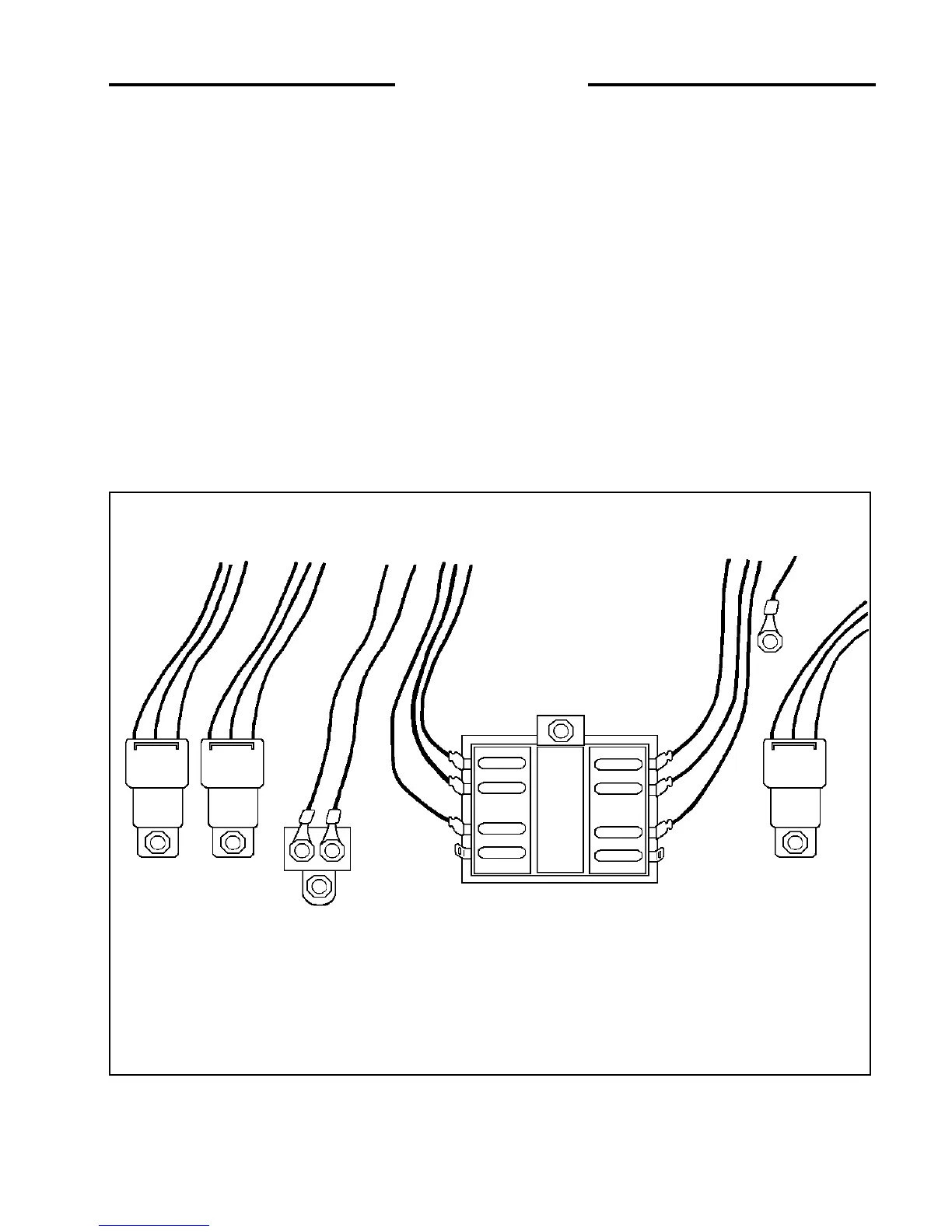

2. 12 ELECTRICAL PANEL
The loader is equipped with a 12 volt, negative ground
electrical system. The fuse and relay panel is located in the
engine compartment just in front of the battery box. The
panel consist of the following:
1. Glow Plug Relay
2. Starter Relay
3. Fan Relay
4 Main Electrical Circuit Breaker
FUSE PANEL
5. Valve Locks / Park Brake
6 Fan
7. Electric Fuel Shutoff
8. Spare
9. Horn
10. Solenoid Auxiliary
11. Alternator
12. Spare
STARTER
RELAY
GLOW
PLUG
RELAY
2...CONTROLS
FAN
RELAY
MAIN
ELECTRICAL
CIRCUIT
BREAKER
1
3 2
4
C-897
GROUND
5
9
6
10
7 11
8
12
10
10
10
10
10
10
