13
2...CONTROLS

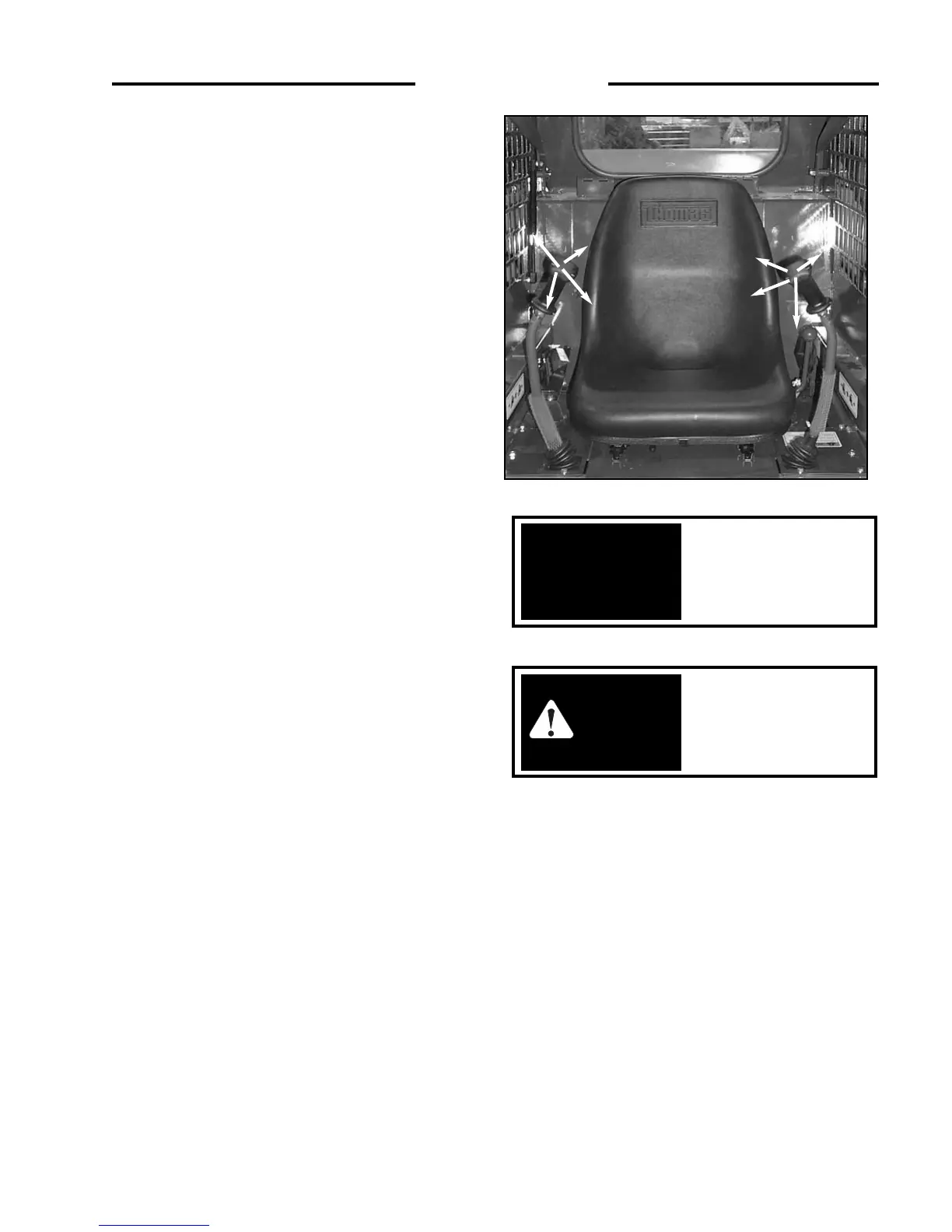

LIFT ARM and BUCKET CONTROLS:
The right hand lever controls the bucket tilt cylinders (Fig. 2.
8A). Moving the left hand control lever to the left will cause
the lift cylinders to extend, raising the loaders lift arms.
Moving the control lever to the right causes the lift cylinders to
retract, lowering the lift arms. Moving the control lever to
extreme right will place the lift arms in float position. This
allows the bucket to follow the contour of the ground as the
loader moves backward.
When the control levers are released they will automatically
return to the neutral position stopping all hydraulic movement
and travel speed. Before exiting the loader, shut off the engine
and lower the lift arms completely down to the frame and
ground the attachment. Raise the seat bar to the locked
position. Move both levers to the left and right to ensure the
hydraulic controls are locked before you get out of the loader.
AUXILIARY HYDRAULICS:
The foot pedal is used to engage the loaders auxiliary hydraulic
circuit to power an attachment such as a post hole auger.
Pressing on the toe of the pedal provides hydraulic flow to the
female quick - connect coupling located at the front of the lift
arms. Firm pressure on the toe of the pedal will lock it into
detent position providing a continuous flow of hydraulic oil to
the attachment.
Pressing on the heel of the pedal provides hydraulic flow to the
quick-connect coupling reversing the flow of hydraulic oil. If
not locked in detent position, releasing the pedal will cause it
to return to the neutral position stopping all hydraulic flow.
Once the pedal is locked in detent, it can be returned to neutral
by tapping the heel of the pedal.
When the auxiliary hydraulic system is not in use return the
pedal to the neutral position otherwise starting the loader may
be difficult or impossible and damage to the starter motor may
occur.
To prevent personal
injury do not start the
engine unless you are in
the seat with the seat belt
fastened around you.
WARNING
Return the auxiliary
hydraulic
foot pedal to
neutral position when not
in use.
IMPORTANT
C3165
fig. 2.8A
Reverse
Raise
Lift
Arms
Lower
Forward
Roll Back
Dump
Reverse
Forward
