14
2. 9
ELECTRICAL SOLENOID AUXILIARY
(OPTIONAL)

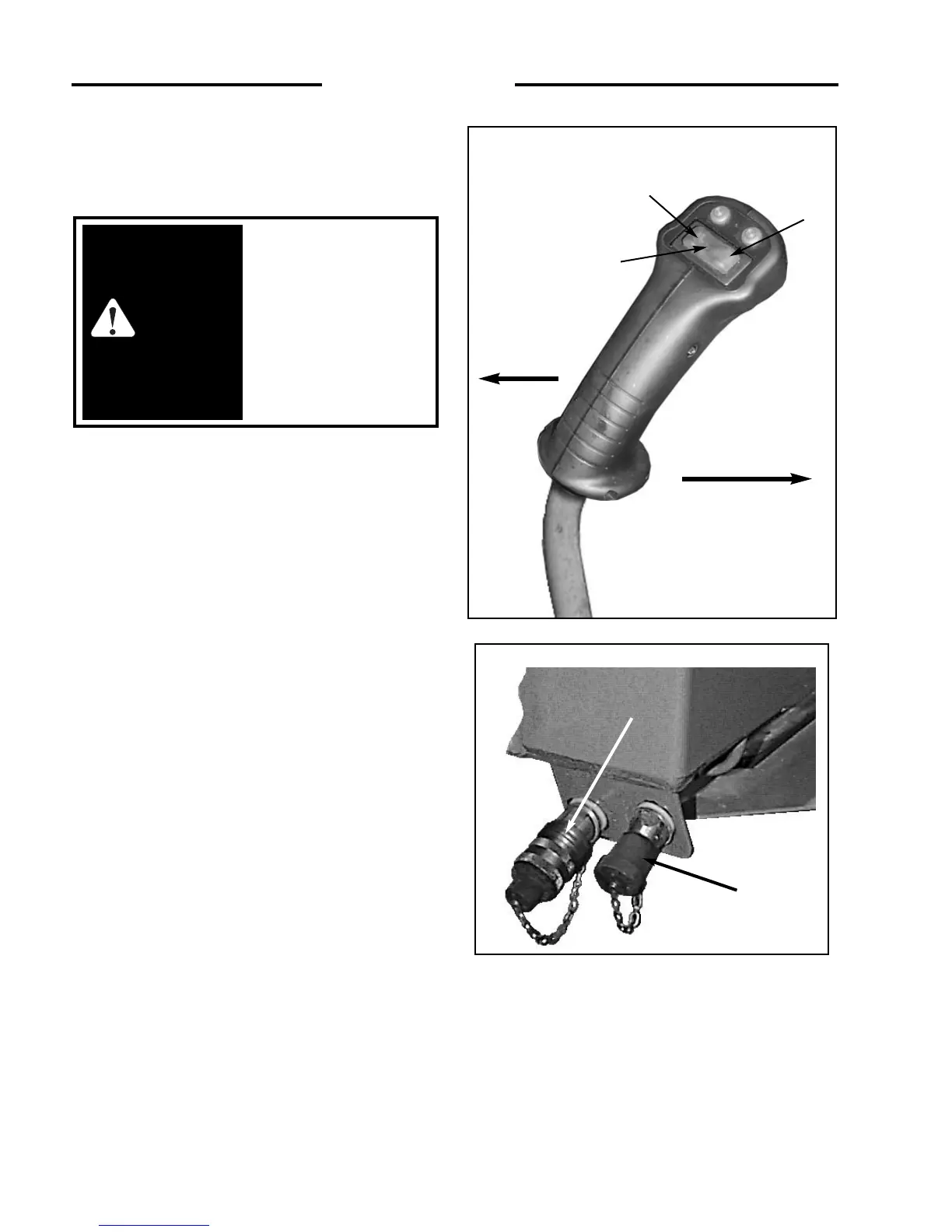

A switch located in the L.H. steering control lever (Fig. 2. 9A)
is used to engage the loaders auxiliary hydraulic circuit to
power attachments such as post hole augers, sweepers etc.
CONTROLS:
By pressing and holding the switch in position 1 (Fig. 2. 9A)
provides hydraulic flow to the female quick connect coupling
located at the front of the lift arms (Fig. 2. 9B). Releasing the
switch returns the auxiliary hydraulic circuit to neutral,
stopping hydraulic flow.
By pressing and holding the switch in position 2 (Fig. 2. 9A)
provides hydraulic flow to the male quick connect coupling
located at the front of the lift arms (Fig. 2. 9B). Releasing the
switch returns the auxiliary hydraulic circuit to neutral,
stopping hydraulic flow.
For continuous flow to the auxiliary hydraulic circuit, a toggle
switch is located on the Instrument Panel. Placing the switch in
the ON position provides continuous hydraulic flow to the
female quick connect coupling located at the front of the lift
arms (Fig. 2. 9B). To stop hydraulic flow to the auxiliary
hydraulic circuit, return the switch to the “OFF” position.
When the switch on the instrument panel is in the ON position,
the switch located in the L.H. control lever is not operable.
NOTE: The optional left hand control lever auxiliary control
switch operates a horn, if equipped.
To avoid personal injury,
lower the lift arms, shut off the
engine, raise the seat bar and
cycle the hydraulics to ensure
they are locked. Then, unlatch
the seat belt and exit the
loader. Do not enter or exit
with the engine running unless
as specified in this manual or
under specific service and
backhoe operating procedures.
WARNING
fig. 2. 9A
C3166
Fig. 2. 9B
C - 641
MALE QUICK CONNECT
FEMALE QUICK CONNECT
2...CONTROLS
Control Lever Switch (L.H.)
Seat side
ROPS side
2
1
NEUTRAL
