16

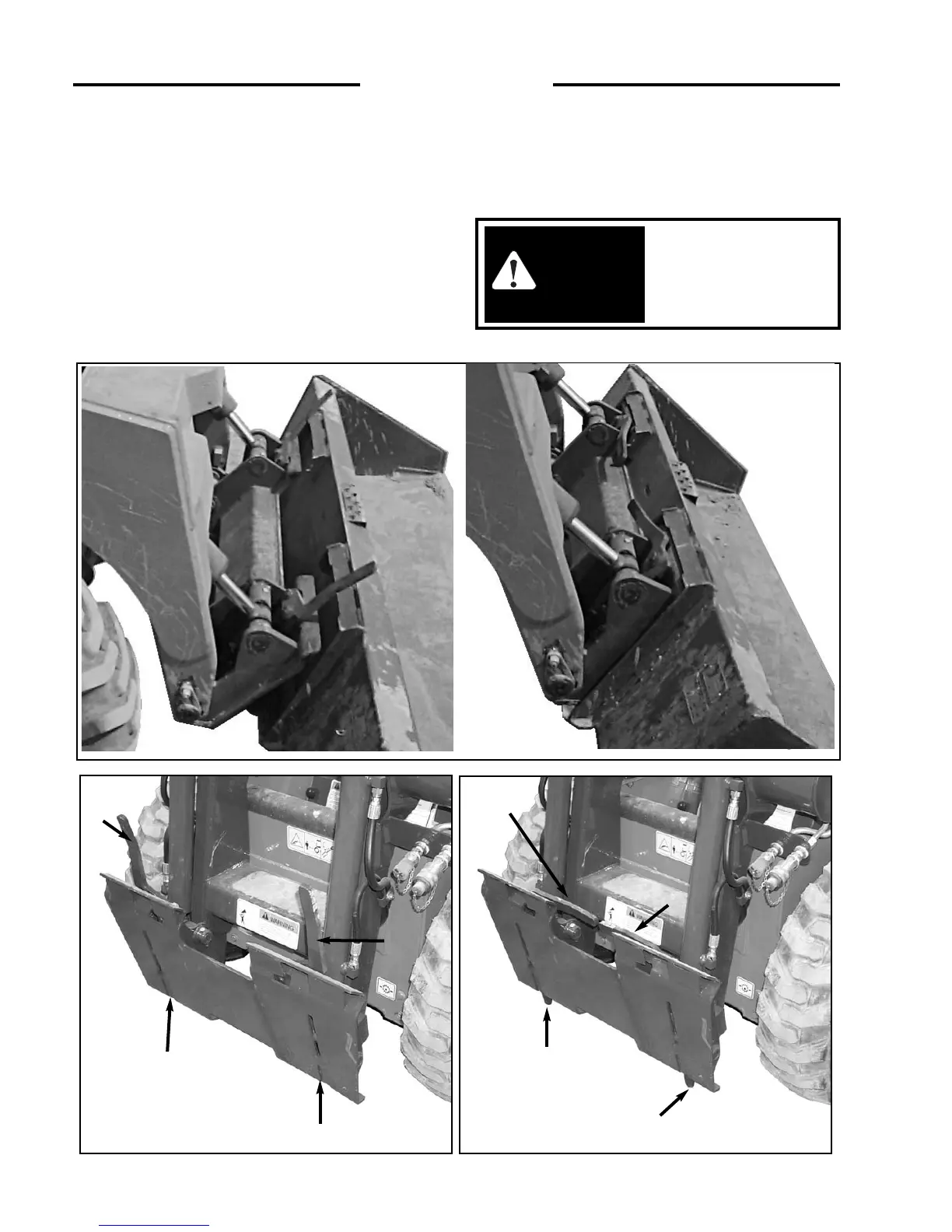

2. 11 QUICK - TACH
The loader is available with a Thomas Quick - Tach. The
Thomas Quick - Tach is designed to fit Thomas approved
attachments.
The quick - tach, which is standard equipment, allows
changing from one attachment to another quickly without
having to remove bolt or pins.
To operate, simply lift the
two over - centre locking levers to disengage the lock pins
(Fig. 2. 11B). Tilt the quick-tach frame forward (Fig. 2. 11A)
with the bucket tilt cylinders and drive into the attachment.
Retract the bucket tilt cylinders which will line up the
bottom of the attachment with the quick-tach lock pins. Shut
off the engine. Push the locking levers down (4) (Fig. 2.
11B) extending the lock pins (5) through the attachment.
Before operating the attachment check that the locking pins
are correctly engaged.
After hook up the
attachment check to be
sure pins and locking
levers are fully engaged.
WARNING
1108 Fig. 2.11A
C-660
C-661
Fig. 2.11A
Fig. 2. 11A
C3069
C3070
fig. 2. 11B
5
4
5
fig. 2. 11B
2...CONTROLS
4
5
4
5
4
