3. 6 AUXILIARY HYDRAULICS
To operate an attachment such as a grapple fork using the
auxiliary hydraulic circuit, push on the heel of the centre
or auxiliary pedal to open the grapple (Fig. 3. 6J).
To close the grapple (Fig. 3. 6K), push down on the toe of
the auxiliary pedal. The lift arm and the bucket pedals can
be used to raise and tilt the grapple as with a bucket.
To operate an attachment which requires a constant flow of
oil such as a sweeper push down firmly on the toe of the
auxiliary pedal until the pedal locks in detent position.
When the auxiliary circuit is not in use return the auxiliary
pedal to neutral position otherwise starting the loader may
be difficult or impossible.
3. 7 LIFTING
The loader can be equipped with optional features to use in
lifting (for example by crane onto a flatbed trailer or a flat
car), for securing, and for extraction (from mud or snow).
To lift using a crane, first follow the shut-off procedure in
section 3.1C.
Once this is done, attach properly rated cables, chains or
straps to lift points provided (Fig. 3.7). To prevent marking
the operator guard or chafing of the lifting cable, a lifting
frame should be used.
3...OPERATION
Return the auxiliary
control to neutral when
not in use otherwise
starting may be
impossible and damage
to the starter may occur.
Return toggle switch to
neutral.
IMPORTANT
To avoid personal injury,
lower the lift arms, shut off
the engine, raise the seat bar
and cycle the hydraulics to
ensure they are locked. Then,
unlatch the seat belt and exit
the loader. Do not enter or
exit with the engine running
unless as specified in this
manual or under specific
service and backhoe
operation procedures.
WARNING

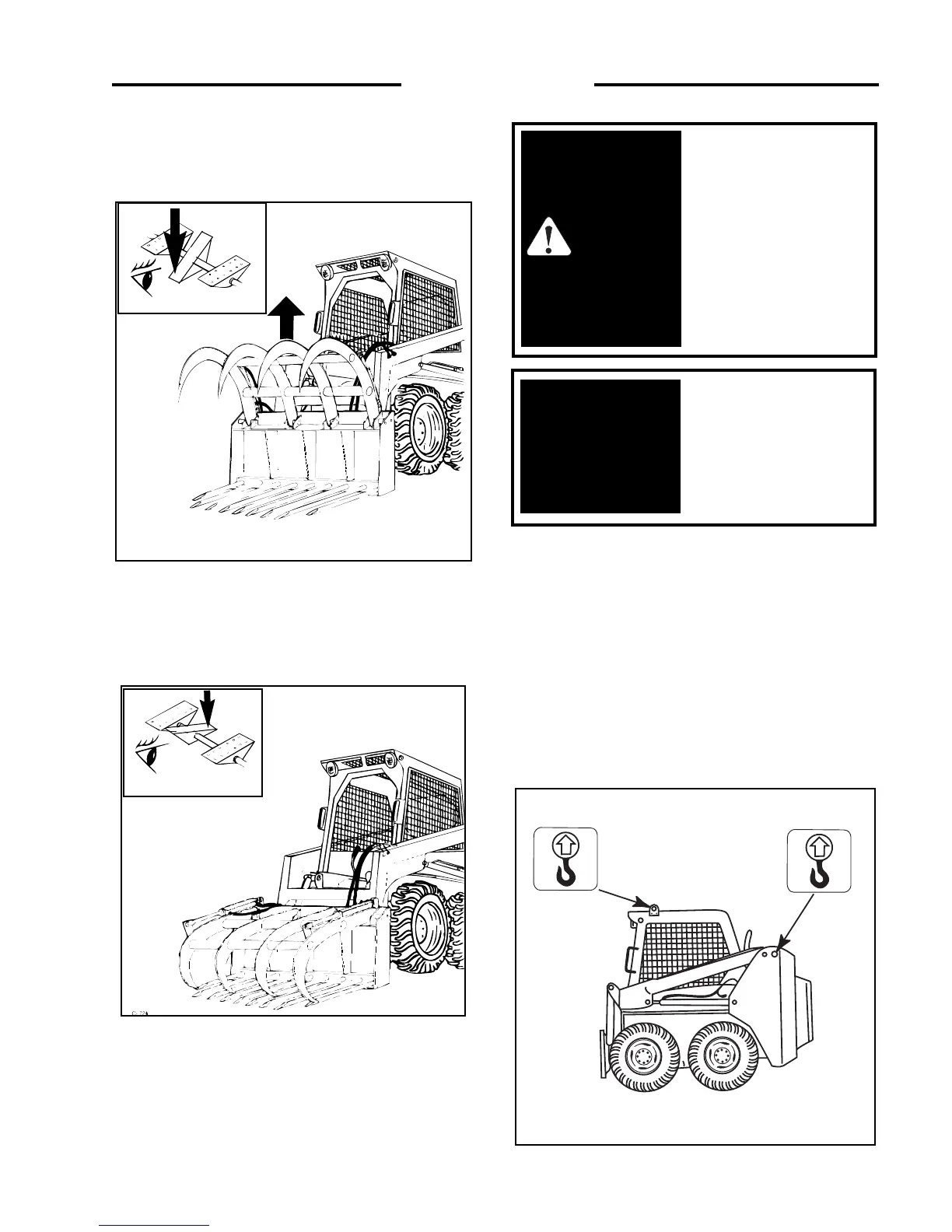

Fig. 3. 6K
