3 Operating the DC3100
DC3100 23
This screen is for information purposes only and offers no user inputs.
In this mode the LED can only be controlled via the BNC connector at the rear panel
of the DC3100. The applied voltage corresponds to the LED current. 1V is
equivalent to a LED current of 100mA. A maximum voltage of 10V can be applied,
which will result in a current of 1A.

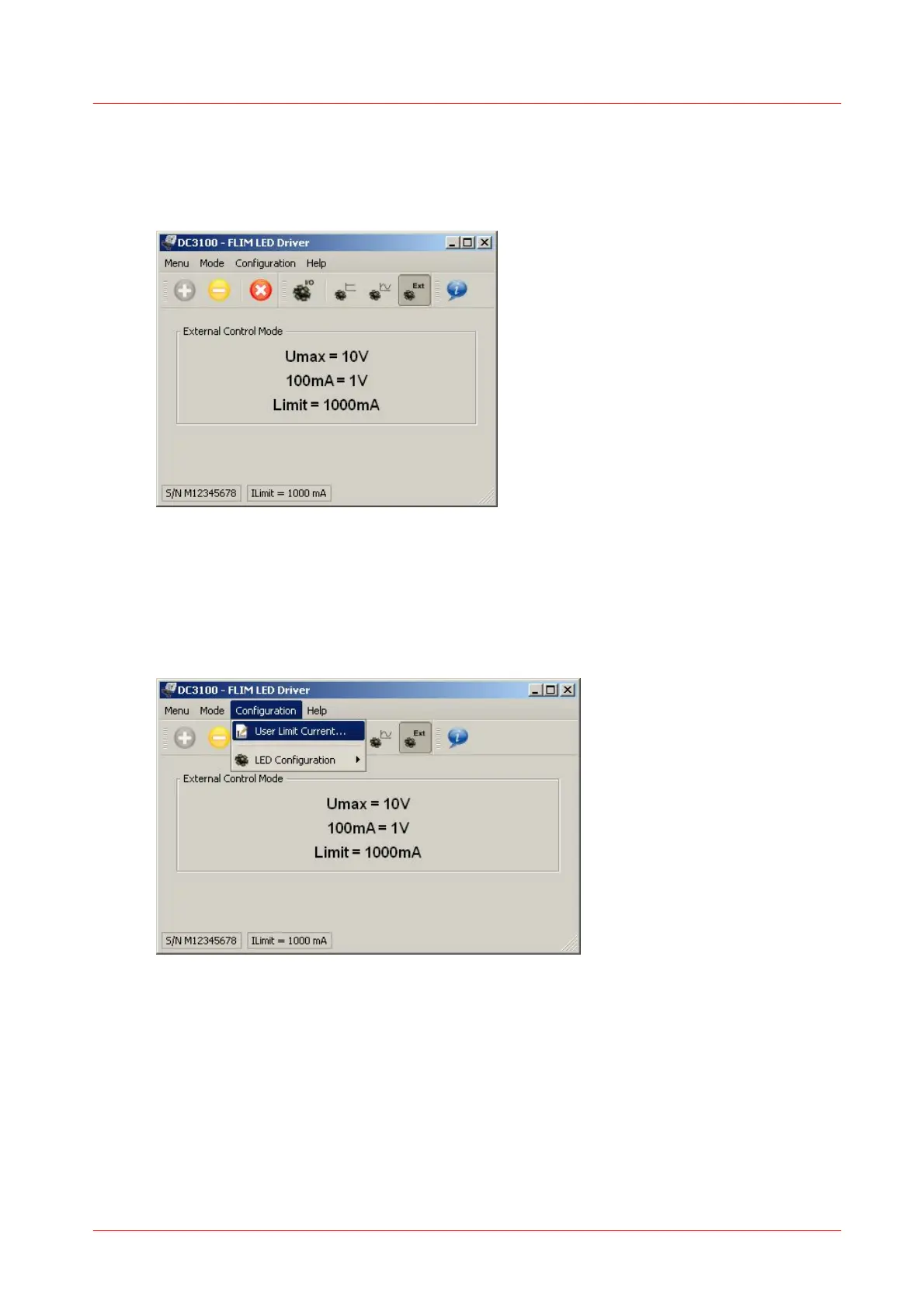

Figure 27 The External Control Mode
3.2.2.5
User Limit Current
The user can set an individual current limit, which must be below the LEDs maximum
current limit stored in the LED head.
Figure 28 User Limit
