7 Appendix
DC3100 41

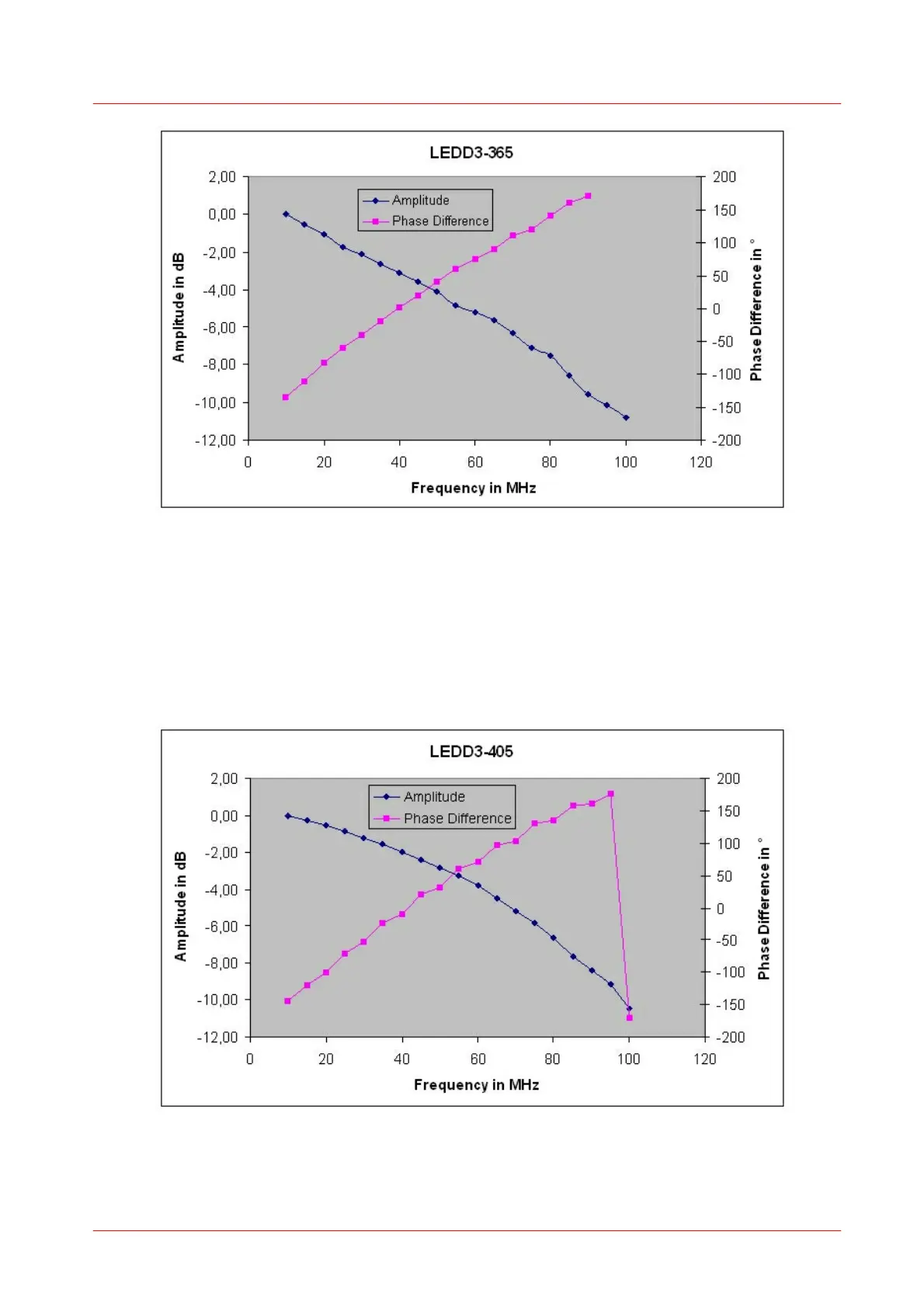

Figure 37 Phase Difference of DC3100-365
7.3.3.2
LED @ 405nm
The DC3100-405 contains the UV LED LZ1-00UA05 from LedEngin. The LED
emits a wavelength at 405nm and an optical power of up to 1000mW.
The 10dB cut-off frequency of the DC3100-405 is 95MHz. The maximum current is
1000mA.
Figure 38 Phase Difference of DC3100-405
