THORLABS DC3100 Series - Configuring a New LED; Figure 29 User Limit Dialog; Figure 30 LED Configuration Menu; Figure 31 LED Maximum Limit

3 Operating the DC3100
DC310024

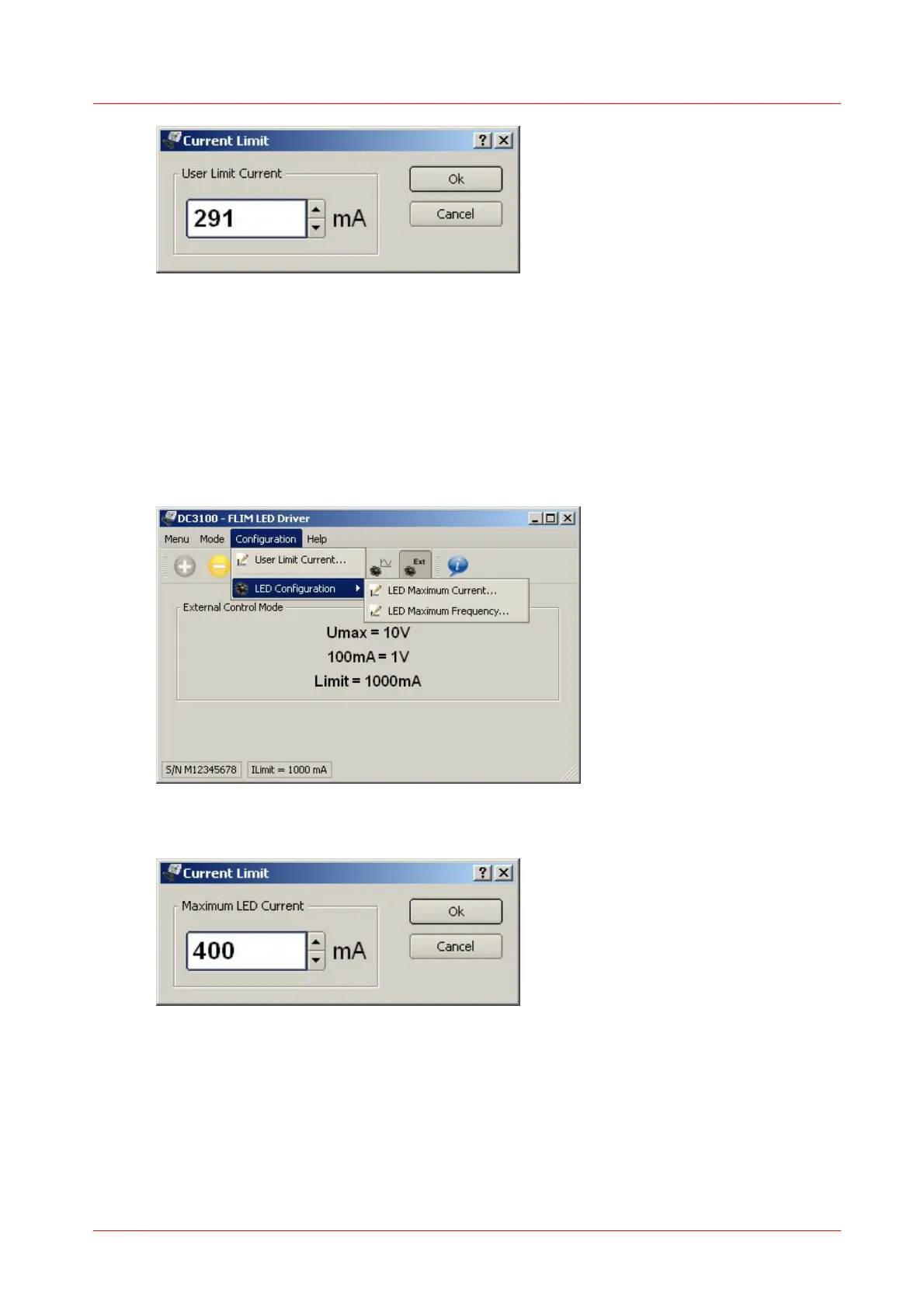

Figure 29 User Limit Dialog
3.2.2.6
Configuring a new LED
The DC3100 - FLIM LED Driver offers the possibility to operate a LED of your
choice.
Use the menu 'Configuration/LED Configuration' to set the new LEDs maximum
current and frequency.
Figure 30 LED Configuration Menu
Figure 31 LED Maximum Limit
