The EI Battery – Add Batteries
EI Residential Solar Solution US Installation Manual | www.tigoenergy.com | Help Center 42

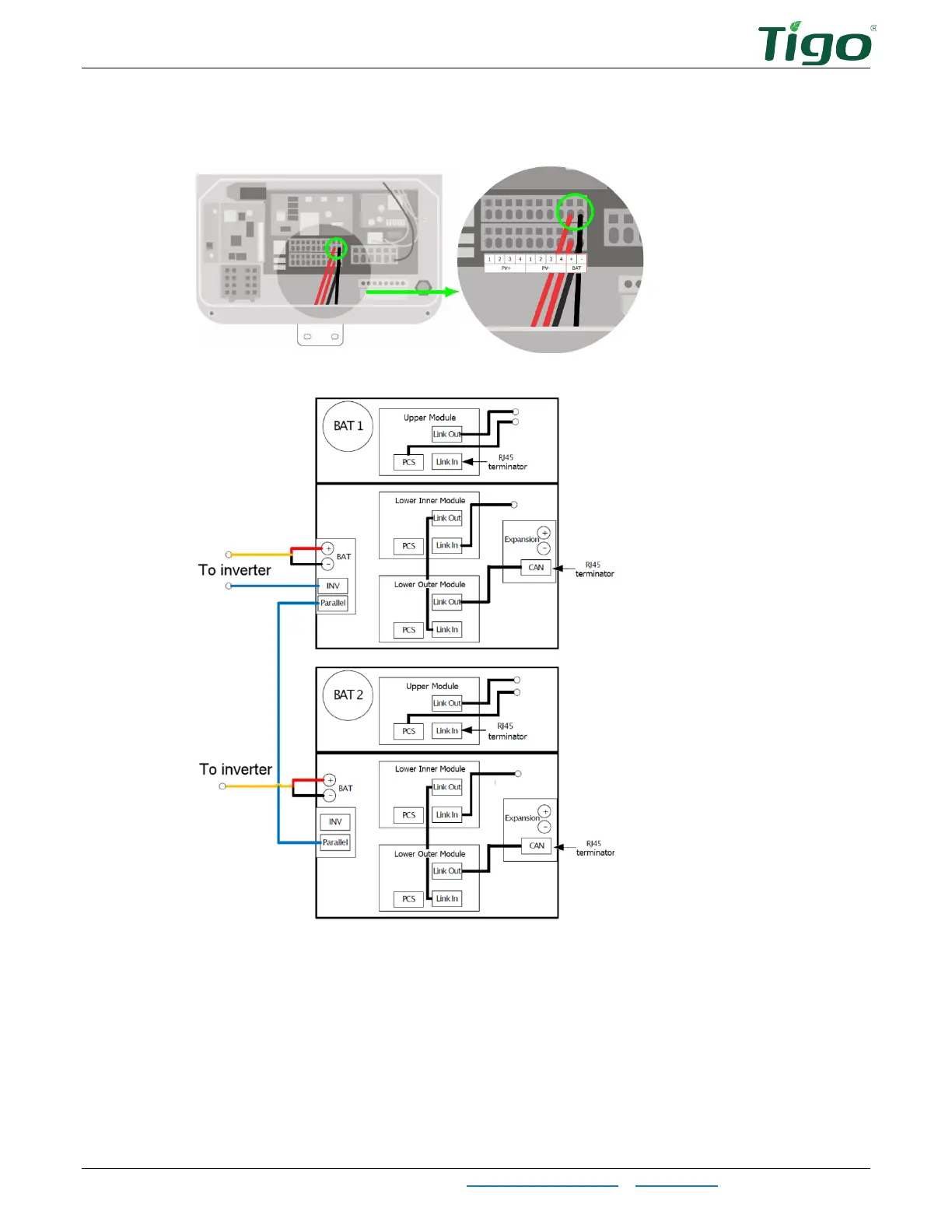

2. Connect two ≤2.5m (7’8”) conductors between the battery #2 BAT+ and BAT–
terminals and the inverter BAT terminals.
12. In the battery expansion wireboxes, connect a terminator to each CAN/COM terminal.
