TAP and TS4 MLPE – Install the Tigo Access Point (TAP)
EI Residential Solar Solution US Installation Manual | www.tigoenergy.com | Help Center 47
TAP and TS4 MLPE
Install the Tigo Access Point (TAP)
Installations equipped with TS4-A-O/S MLPE require a wired TAP connection to the inverter.
A TAP wirelessly communicates with TS4 devices to gather data and perform rapid shutdowns.
The TAP connects to the link via a 4-wire or CAT5/6 cable.
Install the TAP centrally in an array for best coverage. Ensure there are no obstructions that
may interfere with the TAP signal to other TS4 units in the array. If the array has multiple roof
planes, you may need to install another TAP.

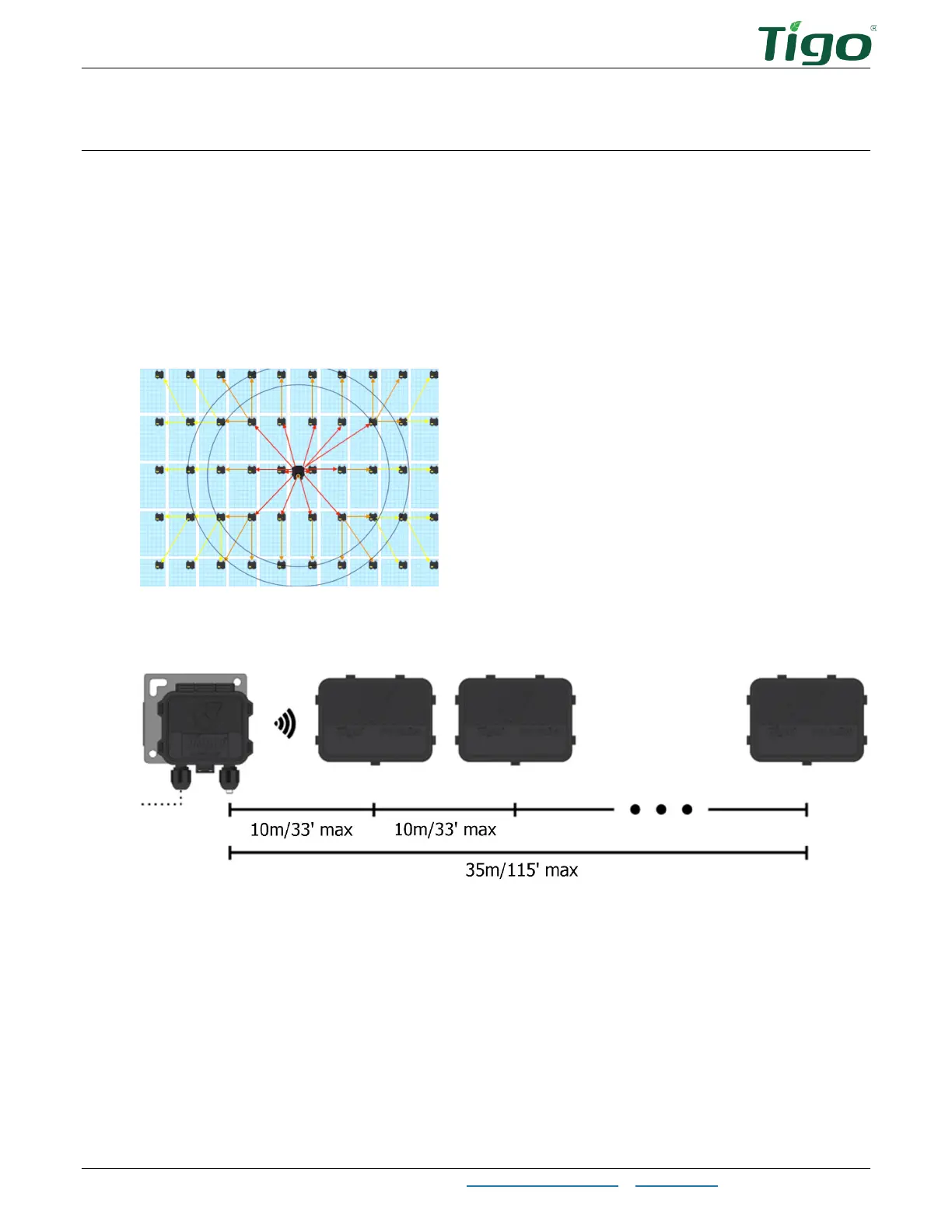

The TAP communicates directly with any TS4 within 10m/33’. Each TS4 can relay data to and
from another TS4 within 10m/33’. The TAP can communicate through relays to any TS4s within
35m/115’.
