The EI Battery – Connect to the Inverter
EI Residential Solar Solution US Installation Manual | www.tigoenergy.com | Help Center 38

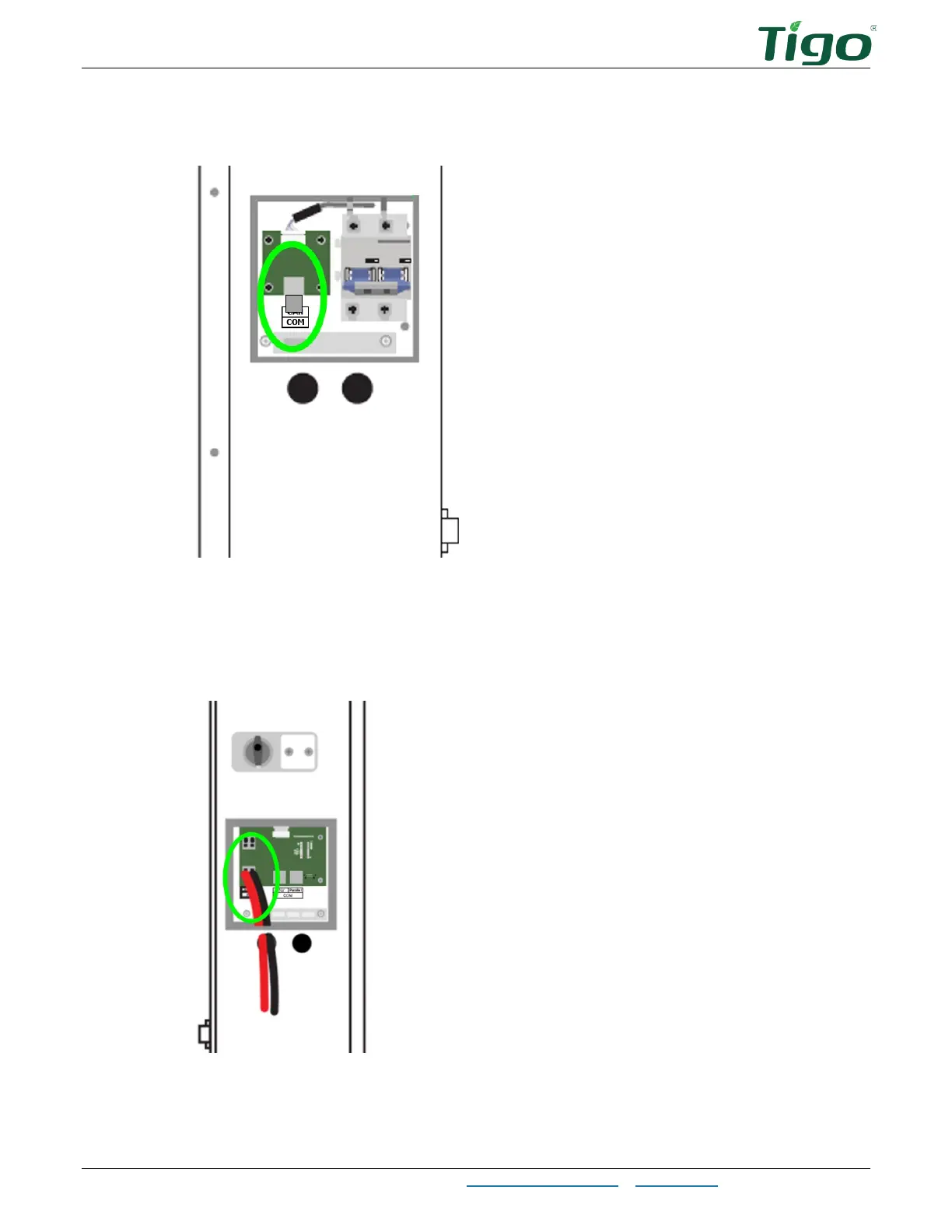

11. Insert an RJ45 terminator in the
CAN/COM
port located in the battery expansion wirebox
on the enclosure right side.
Connect to the Inverter
To connect battery power conductors to the inverter:
1. In the inverter connection wirebox on the enclosure left side, connect two ≤2m/6’7in
conductors to the
BAT+
and
BAT–
terminals.
