Technology
Dimensions 39
TK Elevator
BA, TW45 | 6231003860 | 03/2023

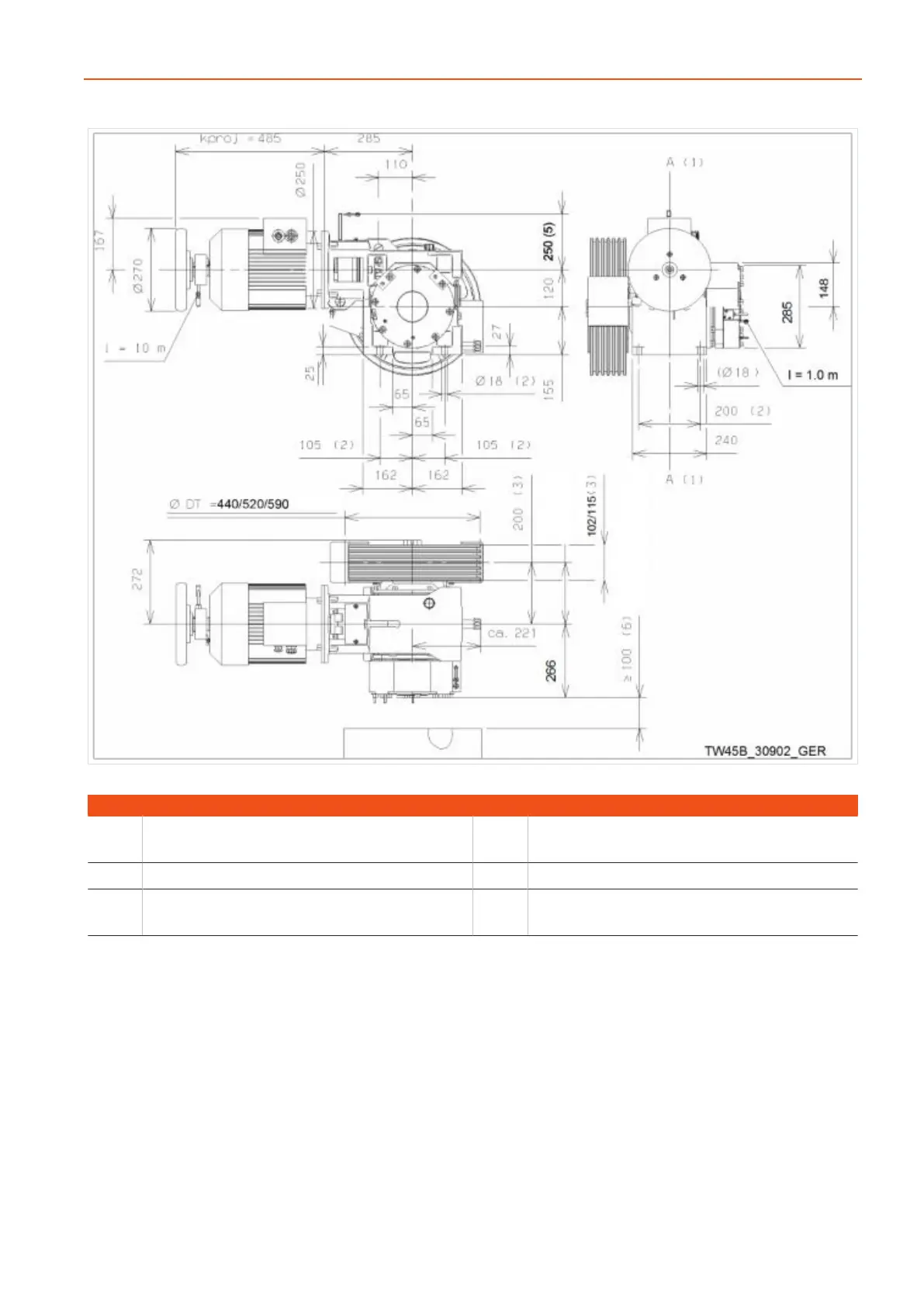

Machine room version / horizontal motor position
Fig.16 ATR_2_21_0035_0
Item Designation Item Designation
1
Traction sheave position on right, mirror-in-
verted to A-A
2
Screwed connections - machine base frame
M16 -8.8
3 with DT = 440 / 520 / 590
5
Manual brake release for Mayr brake
RSZ125-2x50 Nm
6
Clearance for manual release of the emer-
gency brake, NBS
