TKE TW45 - Checking the oil level; Lubrication

Work on the product
Checking the oil level 63
TK Elevator
BA, TW45 | 6231003860 | 03/2023
Item Designation Item Designation
15 Anchor disc 16
Fastening screws
Brake 3x M8 -8.8
17 Magnetic coil 18
Earth braid with screwed con-
nections
19 Setting screw for microswitch 20 Microswitch
During work on the brake, comply with information and details of the brake
manufacturer
Chap.10P.75.

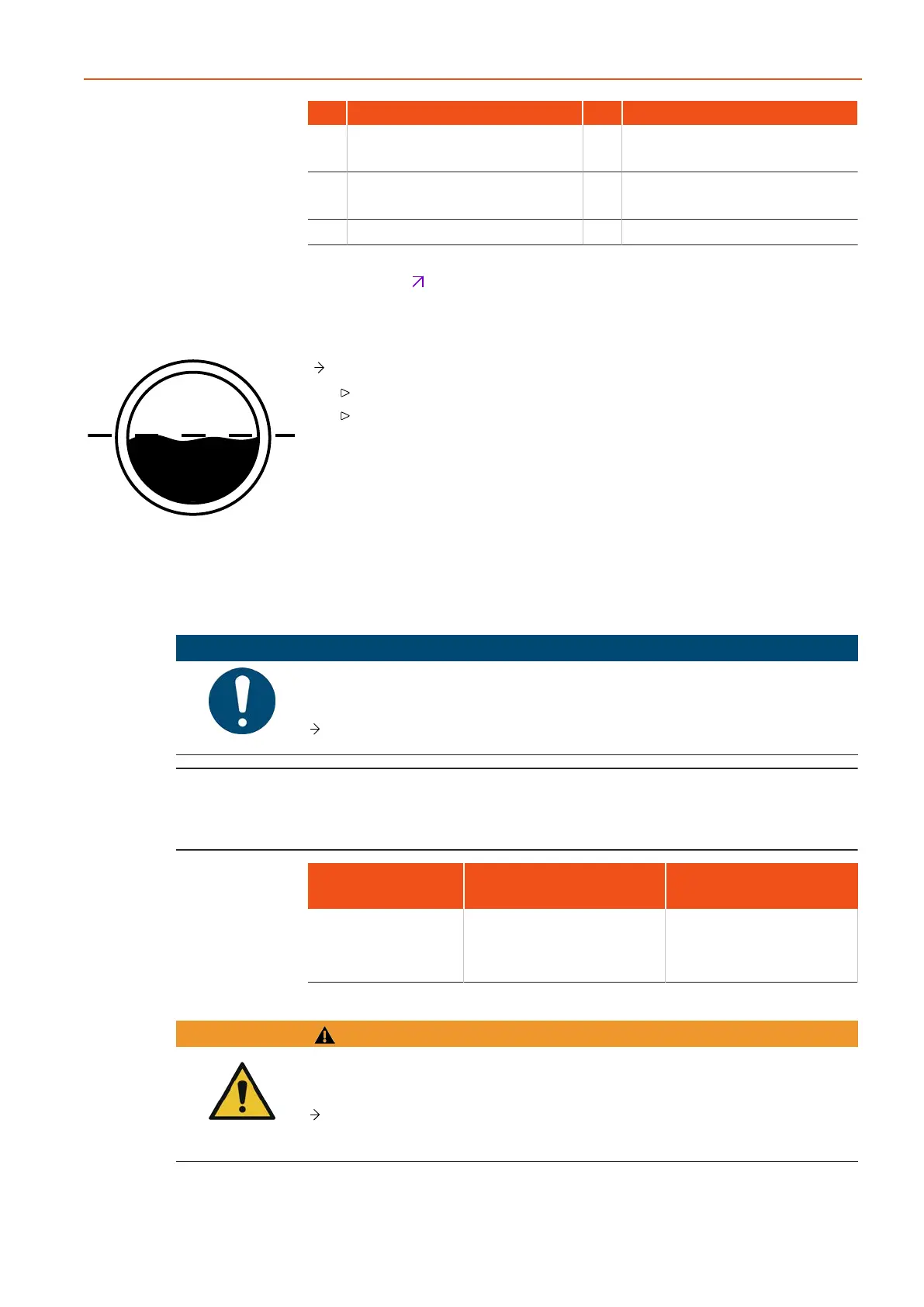

7.3 Checking the oil level
4
5
6
7 8
Fig.32 ATR_2_12_0319_0
Check the oil level.
The oil level should be ± 5 mm outside of the centre.
To top up, the machine should be out of service for 5 minutes.
7.4 Lubrication
NOTICE
Bearing damage!
Damage to the gear due to unsuitable lubricant.
Only use the specified gear oil.
i
Initial lubrication took place on delivery.
Lubricant Replacement interval
Motor position/filling
quantity
Synthetic gear oil
SM1
For the first time after 4
years
then every 8 years
vertical approx. 5.0 litres
horizontal approx. 4.0
litres
Tab.20 ATR_1_21_0024_0
WARNING
Danger of scalding
Long-term car operation heats up the oil!
During work on the drive, wait until the housing has cooled down, if ne-
cessary.
1. Heat the gear to operating temperature (approx. 35°C) before replacing.
