Installation
Electrical connection 57
TK Elevator
BA, TW45 | 6231003860 | 03/2023
WARNING
Live parts!
Electric shock.
When connecting the machine, comply with the relevant regulations.
Never work when the voltage is switched on!
Ensure reliable earthing (loop resistance).
Here, configure connections in both terminal boxes.
6.7.1 Connecting the machine
NOTICE
Incorrectly connected cables!
Can lead to impairment or loss of function of the product.
On connecting the motor, comply with the terminal connecting plan on
the back of the cover on the motor terminal box and/or the motor con-
nection terminal diagram.
In the case of frequency-controlled machines, ensure EMC-compliant in-
stallation of the motor and posistor (use suitable shielding).

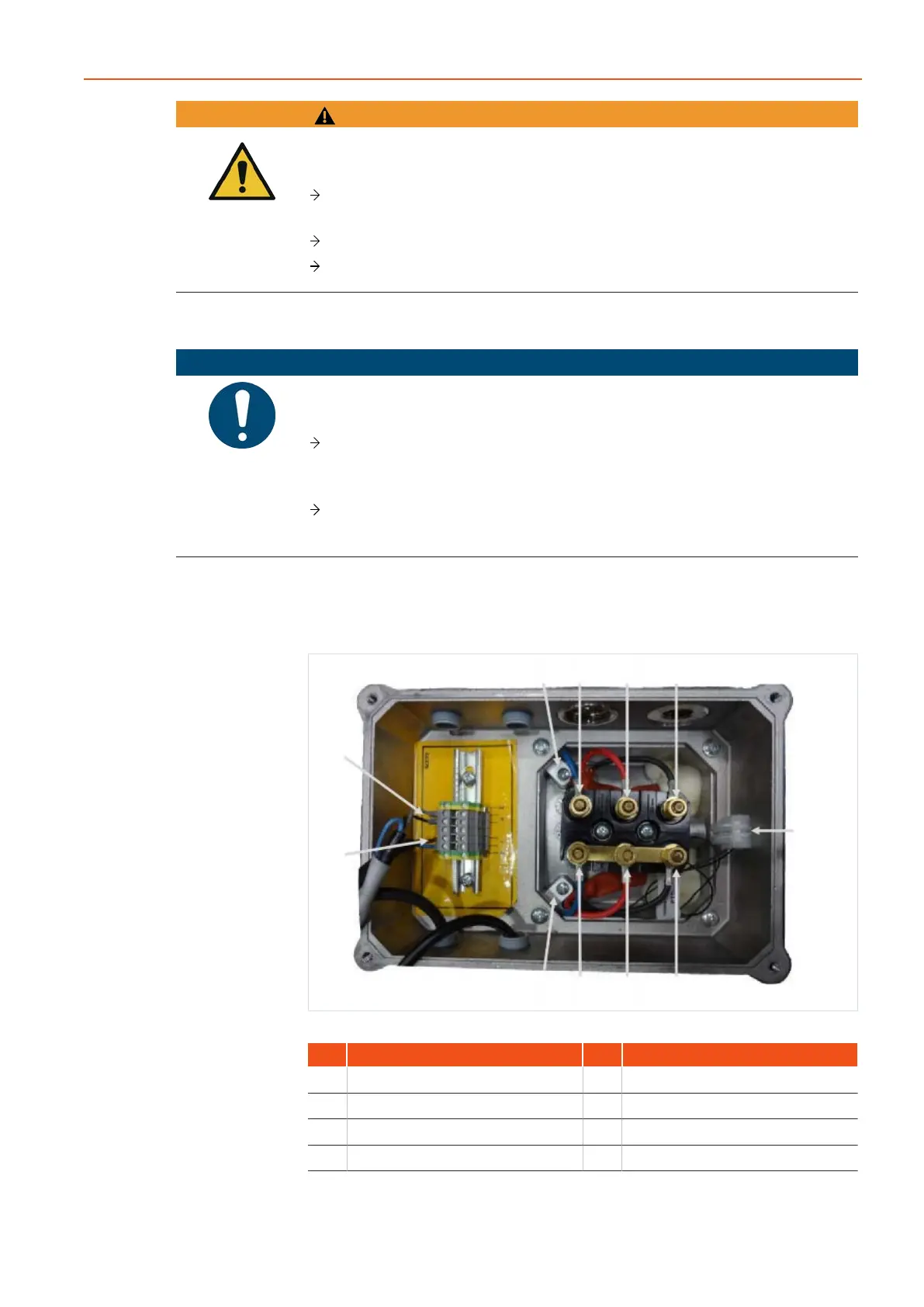

Motor connection box - Make: CEG
Representation in star circuit Υ and various versions. If necessary, reconnect
in delta section Δ according to wiring diagram
Fig.28 ATR_2_21_0052_0
Item Designation Item Designation
1 U1 2 V1
3 W1 4 Connection for PE conductor
5 Posistor temperature sensor 6 Posistor temperature sensor
7 W2 8 U2
