TKE TW45 - Connecting the motor line

58
Installation
Electrical connection
TK Elevator
BA, TW45 | 6231003860 | 03/2023
Item Designation Item Designation
9 V2 10
Connection for brake mi-
croswitch
11
Connection for brake magnet
coil
230 / 460 V motors made by EMOD
Drehstrommotor
Three phase motor
Art.: 218860
1+2 Kaltleiteranschluss / connection of thermistors
Keine Spannung über 2,5V anlegen /
Only apply voltages ≤2.5V
Anschluss der Kaltleiterfühler /
connection of thermistor protection
1
2
L1; L2; L3 = Motoranschluss / connection of motor
Schaltung
connection
niedrige Spannung /
low voltage
U5
V5 W5
L1
L2 L3
1U
1V 1W
2U
2V
2W
Schaltung
connection
hohe Spannung /
high voltage
L1; L2; L3 = Motoranschluss / connection of motor
U5
V5 W5
L1
L2 L3
1U
1V 1W
2U
2V
2W
Parallel /
parallel
Reihe /
series

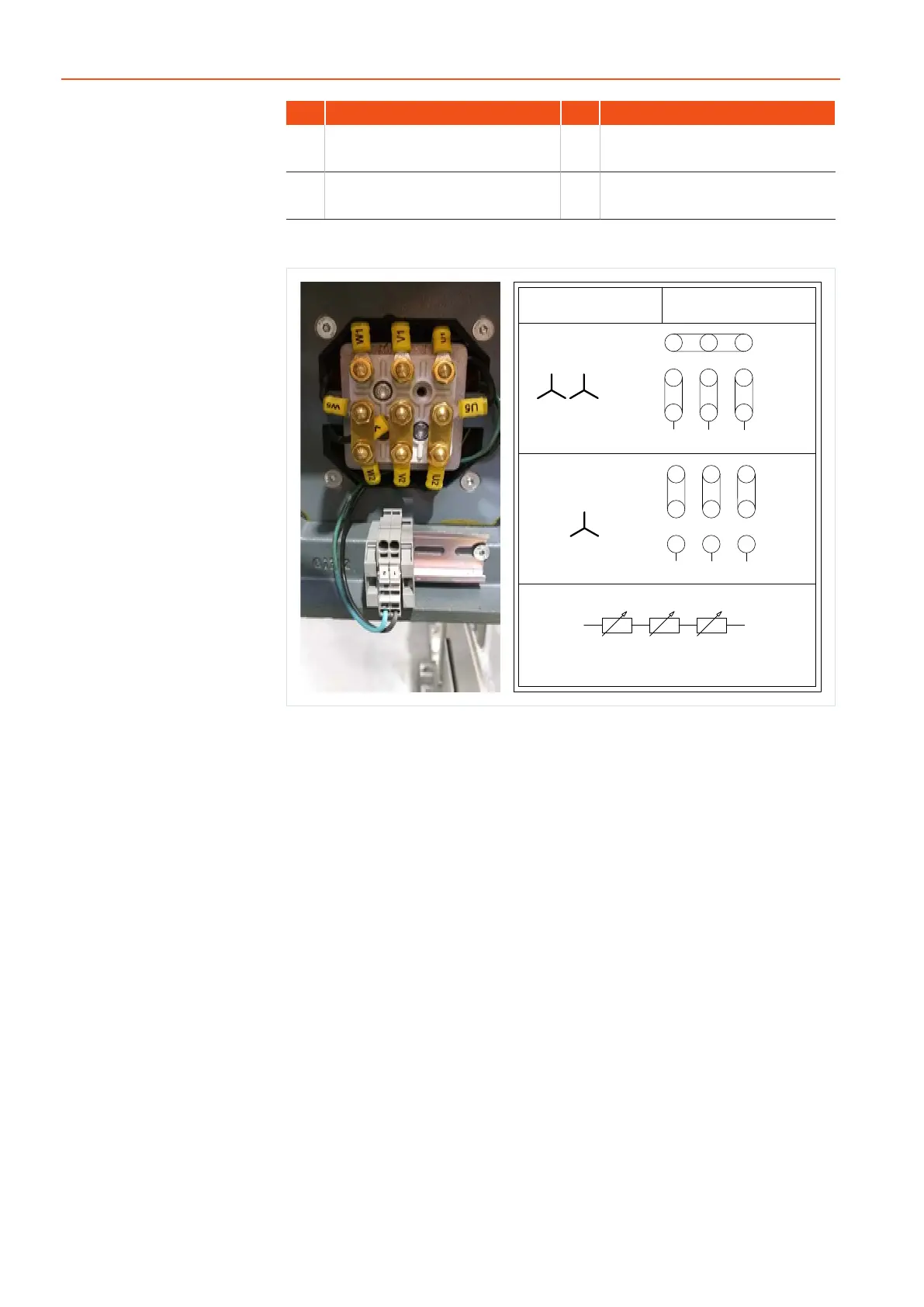

Fig.29 ATR_2_12_0160_0
6.7.2 Connecting the motor line
1. Strip the insulation from the connection line.
2. Route cable through the cable gland.
3. Connect the PE conductor to the screwed connection specifically de-
signed for the purpose.
4. Connect the three motor wires to the terminals U, V and W as specified in
the terminal connecting plan.
5. Pull the shielding braid evenly over the lamellar insert.
6. The braid must not protrude beyond the lamellar insert into the thread.
7. Pull the cable through the cap nut.
8. Push the cap nut over the shielding.
