TKE TW45 - Electrical connection

56
Installation
Electrical connection
TK Elevator
BA, TW45 | 6231003860 | 03/2023
4
4
4
3
2
1
4
4
4
3
2
1
max. 5 mm

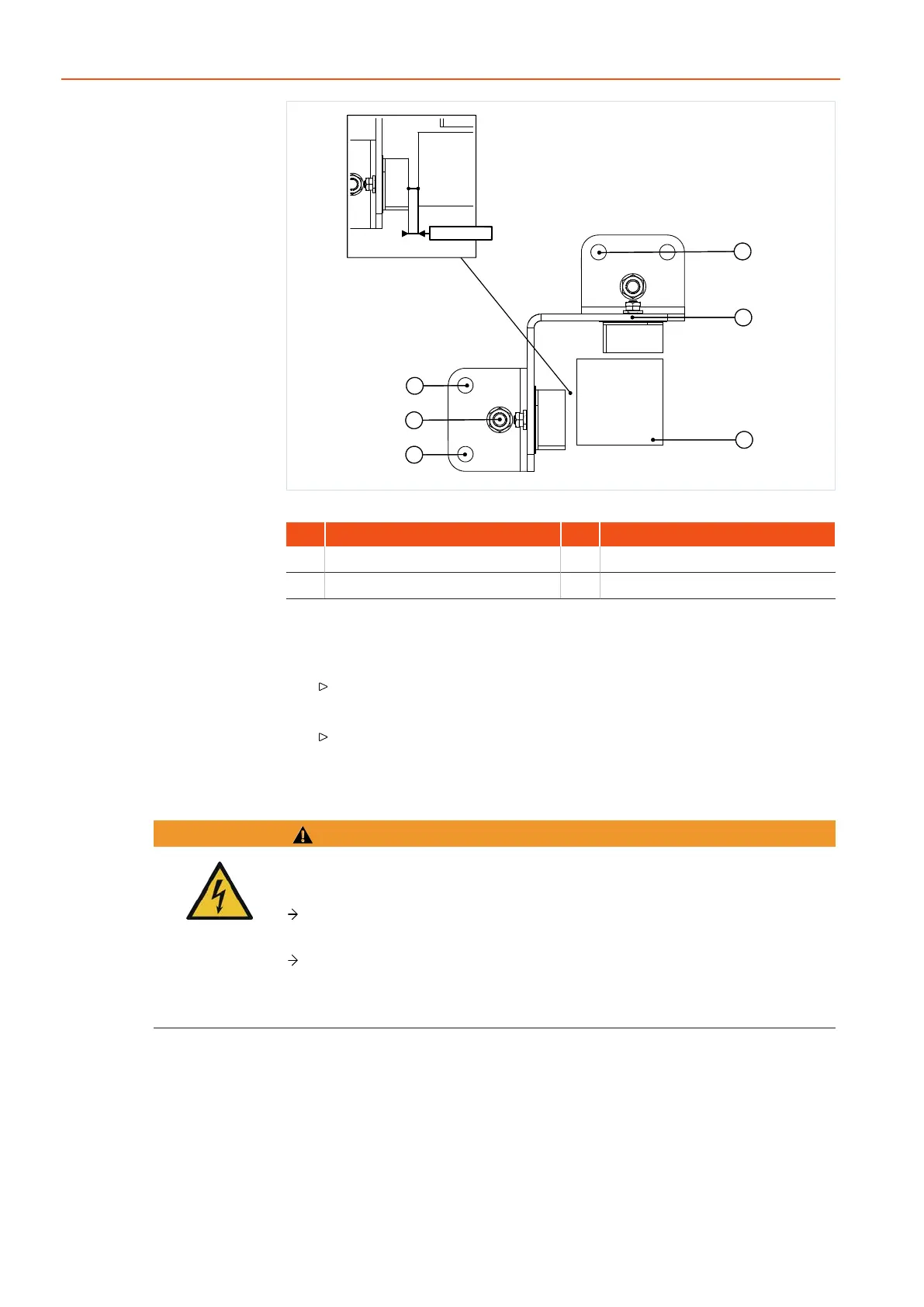

Fig.27 ATR_2_00_0002_0
Item Designation Item Designation
1 Shift protection 2 Machine base frame
3 Anchoring device 4 Alternative holes
1. Position the shift protection elements contact-free with a slight clearance
(maximum 5 mm) to the machine base frame and make marks.
2. Drill holes for the anchoring devices at the marked positions.
If there is steel reinforcement in the concrete, use alternative holes.
3. Secure the shift protection elements with 2 anchoring devices.
Use 1 anchoring device per tab.
6.7 Electrical connection
WARNING
Inadequate connection
Electric shock. Damage to drive.
Earth the motor and brake magnet in accordance with country-specific
regulations.
Electrical connections must correspond to at least the protection class in
accordance with the name plate and/or required country-specific protec-
tion class.
