Work on the product
Lubrication
TK Elevator
BA, TW45 | 6231003860 | 03/2023
2. Drain off the gear oil by removing the cap on the oil drain pipe.
3. Collect the old oil in a container specifically designed for the purpose.
4. Empty the gear and close off the oil drain pipe with PTFE sealing tape.
Check for leakage.
5. Remove the red locking screw "
OIL
" and fill the gear housing until the pre-
scribed oil quantity is reached.
6. Remove upper handhole cover and fill the gear housing until the pre-
scribed oil quantity is reached.
7. Check the level at the oil gauge glass.
8. Use the dipstick to check the level.
9. Never mix different types of oil
10. Do not dispose of oil where it can enter the groundwater.
11. Dispose of old oil as well as cloths contaminated with oil and grease ac-
cording to prevailing regional regulations.
12. Use the gear oil SM1/220 approved by TK Aufzugswerk GmbH.
13. TK Aufzugswerke GmbH will not be held liable for damage resulting from
the use of non-approved lubricants.
Vertical motor position

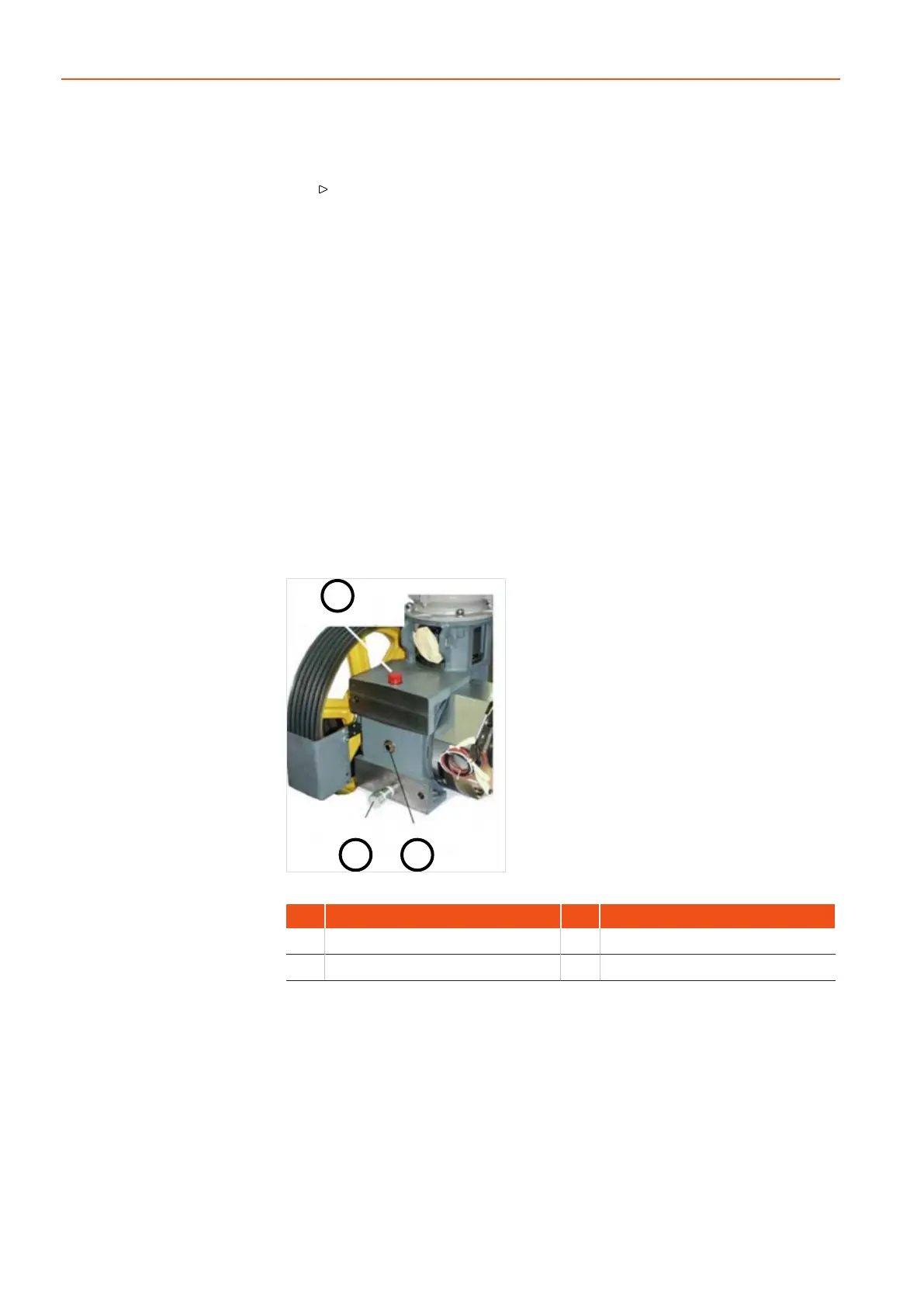

Fig.33 ATR_2_12_0059_0
Item Designation Item Designation
1 Ventilation, filling opening 2 Oil gauge glass
3 Oil drain 4
