Installation
Mounting the frame with rope pulley 53
TK Elevator
BA, TW45 | 6231003860 | 03/2023

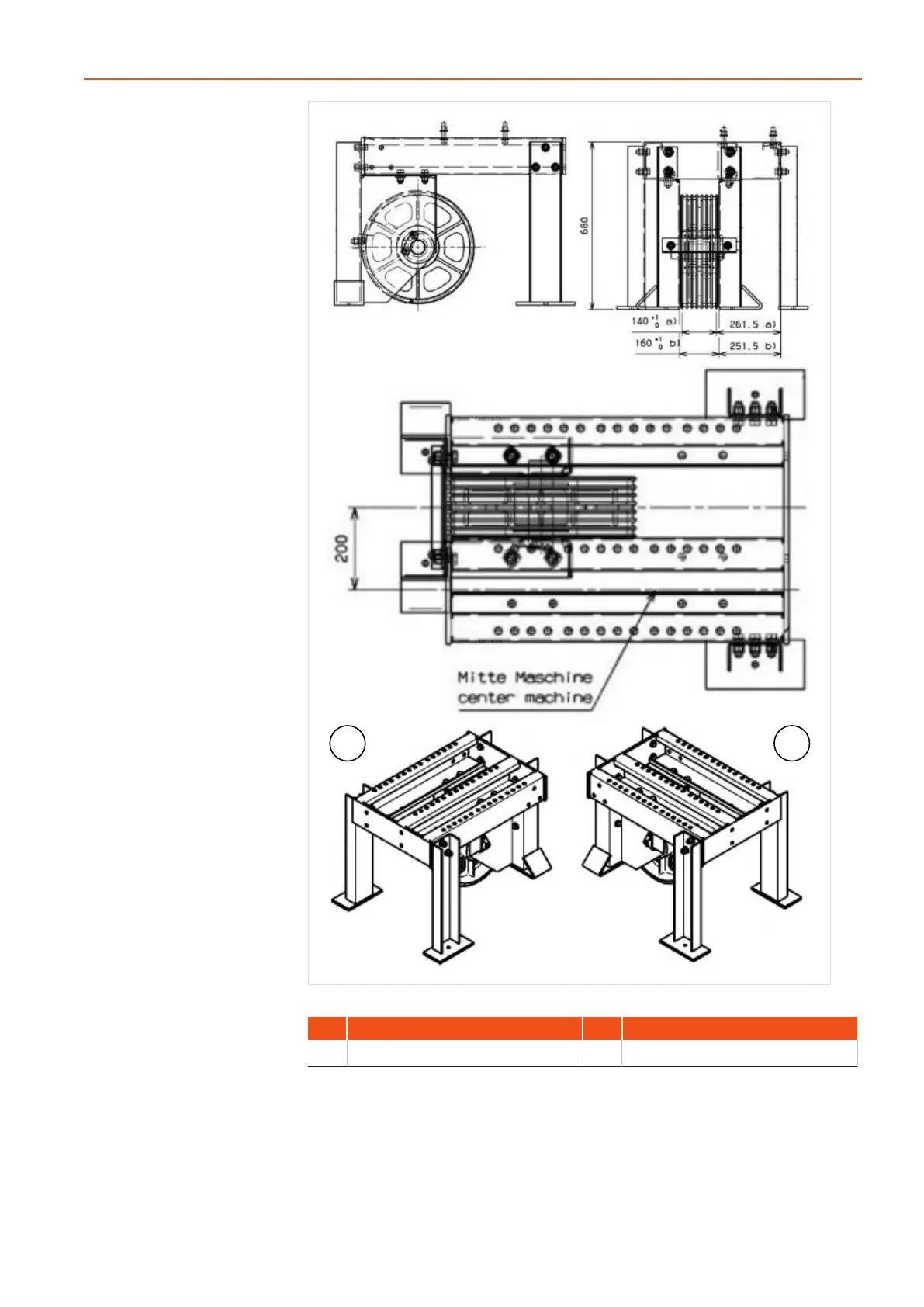

Fig.25 ATR_2_21_0215_0
Item Designation Item Designation
1 Left-hand version 2 Right-hand version
1. The version can be found in the general arrangement drawing.
2. Loosely assemble the supplied frame in the machine room.
3. Mount the supports with additional drilled holes and pulley support on the
side of the diverter pulley.
4. Mount and secure the diverter pulley with axle on the pulley supports.
