8.8. Equalizer Settings
ON

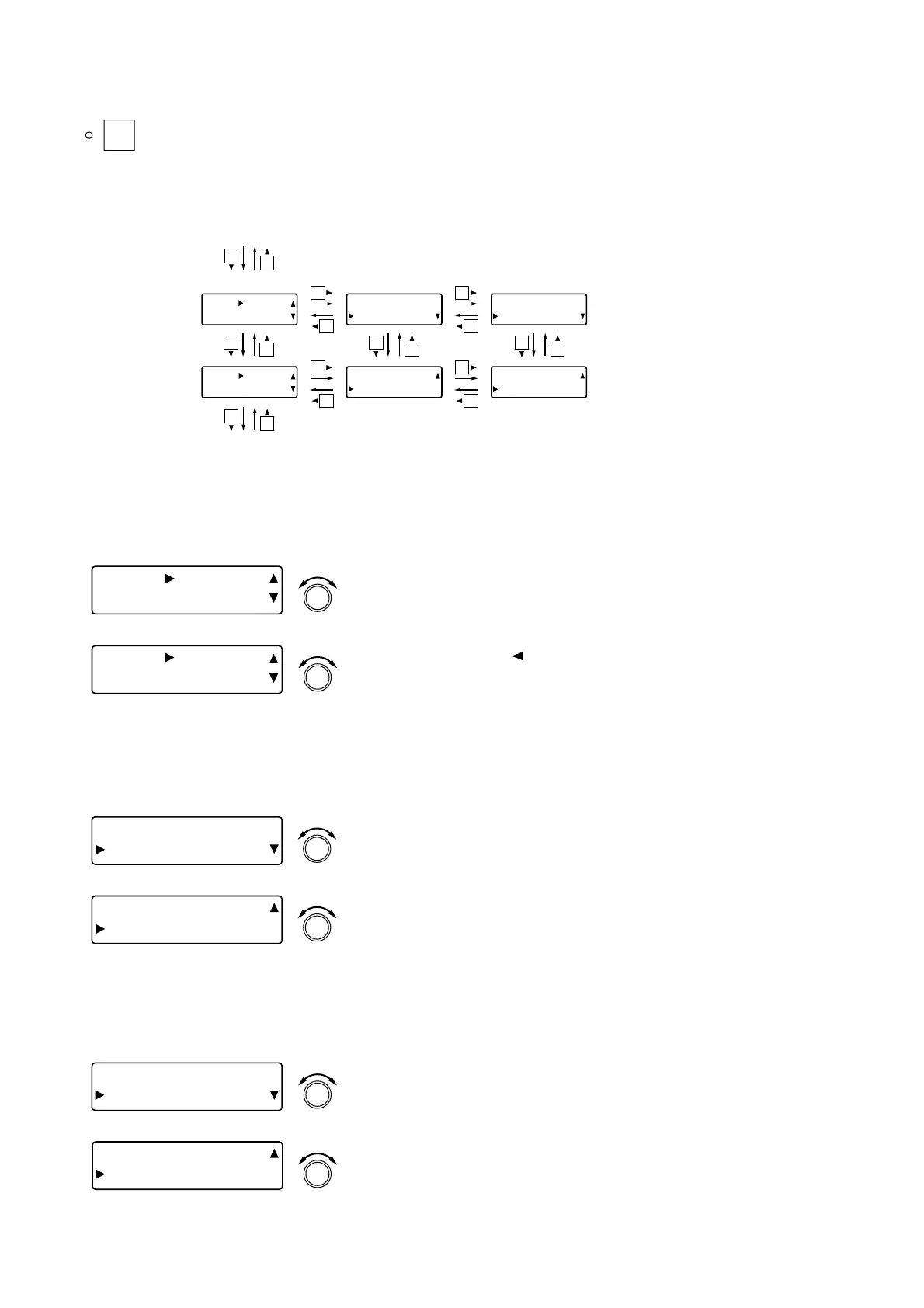

When the (low or high frequency) Equalizer setting screen is displayed, equalization for the
displayed channel can be enabled or disabled by pressing the function ON/OFF key. When enabled
(ON), the function ON/OFF indicator lights.
(Low frequency)
(High frequency)
Gain Center frequency Q
High-pass filter settings (previous page)
Compressor/auto-leveler mode selection (next page)
[IN 1] PEQ-L
FREQ 63 0 . 0H
z
[IN 1] PEQ-H
FREQ 1 . 25kH
z
[IN 1] PEQ-L
GAIN +0.0d
B
[IN 1] PEQ-H
GAIN +0.0d
B
[IN 1] PEQ-L
Q 4.31
8
[IN 1] PEQ-H
Q 4.31
8
8.8.1. Gain settings
[IN 1] PEQ-L
GAIN +0.0d
B
[IN 1] PEQ-H
GAIN +0.0d
B
(Low frequency)
(High frequency)
PARAMETER
PUSH-ENTER
CHANGE
PARAMETER
PUSH-ENTER
CHANGE
• Rotate the Setting knob to set the gain.
Parameter setting range: –15 to +15 dB in 0.1 dB steps
• Pressing an Input channel selector key permits the equalizer gain
to be set for that channel. The [IN 1] indication changes to the
selected channel number indication.
• The setting screen reverts to the Input/Output Gain Setting
screen when the shift key is pressed.
8.8.2. Center frequency settings
[IN 1] PEQ-L
FREQ 630.0H
z
(Low frequency)
(High frequency)
PARAMETER
PUSH-ENTER
CHANGE
PARAMETER
PUSH-ENTER
CHANGE
[IN 1] PEQ-H
FREQ 1.25kH
z
• Rotate the Setting knob to set the center frequency.
Parameter setting range: 20 Hz – 20 kHz in 1/24 octave steps
• Pressing an Input channel selector key permits the equalizer
center frequencies to be set for that channel. The [IN 1] indication
changes to the selected channel number indication.
[Screen display operations]
8.8.3. Q settings
(Low frequency)
(High frequency)
PARAMETER
PUSH-ENTER
CHANGE
PARAMETER
PUSH-ENTER
CHANGE
[IN 1] PEQ-L
Q 4.31
8
[IN 1] PEQ-H
Q 4.31
8
• Rotate the Setting knob to set the Q.
Parameter setting range: 0.267 – 69.249 (96 points)
• Pressing an Input channel selector key permits the equalizer Q to
be set for that channel. The [IN 1] indication changes to the
selected channel number indication.
