3-45
Chapter 3 INSTALLATION AND SETTING PROCEDURES (HARDWARE)
Cable
RM-300X alone
RM-300X +
RM-210F x 1
RM-300X +
RM-210F x 2
RM-300X +
RM-210F x 3
STP Category 5 336 m 251 m 200 m 166 m
Cable
RM-300X +
RM-210F x 4
RM-300X +
RM-210F x 5
RM-300X +
RM-210F x 6
RM-300X +
RM-210F x 7
STP Category 5 142 m 124 m 110 m 98 m
No. of extension
units
No. of extension
units

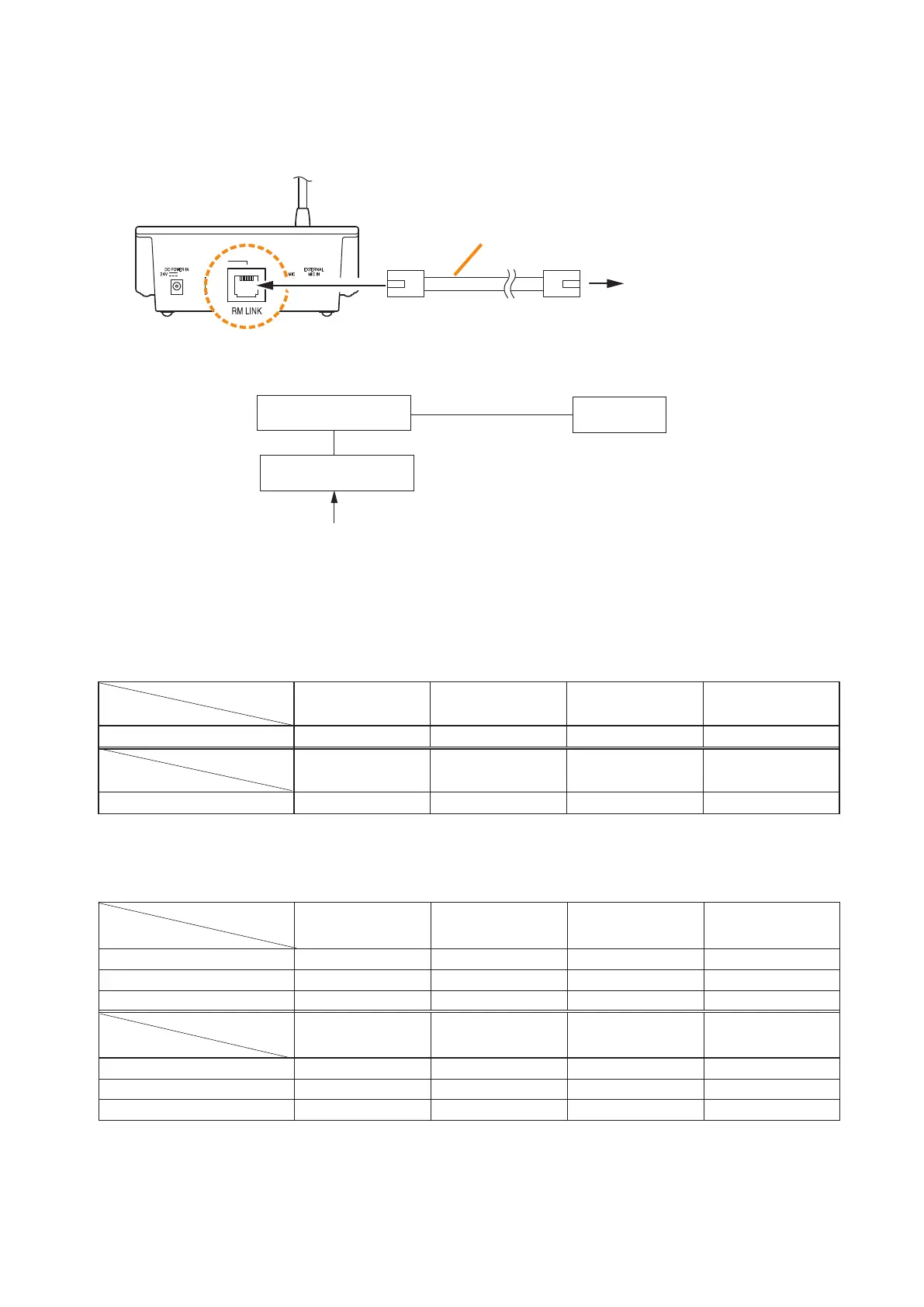

4.2.4. RM-300X connection
RM-300X rear
Connection cable
(with RJ45 connectors)
To VX-3000F
• WhenVX-3000DSisoperatingonACpower
The following table shows the maximum cable distance when STP Category 5 straight cable (with RJ45
connectors) is used.
To make longer cable lengths than those shown in the above table, use over 4-pair shielded CPEV cable. (For
the cable connection, see p. 3-47.)
The relationship of the CPEV cable conductor diameter to the maximum cable distance is as follows:
Cable
RM-300X alone
RM-300X +
RM-210F x 1
RM-300X +
RM-210F x 2
RM-300X +
RM-210F x 3
ø0.65 mm 555 m 415 m 331 m 275 m
ø0.9 mm 1081 m 808 m 644 m 535 m
ø1.2 mm 1200 m 1200 m 1141 m 948 m
Cable
RM-300X +
RM-210F x 4
RM-300X +
RM-210F x 5
RM-300X +
RM-210F x 6
RM-300X +
RM-210F x 7
ø0.65 mm 235 m 205 m 182 m 163 m
ø0.9 mm 457 m 399 m 354 m 317 m
ø1.2 mm 810 m 707 m 626 m 562 m
No. of extension
units
No. of extension
units
Connect the RM-300X to either of the RS LINK A or RS LINK B connector of the VX-3000F.
The maximum cable distance depends on how power is supplied.
[When power is supplied from the VX-3000F used with the VX-3000DS]
VX-3000F
RM-300X
VX-3000DS
AC power
or
Battery
