NOMENCLATURE AND FUNCTIONS
24. Audio input volume controls
Adjust the input volume of each input channel.
Rotating the control fully counterclockwise mutes
the input sound source connected to that channel.
25. Module slots
Accommodate the VX-015DA, VX-030DA, or VX-
050DA, Digital Power Amplier Module and VX-
300LO Line Output Module. The maximum number
of the connectable units is as follows.
VX-3004F: 4 units
VX-3008F: 3 units for the digital power amplier
module, and 2 units for the line output
module
VX-3016F: 2 units
26. Reset key
Pressing this key reactivates the VX-3000F.
27. ID switch
Sets the VX-3000F's ID number (device number).
28. DA control link connector
Connect this connector to the DA control link
connector of the installed digital power amplier
module or the line output module.
29. DIP switch
[VX-3004F]
• Switches 1 – 6
These switches are not used.
• Switch 7
Used when conrming the rmware version.
(See p. 4-2.)
• Switch 8
Used to set the IP address. (See p. 3-10.)
[VX-3008F]
• Switches 1 – 3
Used to allocate speaker lines. (See p. 3-5.)
• Switches 4 – 6
These switches are not used.
• Switch 7
Used when conrming the rmware version.
(See p. 4-2.)
• Switch 8
Used to set the IP address. (See p. 3-10.)
[VX-3016F]
• Switch 1
Used to place the unit in 2 channel mode
operation. (See p. 3-5.)
• Switches 2 – 6
These switches are not used.
• Switch 7
Used when conrming the rmware version.
(See p. 4-2.)
• Switch 8
Used to set the IP address. (See p. 3-10.)
Note
By default, switches 1 7 are set to OFF, and
switch 8 to ON.
30. Impedance initialize key
Press this key to acquire the initial value of the
speaker line impedance as failure detection is
executed on the basis of the impedance change.
31. DA output link connector
Connect this connector to the DA output link
connector of the installed digital power amplier
module.
This is an electric hazard mark.
There is the possibility of an electric shock when connecting cables.
Make connections when power is not supplied to the Digital Power
Amplifier Modules VX-015DA, VX-030DA, and VX-050DA.

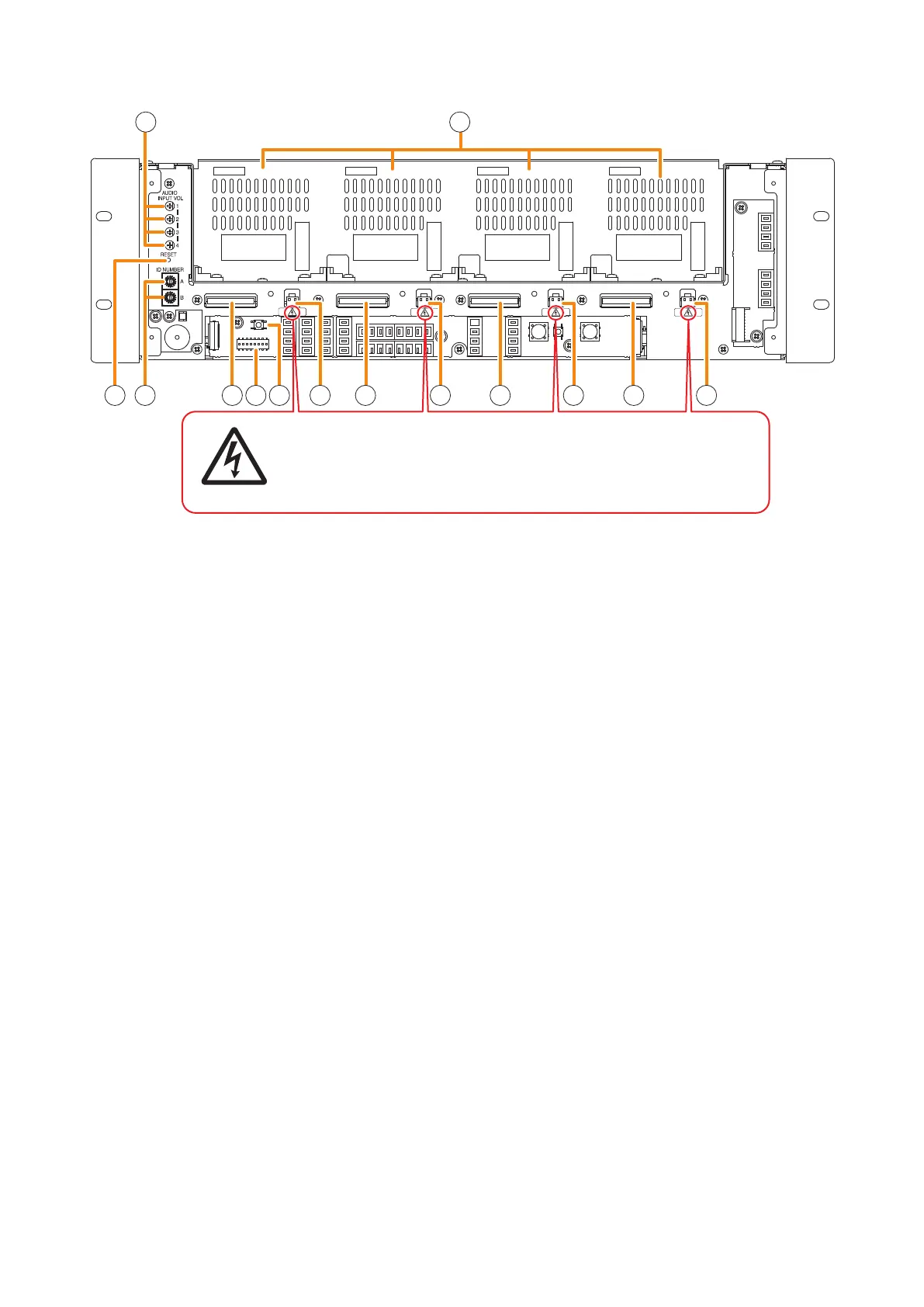

24 25
