Chapter 2 NOMENCLATURE AND FUNCTIONS
9. RM-210F REMOTE MICROPHONE EXTENSION
Each connected RM-210F Extension unit adds 10 Function keys to the base RM-300X.

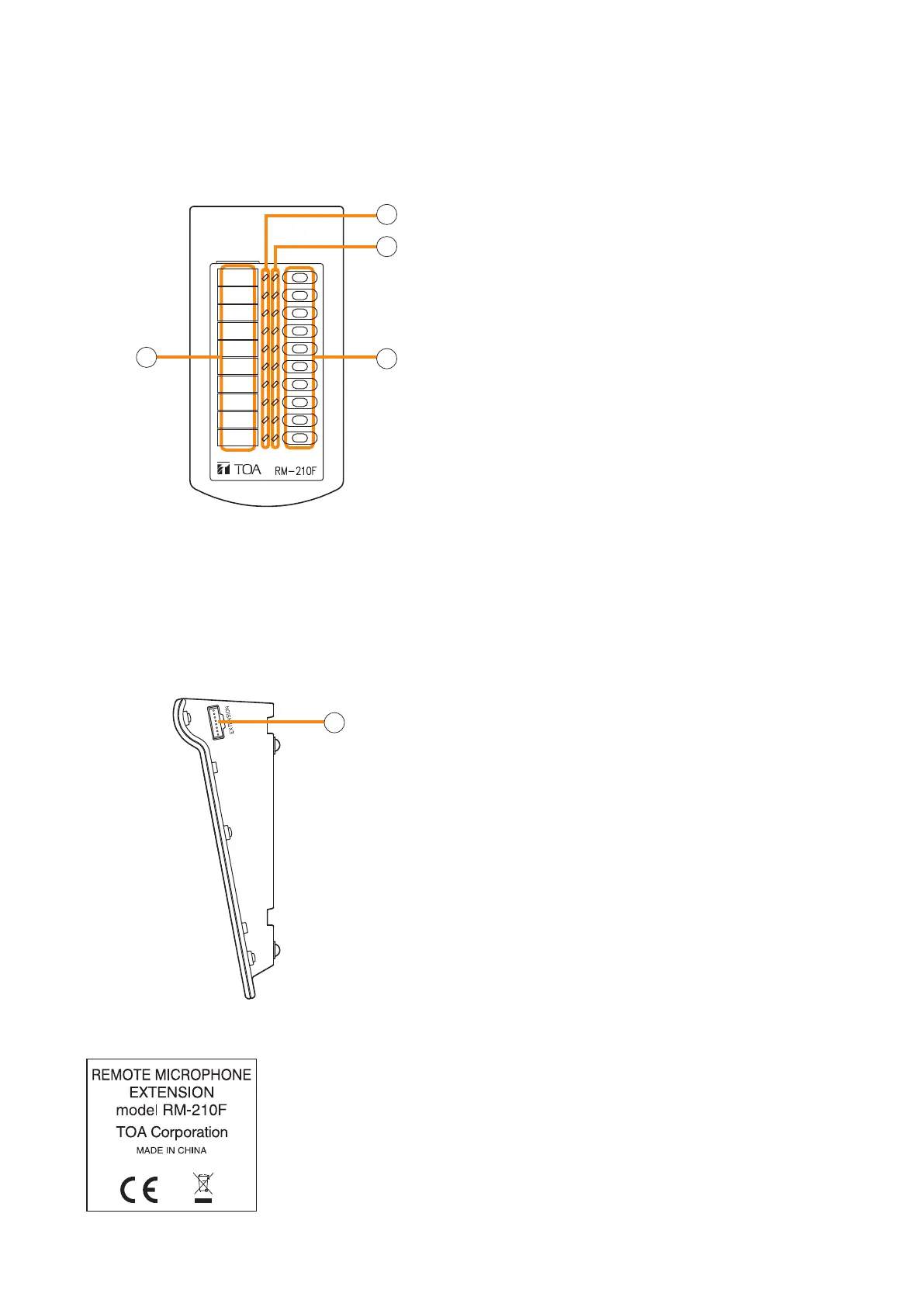

[Top]
1
3
2
4
1. Indication label insert slot
The label can be printed using the VX-3000 Setting
Software. (See the separate Setting Software
Instructions, "PRINTING LABELS FOR REMOTE
MICROPHONES.")
2. Status indicators (Red/Yellow/Green)
Light, ash, or go off depending on the current
operation state of function keys.
3. Selection indicators (Green)
Light or go off depending on the current operation
state of function keys.
4. Function keys (1 – 10)
Positioned in top-down order (1, 2 ... 10).
Pressing a specic function key executes the
function that has been assigned to that key by the
VX-3000 Setting Software.
Assignment of functions to specic keys is done
using the VX-3000 Setting Software. (See the
separate Setting Software Instructions, "RM Event
Settings.)
5
[Side]
5. RM connection terminal [EXTENSION]
Connect the RM-300X or other RM-210F to this
terminal. (See p. 3-45.)
Note
Another same terminal is on the other side.
Note
The Equipment marking label shown at left is afxed to the unit's bottom side.
