Toa VX-015DA - Rack Mounting

3-55
Chapter 3 INSTALLATION AND SETTING PROCEDURES (HARDWARE)

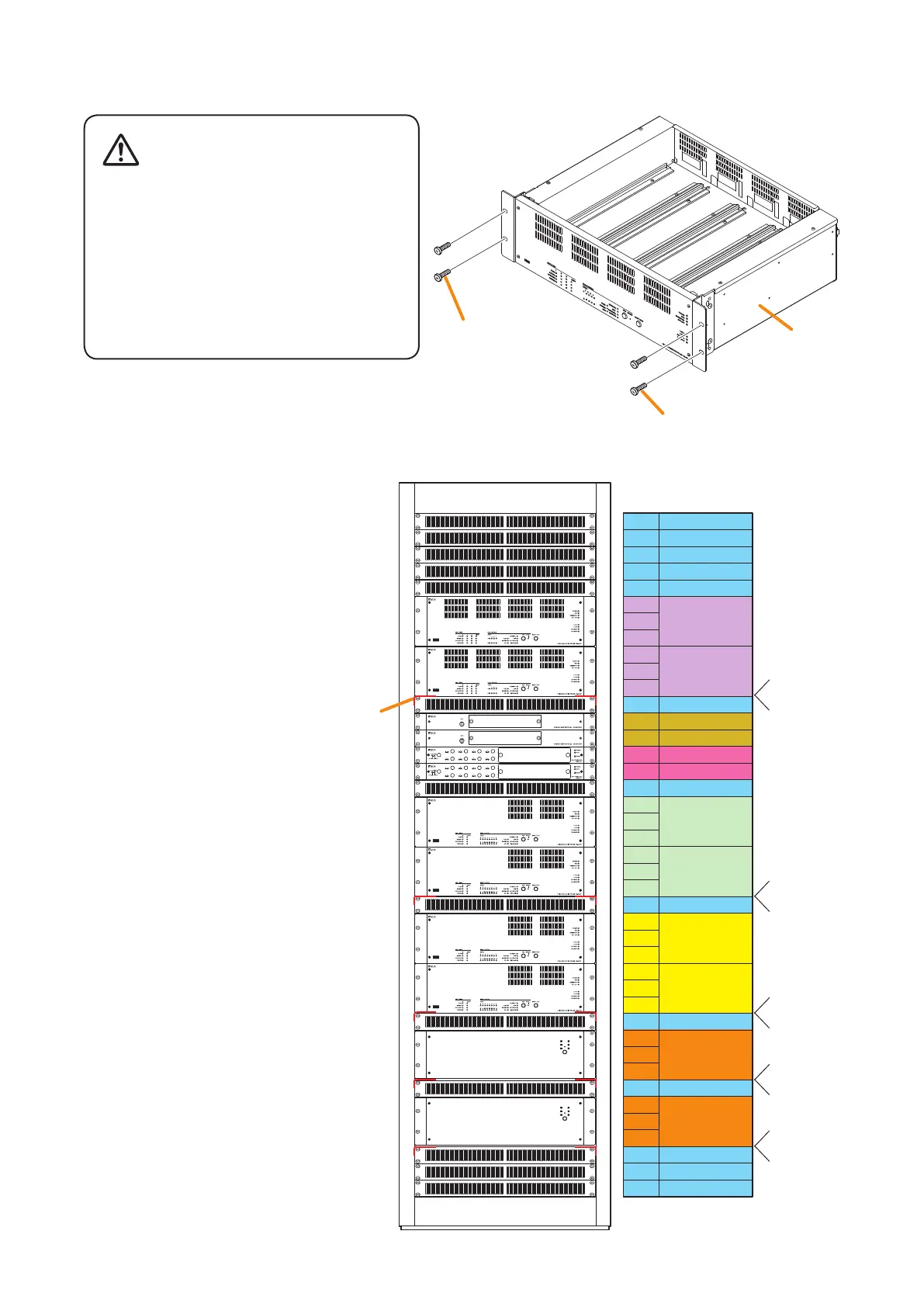

7. RACK MOUNTING
Rack-mounting screw 5 x 12
(supplied with the VX-3000F)
Rack-mounting screw
VX-3000F
• (Applicable to VX-3000F only)
The supplied rack-mounting screws can be
used for the TOA equipment rack only. Do
not use them for other racks.
• (Applicable to VX-3000DS and VX-3150DS
only)
Rack-mounting screws are not supplied with
the unit. Prepare them that are appropriate
for the equipment rack.
CAUTION
[Perforated panel mounting]
Be sure to mount the PF-013B (1U) to the
locations described below.
• Above the 2 installed VX-3000F units
• Above and below the 1 installed VX-
3000DS or VX-3150DS unit
• At the uppermost and the lowermost
positions of the cabinet rack
[Supporting runner installation]
Be sure to install the supporting runner to
the locations described below.
• Underside of the 2 installed VX-3000F
units
• Underside of the 1 installed VX-3000DS
or VX-3150DS unit
Supporting
runner
1
PF-013B
2
PF-013B
3
PF-013B
4
PF-013B
5
PF-013B
6
7
VX-3004F
8
9
10
VX-3004F
11
12
PF-013B
PF-013B
13
VX-3000PM
14
VX-3000PM
15
VX-3000CT
16
VX-3000CT
17
18
VX-3008F19
20
21
VX-3008F22
23
PF-013B24
25
26
VX-3016F
27
28
29
VX-3016F
30
31
PF-013B
32
VX-3000DS
VX-3000DS
33
34
35
36
37
PF-013B
38
39
40
PF-013B
PF-013B
41
PF-013B
Rack
Supporting
runner
Supporting
runner
Supporting
runner
Supporting
runner
Supporting
runner
(Example)
