Chapter 2 NOMENCLATURE AND FUNCTIONS

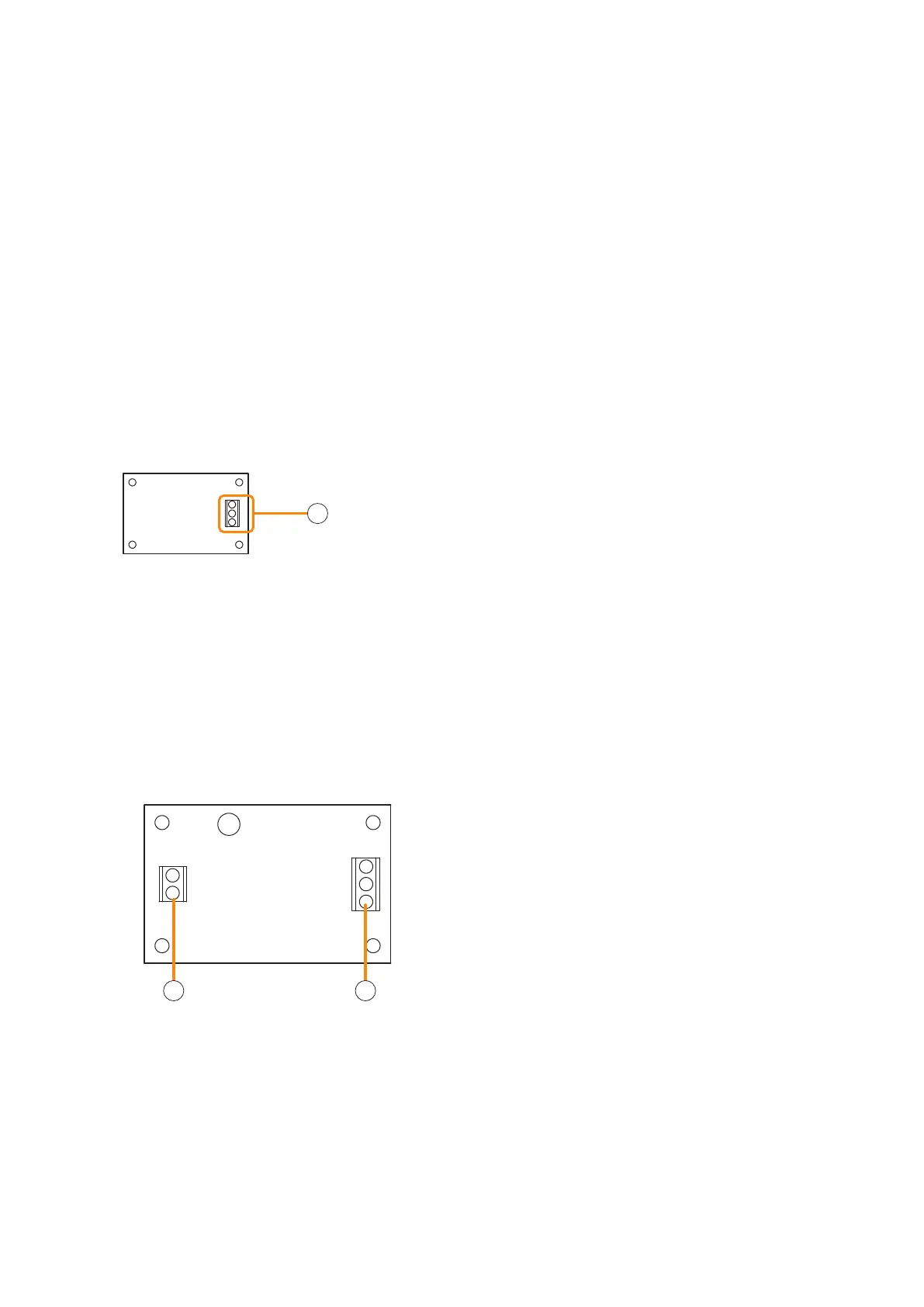

12. SX-200EL END OF LINE UNIT
Connected at the end of speaker line, the SX-200EL will detect abnormalities such as short-circuit, open-circuit,
and ground fault of a speaker line.
Notes
• The SX-200EL is designed for exclusive use with the VX-3004F.
• The SX-200EL is sold only in Europe.
13. VM-300SV END OF LINE UNIT
Speaker line failure can be detected when an EOL unit is connected between the speaker line end and the
control input terminal of the VX-3008F and VX-3016F.
Note
The VM-300SV is designed for exclusive use with the VX-3008F and VX-3016F.
H
C
E
1
1. Speaker line connection terminal
Connect the EOL unit to the end of the speakerline.
Be sure to connect the speaker's shield cable to
the E terminal of EOL unit, and the other end of
the cable to the E terminal of the VX-3004F unit's
speaker output terminal.
1. Control line connection screw terminal (CN 2)
Connect to the VX-3008F/3016F unit's control
input terminal.
2. Speaker line connection screw terminal (CN 1)
Connect to the speaker line end.
G
C
CN2
CN1
H
C
E
1
2
21. RM link connector
Used to connect an VX-3000F via a STP Category
5 cable.
22. Wall mounting bracket mounting holes
Used when installing the RM-500 on the wall
in conjunction with the optional wall mounting
bracket.
(See p. 3-50 "Hanging the RM-500 on the wall.")
23.Wiringcablexingholes
Used to bind the wiring cables.
(See p. 3-58 "Connecting the Cable to the Push-
in Terminal Block.")
