T
opcon Europe Medical BV
Instruction Manual CC-100XP/ CV
-5000PC
31/42

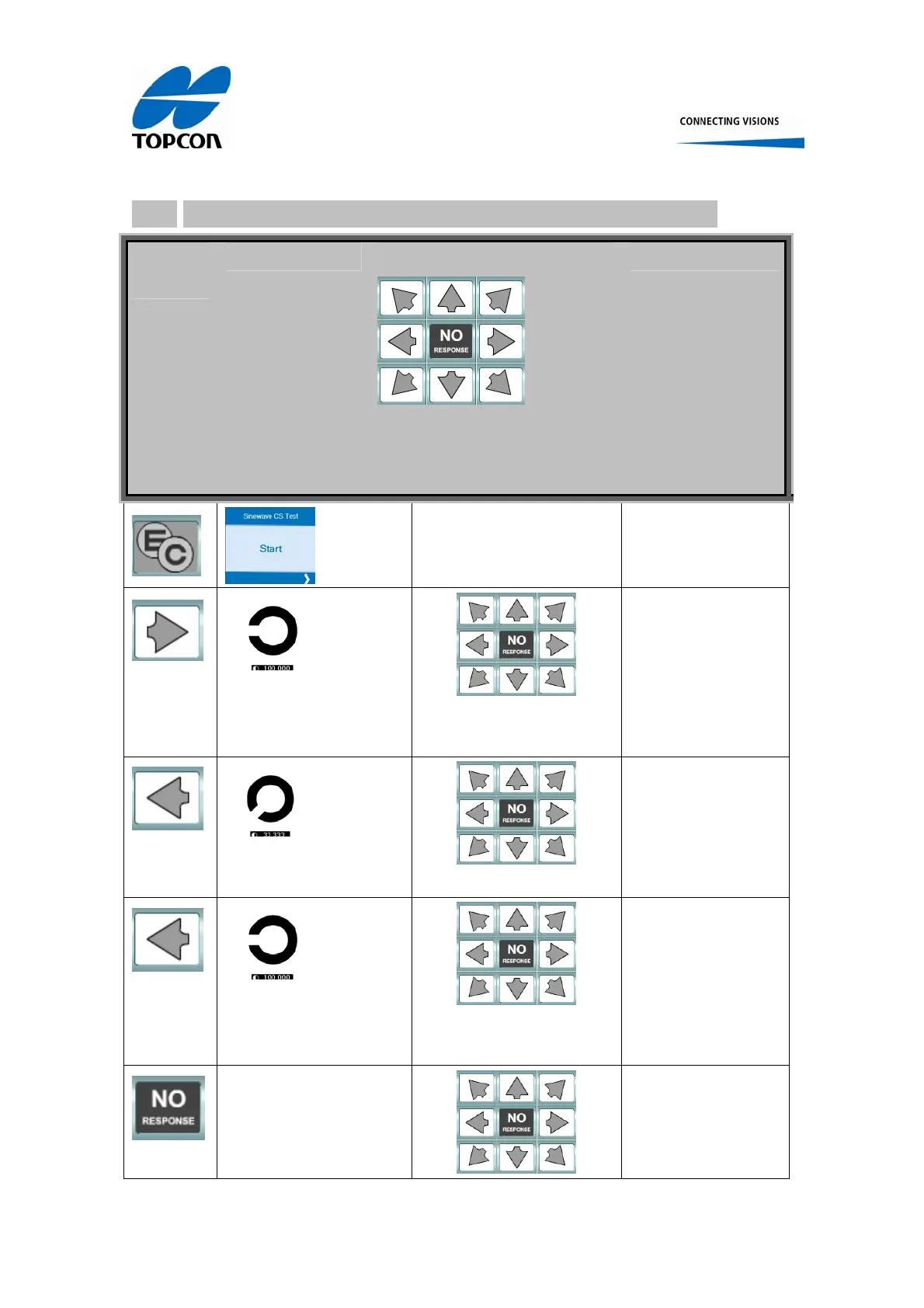

10.7
Operation of the Contrast Sensitivity T
est sequence
Button to
press
Large Bitmap
Patient response buttons
Either of these 10 buttons can
be pressed after the p
atient’s
response
Next S
tep
Direction is random
When patient
response is correct:
next level. When
incorrect: different
chart at same
contrast level
Correct
response
Next contrast level
Direction is random
When patient
response is correct:
next level. When
incorrect: previous
level
Incorrect
response
Previous contrast level
Direction is random
When patient
response is correct:
next level. When
incorrect: different
chart at same
contrast level
When contrast level =
100.00; same level next
chart
When contrast level <
30
32
Table of Contents
Default Chapter
2
Table of Contents
2
1 Setting up the Single Devices
6
2 Setting up the System
6
3 General Remarks on Operating CV-5000PC to Control CC-100XP
7
4 CV-5000PC Operation Window Layout
8
Figure 1, CV-5000PC Operation Window Layout
8
6 Description of the Single Button Functionalities Within the REFRACTION Tab Page.
9
5 Operation in the REFRACTION Tab Page
9
Selecting a Standard Optotype
9
Two Buttons Are Available to Select Standard Optotypes
9
Figure 2, Refraction Tab Page
9
Figure 3, Standard Optotype Selection
9
Selecting a Visual Acuity (VA) Chart
10
Buttons Are Available to Select the Desired Visual Acuity for each Selected Standard Optotypes (See Chapter 1.1)
10
How to Step through the Different VA Charts
10
To Step through the Different VA Charts the Following Buttons Can be Used
10
Figure 4, Standard Optotype Selection
10
Figure 5, Chart Changing
10
Selecting Other VA Tests
11
To Select ETDRS Charts
11
How to Toggle between the Different ETDRS Charts
11
To Select Half Clock Fan or Multiple Cross Chart
11
To Select the Astigmatism Dot Chart
11
Figure 6, ETDRS Chart Selection
11
Figure 7, ETDRS Toggling
11
Figure 8, Astigmatism Test Selection
11
Figure 9, Astigmatism Dot Chart
11
To Select the Monocular Red/Green Chart
12
Other Button Functionalities
12
Figure 10, Monocular Red/Green
12
Figure 11, Other Buttons in Refraction Tab Page
12
Masking Functions
13
Figure 12, Horizontal Mask CV-5000PC Operation Window
13
Figure 13, Horizontal Mask Movement CV-5000PC Operation Window
13
Figure 14, Vertical Mask CV-5000PC Operation Window
14
Figure 15, Vertical Mask Movement CV-5000PC Operation Window
14
Figure 16, Vertical Mask up and down Movement in CV-5000PC Operation Window
14
Figure 17, Single Mask Selection by CV-5000PC Operation Windowkb-50 Touch Panel
15
Figure 18, Single Mask Movement in CV-5000PC Operation Window
15
Figure 19, Moving the Single Mask Left and Right by CV-5000PC Operation Window
15
Figure 20, Red / Green Mask Setting Button in CV-5000PC Operation Window
16
7 Operation in the POLARIZATION Tab Page
17
Figure 21, Polarization Tab Page
17
8 Description of the Single Button Functionalities Within the POLARIZATION Tab Page
18
Selecting a Standard Polarization Test
18
Nineteen Buttons Are Available to Select Standard Polarization Tests
18
Inverting the Display of the Polarized Tests Within CC-100XP
19
Figure 22, Standard Polarization Chart Selection in CV-5000PC Operation Window
19
Figure 23, Polaroid Tests with Toggle Function
19
Figure 24, Toggle Buttons Right from Large Chart in CV-5000PC Operation Window
20
Figure 25, Test that Can be Inverted by Two Buttons Right from Large Chart
20
Figure 26, AUX Lens Selection in CV-5000PC Operation Window
21
Figure 27, Auxiliary Lens Selection for Polaroid Inversion in CV-5000PC VIEW Menu
21
Selecting a Red-Green Test
22
Figure 28, Tests that Can be Inverted by Auxiliary Lens Change
22
Figure 29, Worth Four Dots Test
22
Figure 34, Schober Chart
22
Figure 35, Schober Chart
22
9 Operation in the CONTRAST Tab Page
23
Figure 30, Contrast Tab Page
23
10 Description of the Single Button Functionalities Within the CONTRAST Tab Page
24
Figure 31, Single Button Functionality Within Contrast Tab Page
25
The Spatial Frequency Contrast Sensitivity Test Procedure
26
Changing the Settings of the Contrast Sensitivity Test
26
Changing the Settings for the Spatial Frequency Contrast Sensitivity Test
27
Operation of the Spatial Frequency Contrast Sensitivity Test
29
The Contrast Sensitivity Test Procedure
30
Changing the Settings of the Contrast Sensitivity Test
30
Operation of the Contrast Sensitivity Test Sequence
31
11 Operation in the COLOUR Tab Page
33
12 Description of the Single Button Functionalities Within the COLOUR Tab Page
34
The Pseudo-Isochromatic Colour Test Procedure
36
Changing the Settings of the Pseudo-Isochromatic Colour Test
36
The Pseudo-Isochromatic Colour Test Procedure
37
13 Operation in the Chart 5 Tab Page (Near Test)
39
14 MKH Refraction Course
40
The MKH Refraction Course Procedure
40
