COMPONENT NAMES
Remote interlock connector..Connects the remote interlock switch.
Power cable

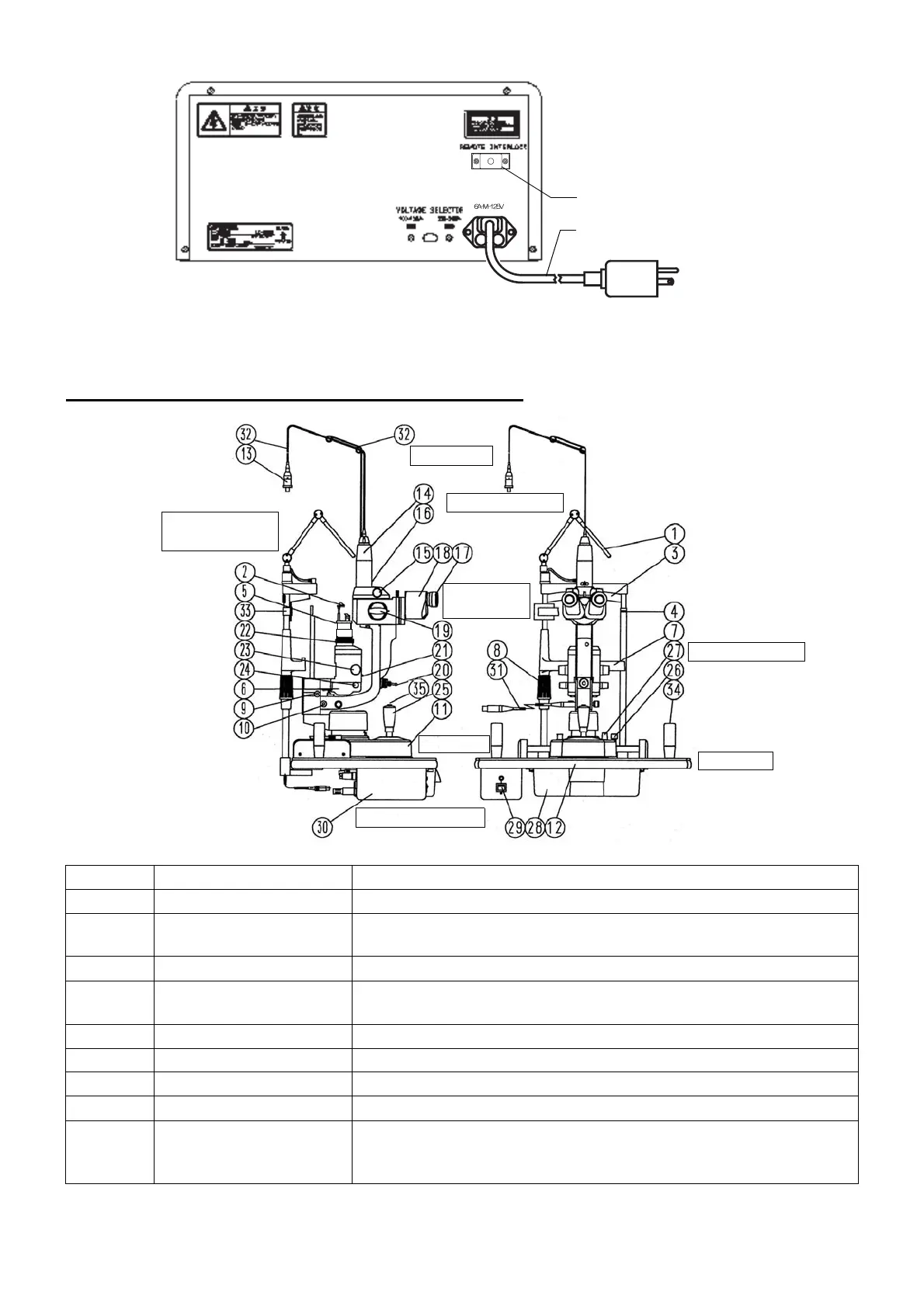

LASER SLIT LAMP SL-10L G COMPONENTS
Number Name Description
1 Fixation target
2 Illumination mirror
Is divided into upper and lower halves, and the laser beam passes
between these.
3 Forehead rest
4 Height mark
Indicates the middle height of vertical movement of horizontal opti-
cal axis of the microscope.
5 Aperture diaphragm When you wish to decrease flare, insert the aperture diaphragm.
6 Lamp house cover Is removed to change illumination lamps.
7 Chinrest
8 Chinrest vertical handle
9
Illumination arm locking
knob
Locks the illumination arm to fix it to the microscope arm, so that
the microscope unit and the illumination unit rotate horizontally in
a unit.
Remote interlock connector
Power cable
Main body
Chinrest fixation
target unit
Laser guide unit
Observation
unit
Illumination unit
Base unit
Table unit
Power supply unit
