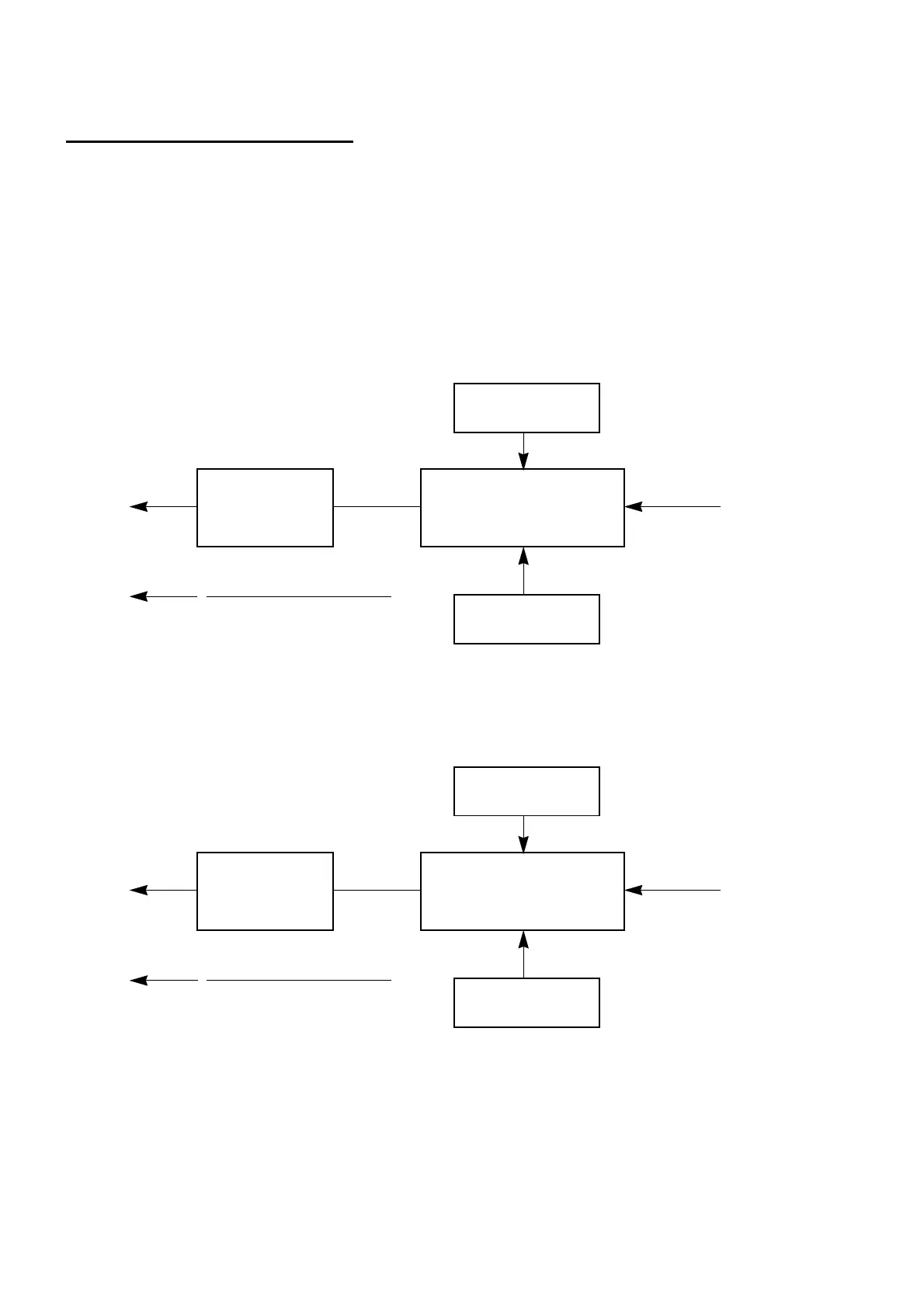

PRINCIPLE OF OPERATION
The laser beam source of this instrument uses Nd:YVO4 (oxide crystal of neodymium-doped
yttrium•vanadium) as medium. By using a semiconductor laser as excitation source and continuously
generating the natural wavelength of 1,064nm of the laser medium, half-wavelength 532nm laser
beams are emitted by arranging a KTP (nonlinear crystal) in the optical path.
The emission output is set on the front operation panel of the LC-300G, and the emission of treatment
laser beams is started/stopped by the Footswitch.
Emitted laser beams are radiated to the diseased part through the endoprobe, or guided to the slit lamp
attachment for laser photocoagulator or to the laser slit lamp by the optical fiber and then are radiated
to the diseased part.
Operation panel
Footswitch
Operation
Operation
Electric
energy
Power
supply
Radiation
Radiation
Endoprobe
Optical
fiber
LC-300G
(Laser Delivery
SL-10L G type)
Laser slit lamp
Operation panel
Footswitch
Operation
Operation
Electric
energy
Power
supply
Radiation
Radiation
Endoprobe
Optical
fiber
LC-300G
(Laser Delivery SA-1G type)
Slit lamp attach-
ment for laser
photocoagulator
